Speed Sensor: Service and Repair

Output Shaft Speed Sensor

Removal

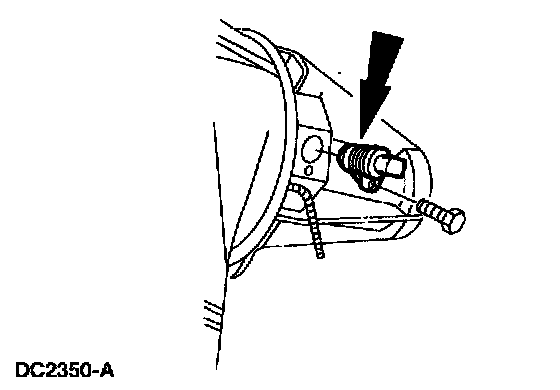

1. Remove the output shaft speed sensor connector.

2. Remove the bolt and the output shaft speed sensor.

Installation

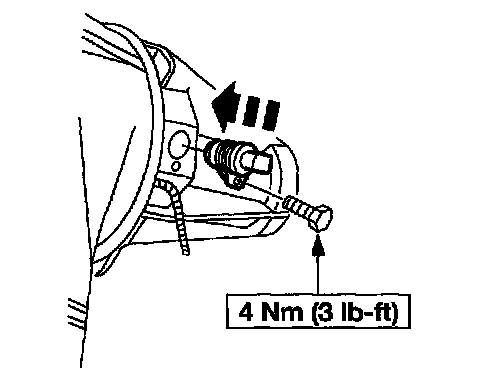

1. To install, reverse the removal procedure.
