High Pressure Sensor / Switch: Service and Repair
HIGH-PRESSURE CUTOFF SWITCHREMOVAL 1.
Position the vehicle on a hoist with the gear selector in NEUTRAL.
2.

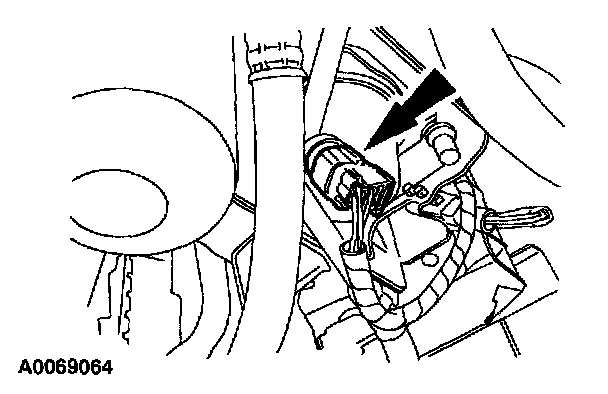

Disconnect the high-pressure cutoff switch electrical connector.
3.

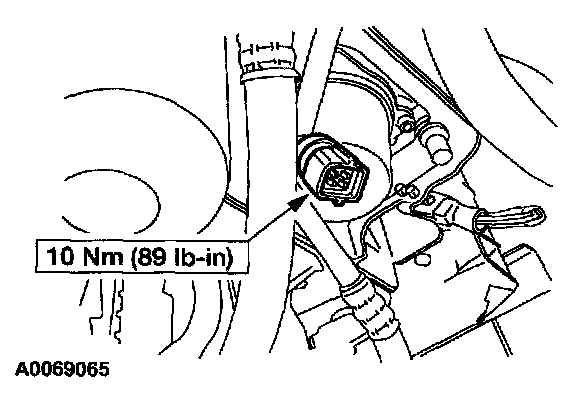

Remove the high-pressure cutoff switch.
-
Discard the O-ring seal.
INSTALLATION 1.
To install, reverse the removal procedure.
-
Install a new O-ring seal lubricated in clean PAG oil.
