Test D



PINPOINT TEST D: THE AIR CONDITIONING (A/C) IS INOPERATIVE

Test D1:

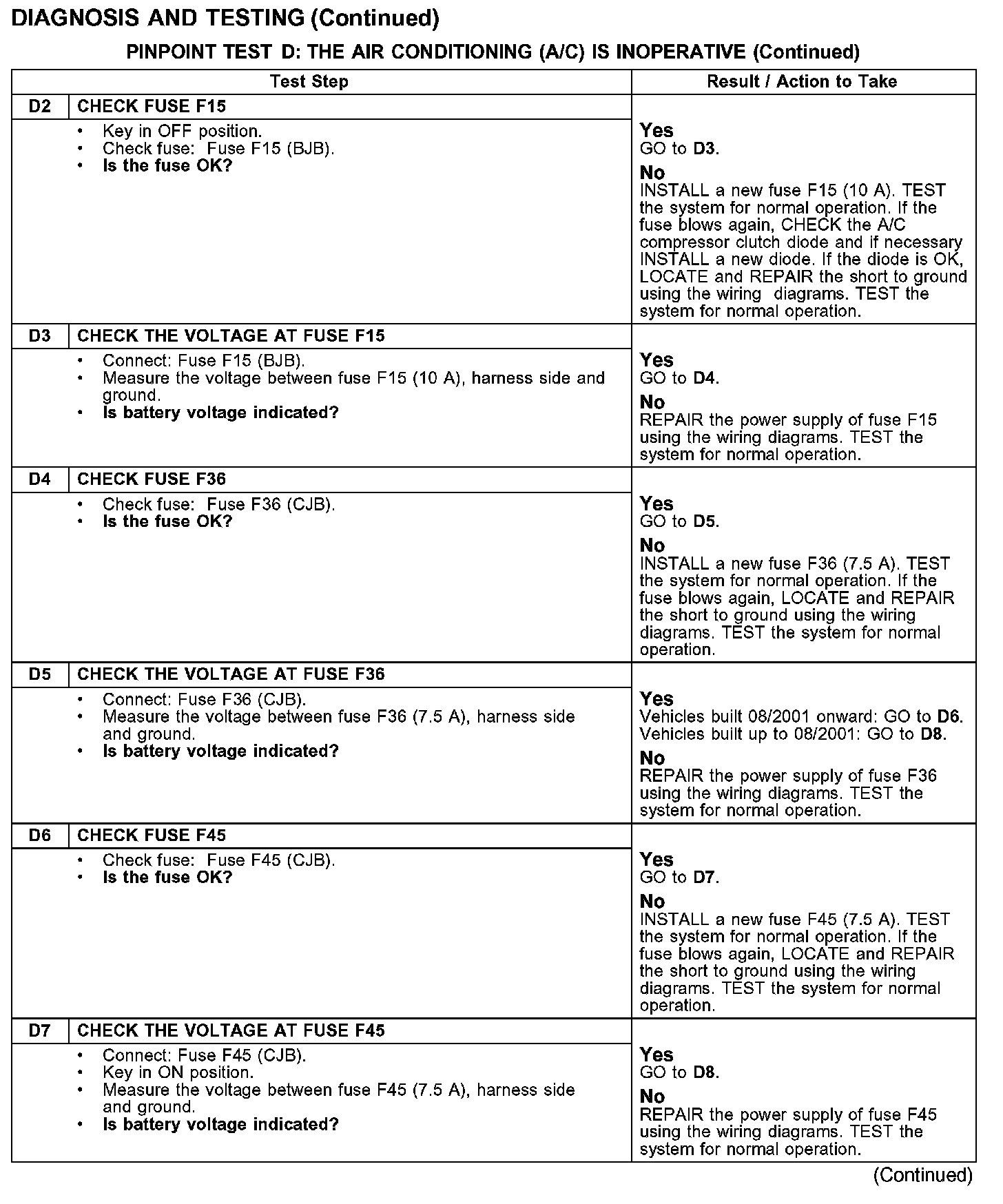

Test D2-D7:

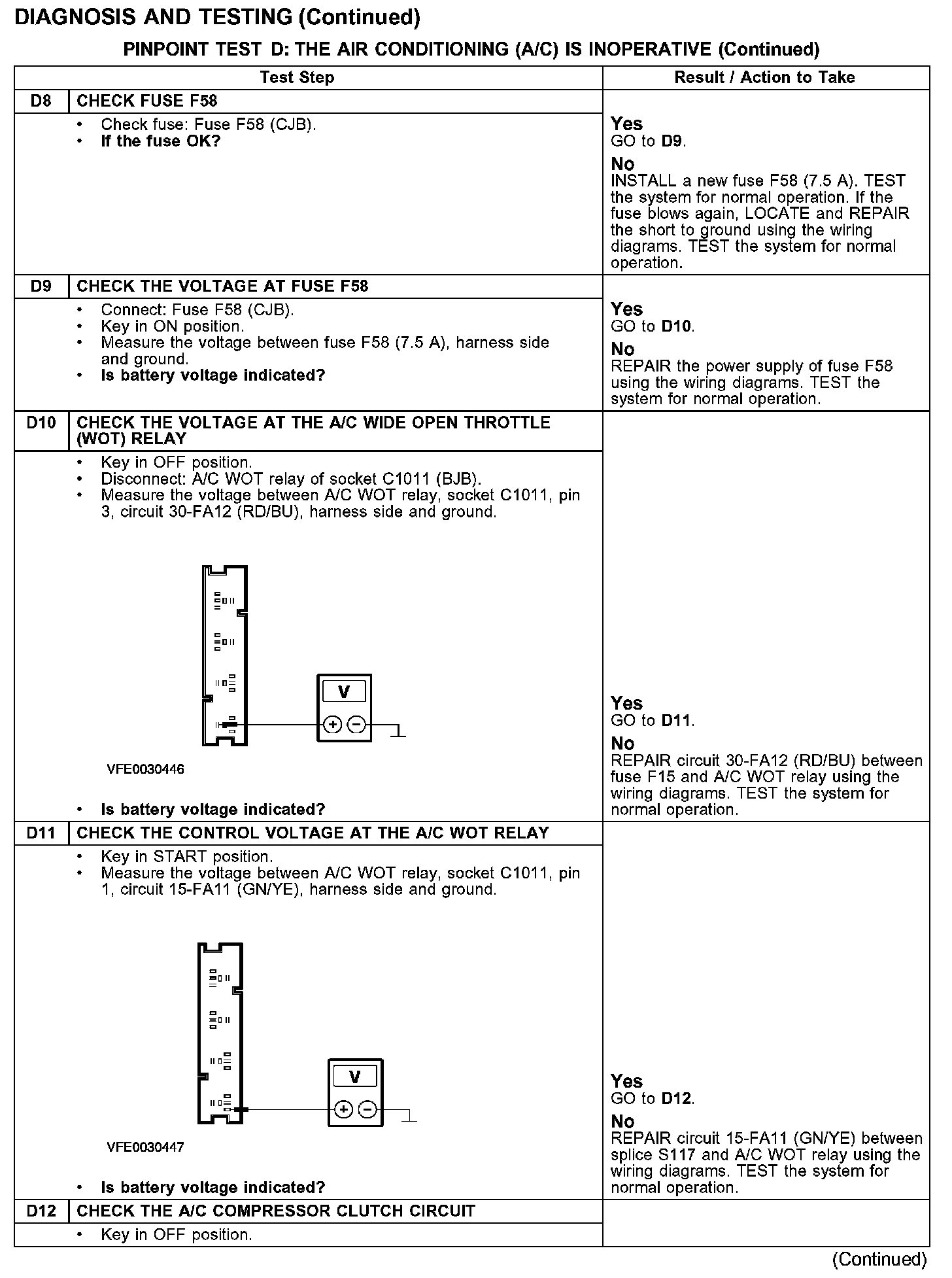

Test D8-D12:

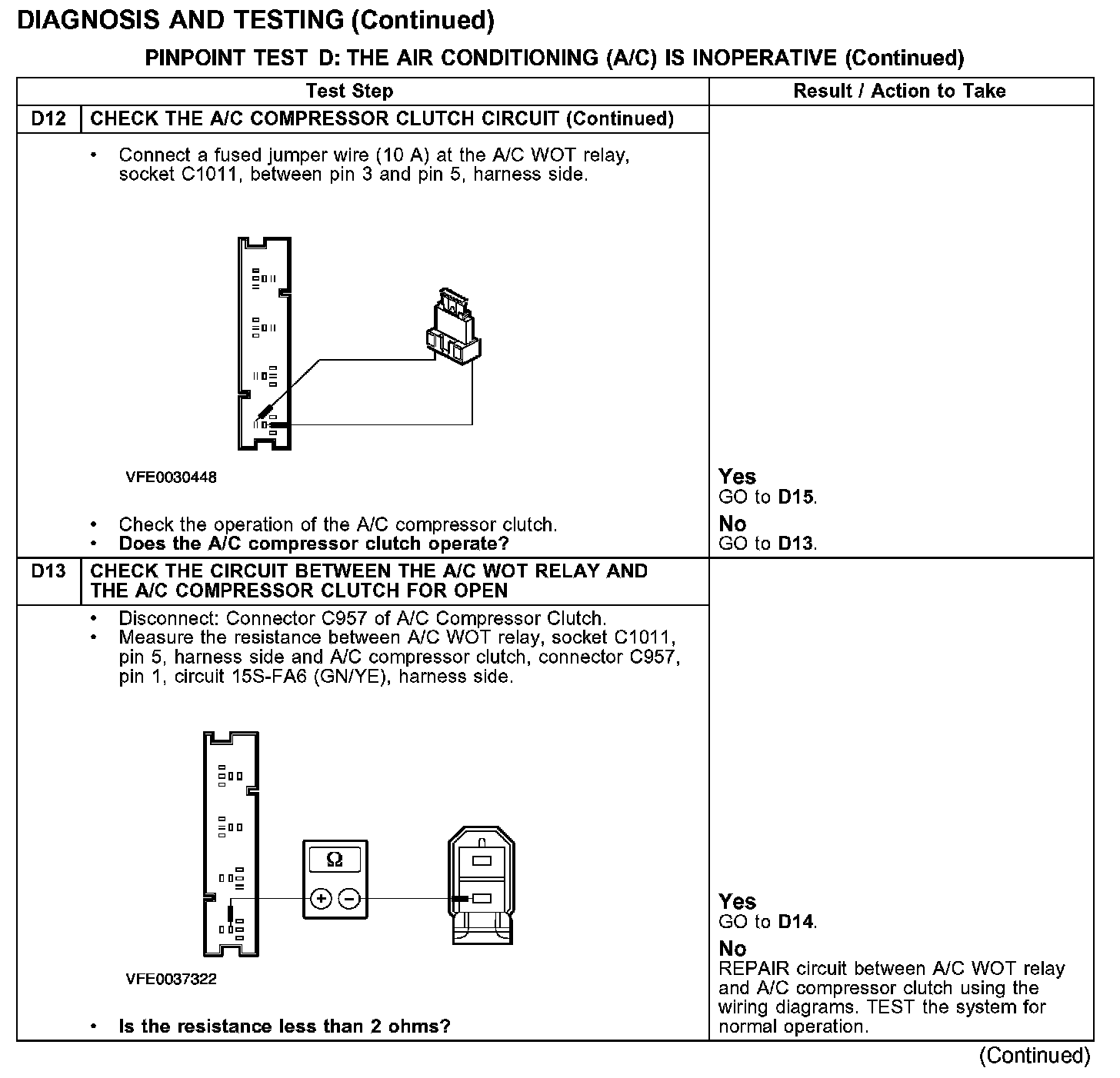

Test D12-D13:

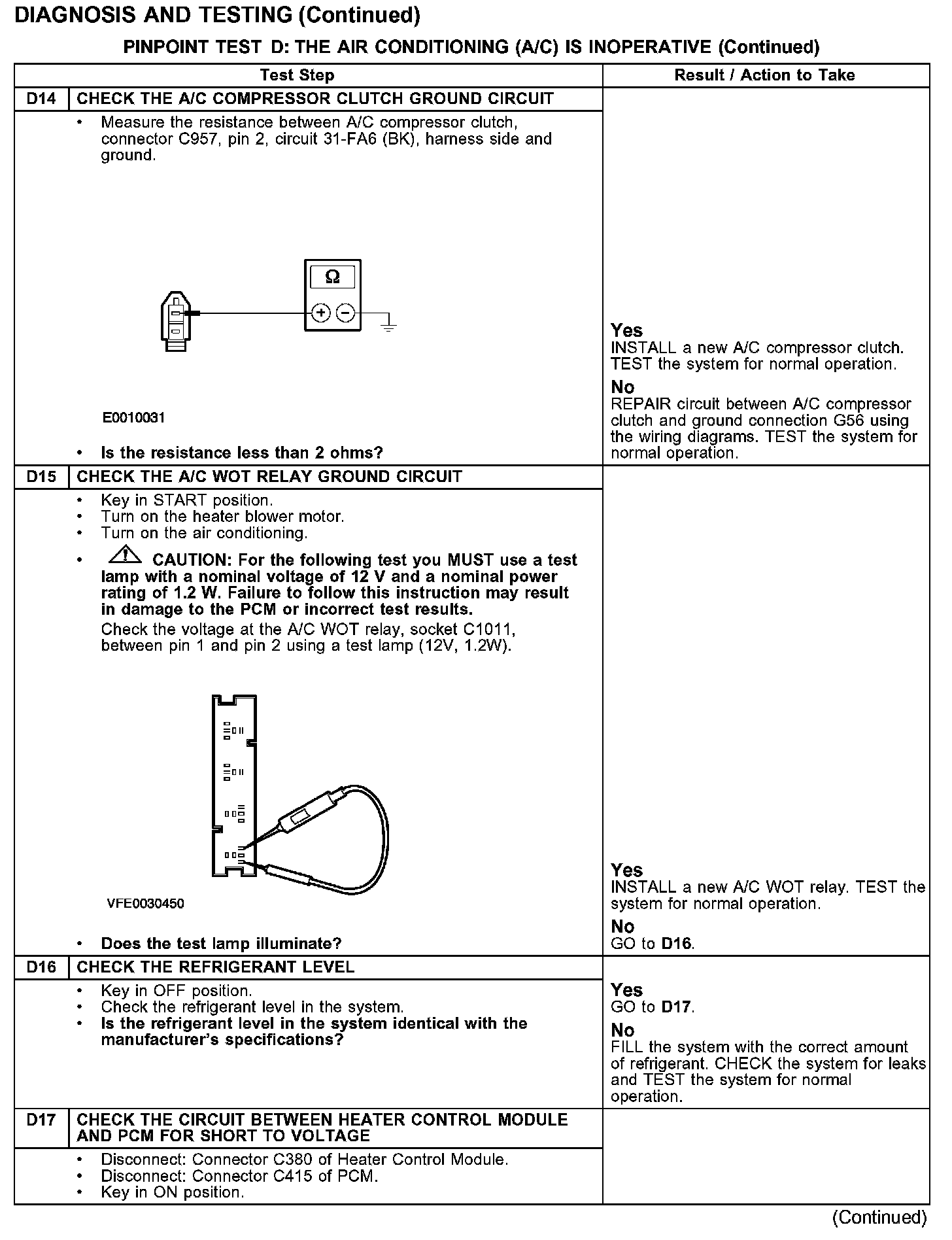

Test D14-D17:





Test D17-D19:

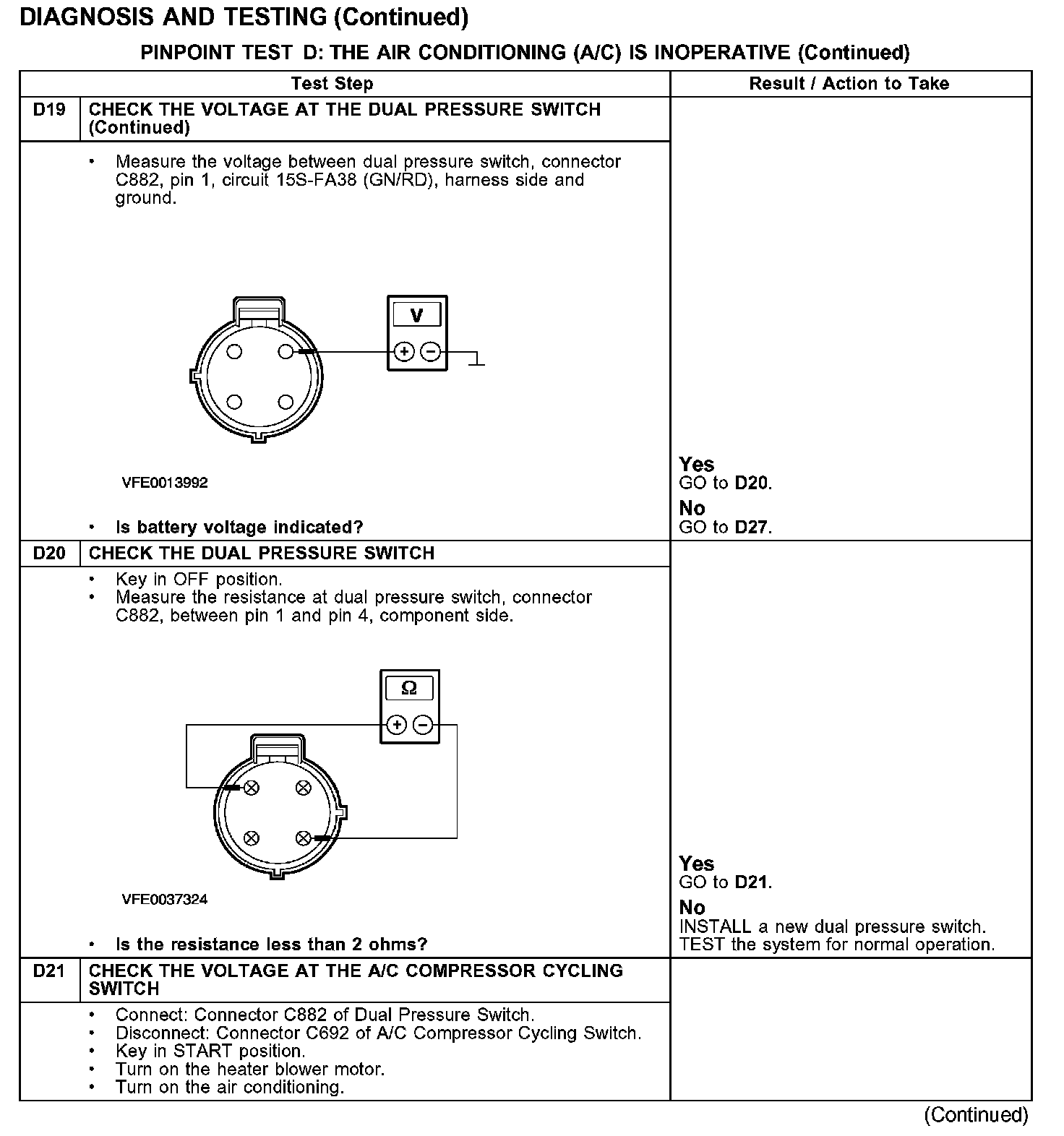

Test D19-D21:

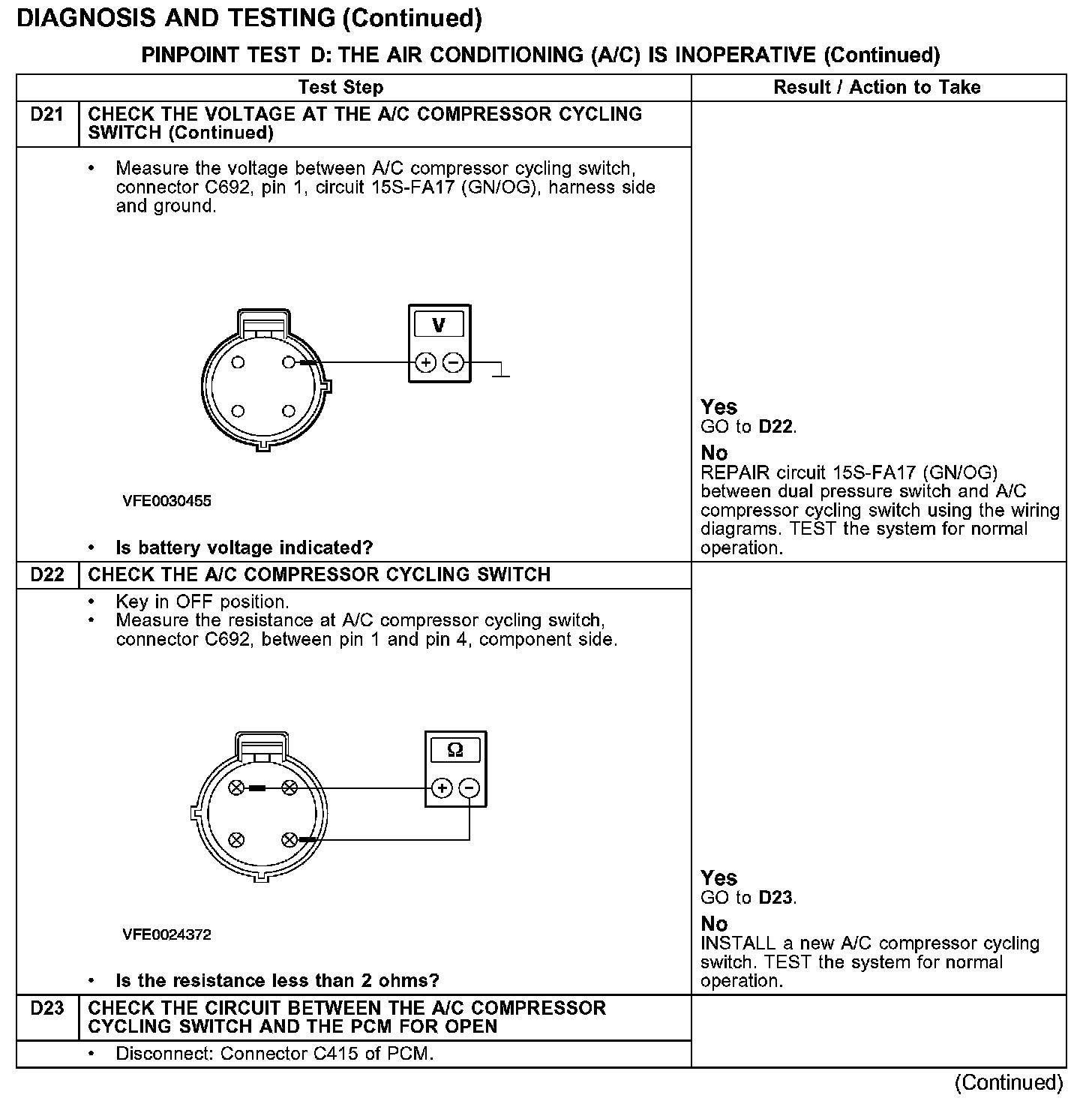

Test D21-D23:

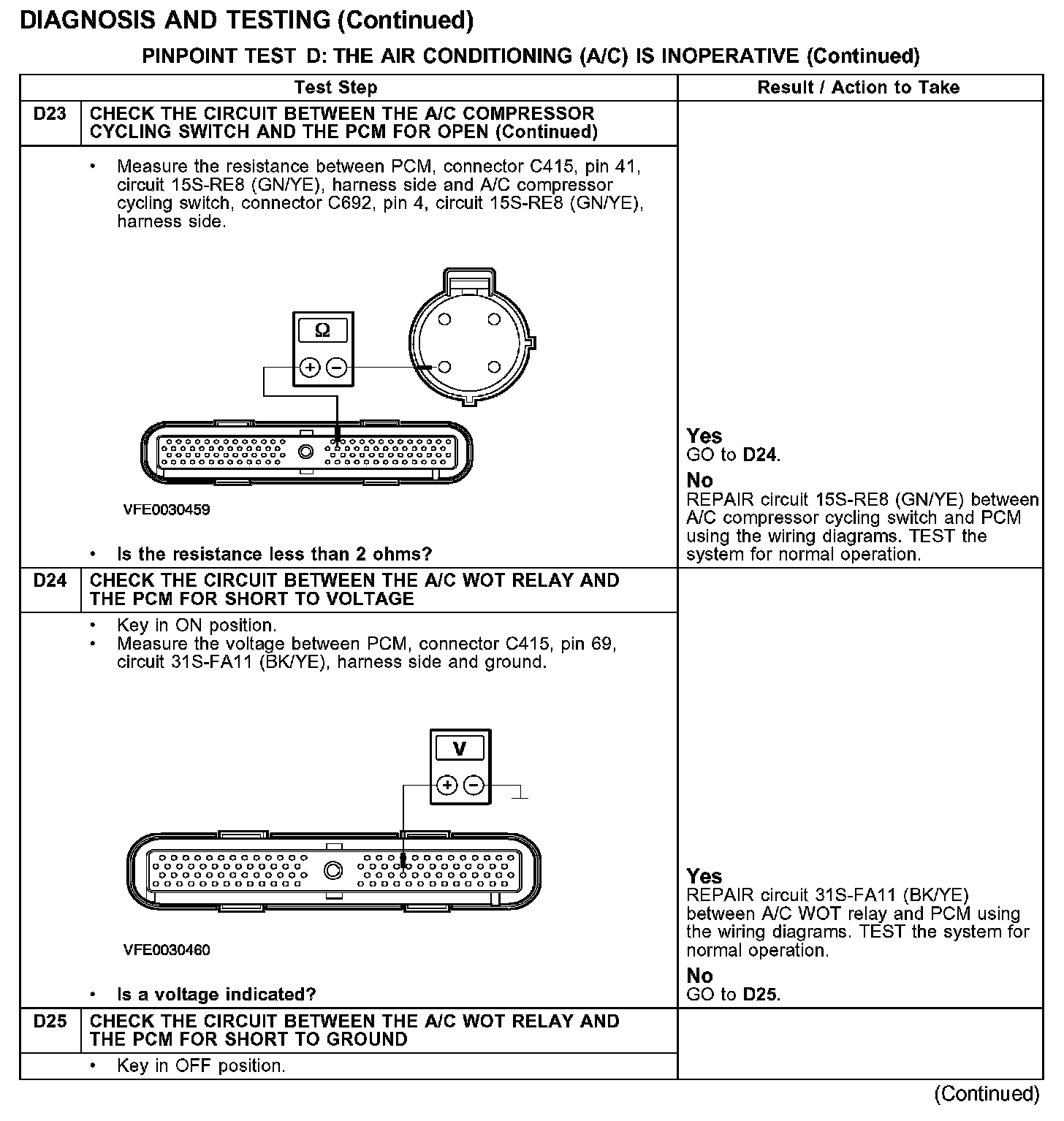

Test D23-D25:

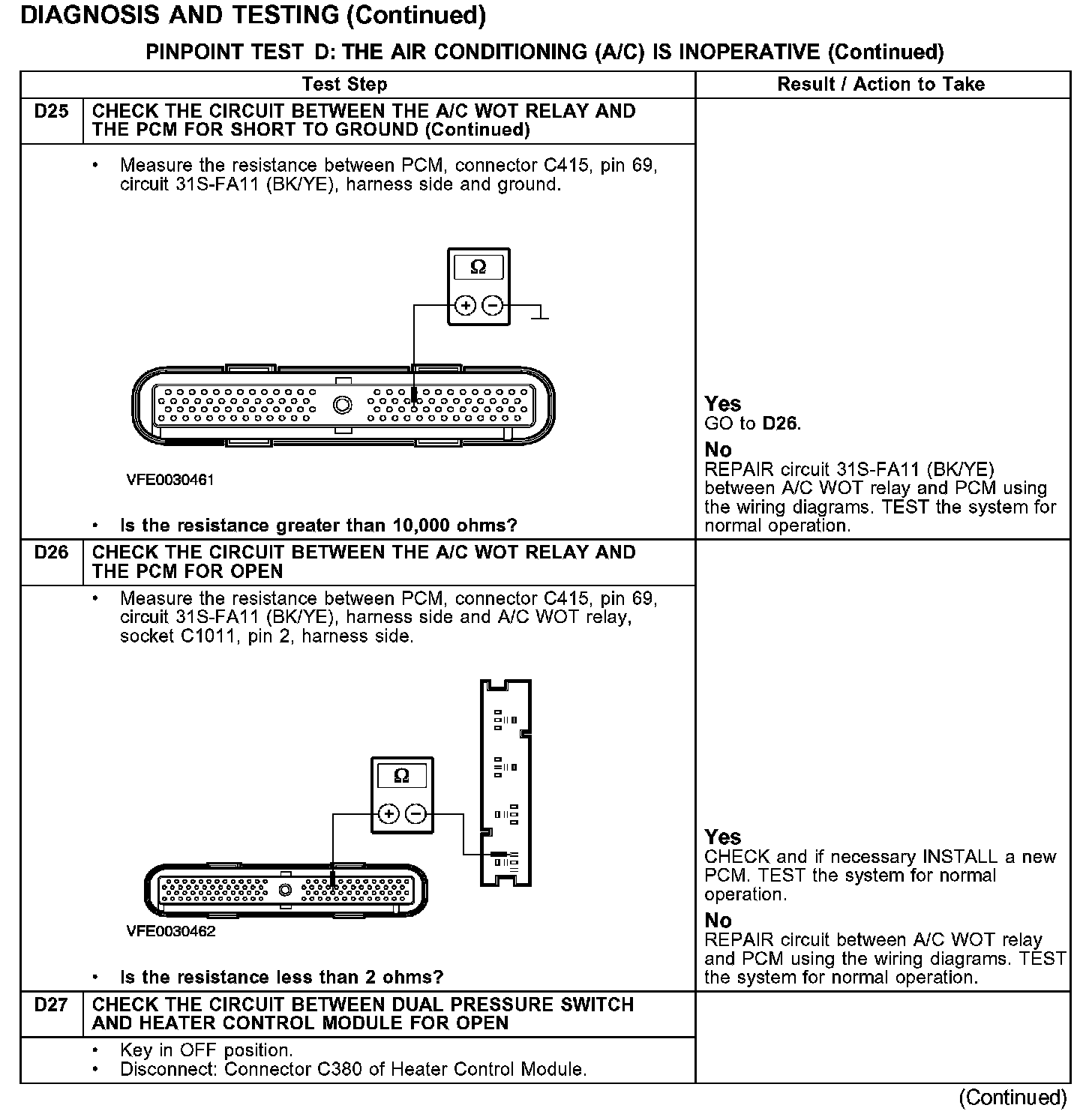

Test D25-D27:





Test D27-D29:

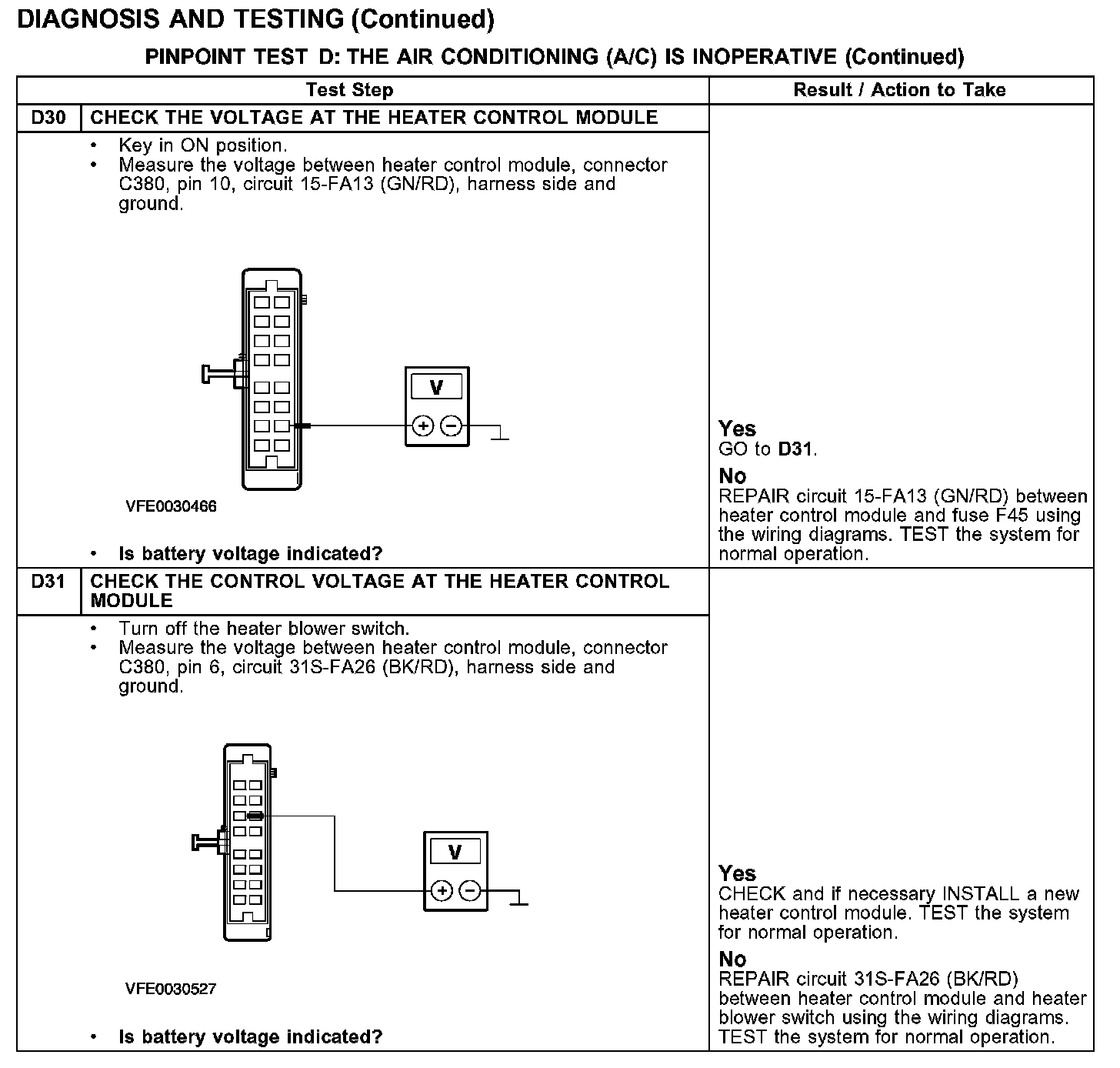

Test D30-D31:
