EGR Valve: Service and Repair
REMOVAL 1.

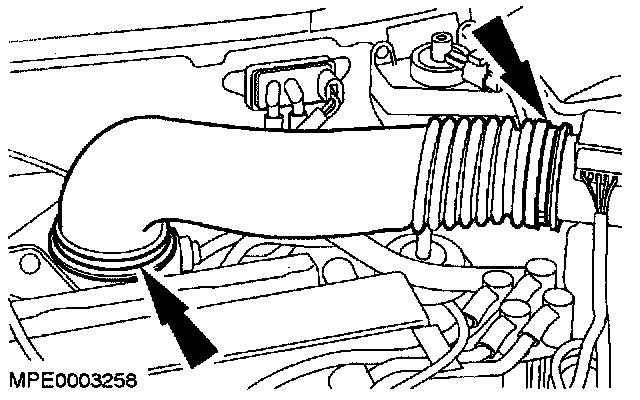

Remove the air cleaner outlet tube.
2.

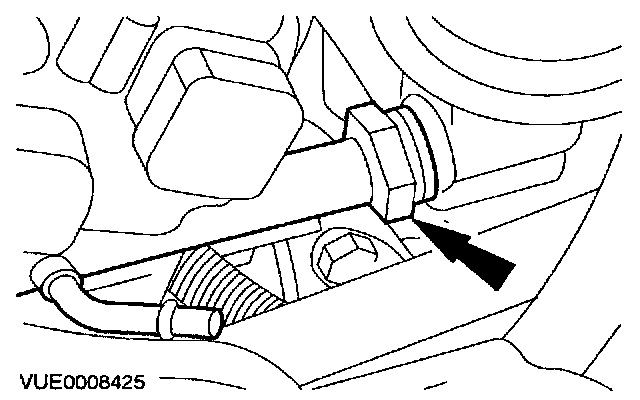

Detach the
Exhaust Gas Recirculation (EGR) tube.
3.

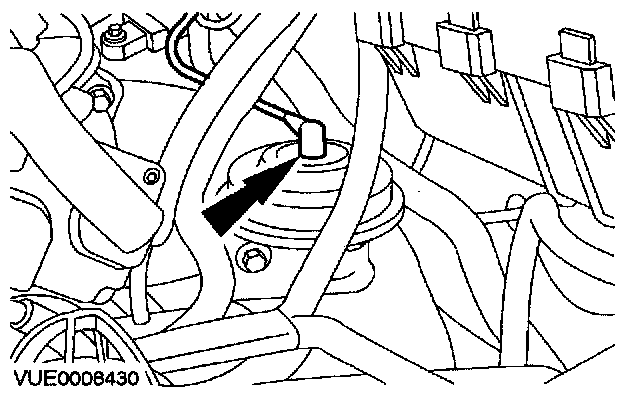

Disconnect the
EGR vacuum tube.
4.

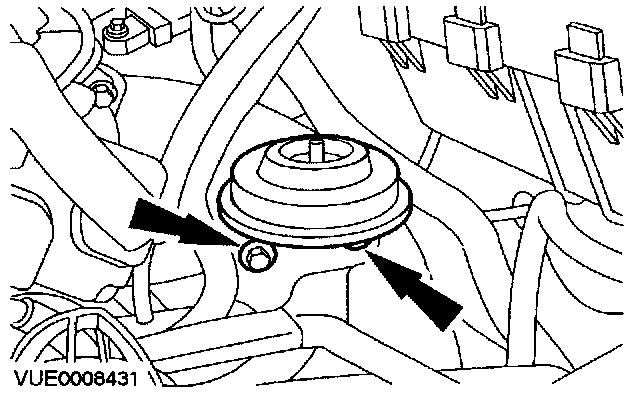

Remove the
EGR valve.
5.

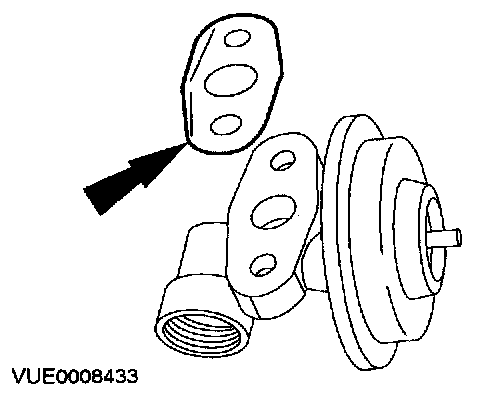

Remove and discard the EGR valve gasket.
INSTALLATION 1.

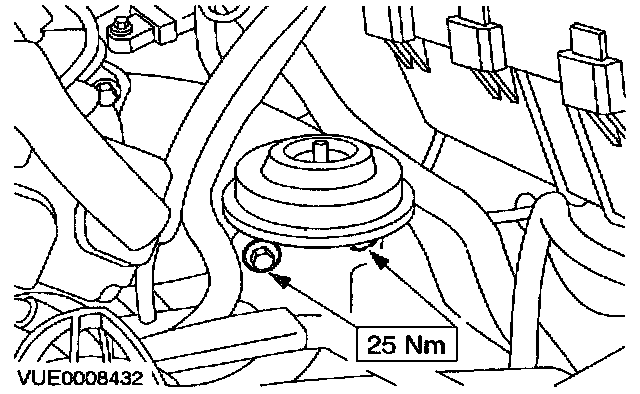

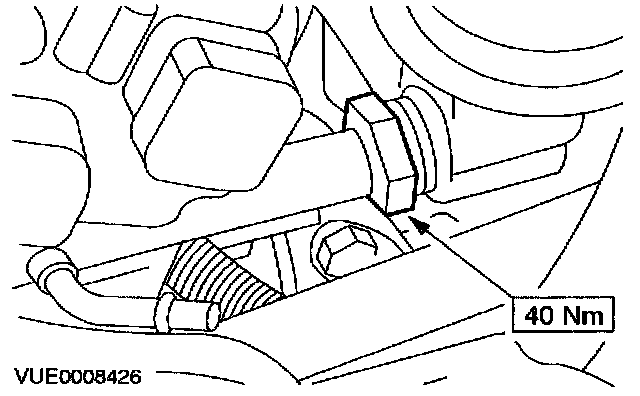

To install, reverse the removal procedure.
NOTE: ^

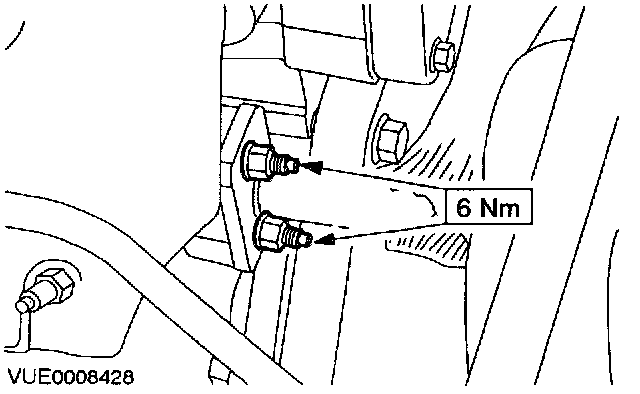

To aid installation loosen the
EGR tube bolts at the exhaust manifold.
^
Install a new EGR valve gasket.
