Ignition Coil: Service and Repair
REMOVAL 1.
Disconnect the spark plug wires from the
ignition coil.
2.
Disconnect the
ignition coil and capacitor electrical connectors.
3.

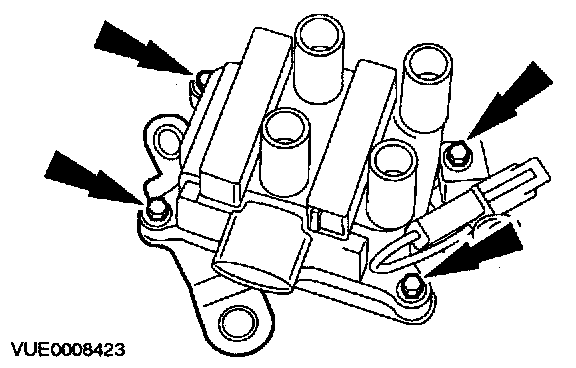

Remove the
ignition coil, capacitor and bracket.
4.
Remove the
ignition coil and capacitor from the ignition coil bracket.
INSTALLATION 1.
To install, reverse the removal procedure.
