Knock Sensor: Service and Repair
REMOVAL 1.

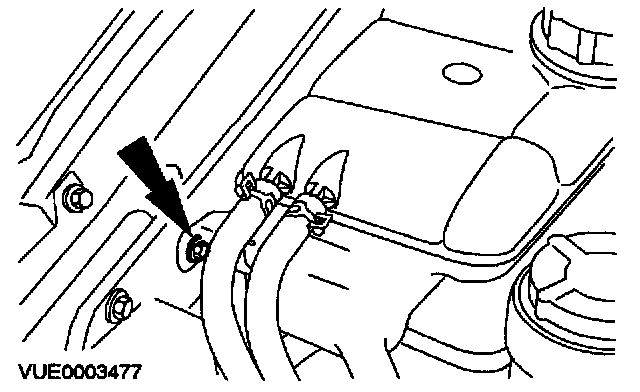

Remove the coolant expansion tank bolt.
2.

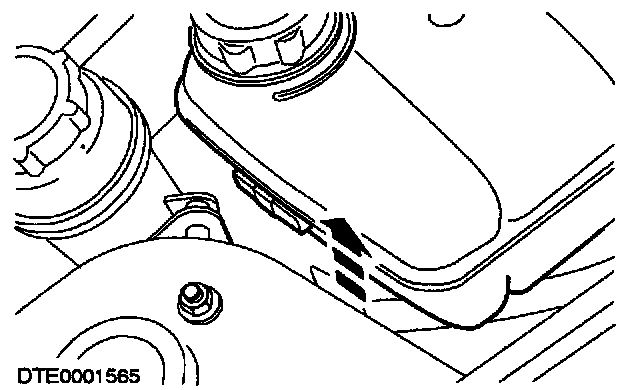

Detach the coolant expansion tank from the clip and secure to one side.
3.

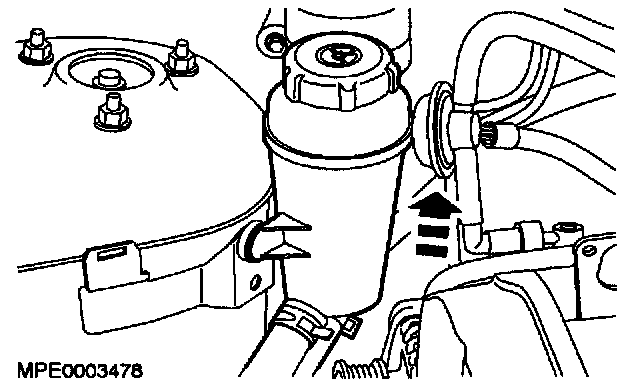

Detach and secure the power steering reservoir to one side.
4.

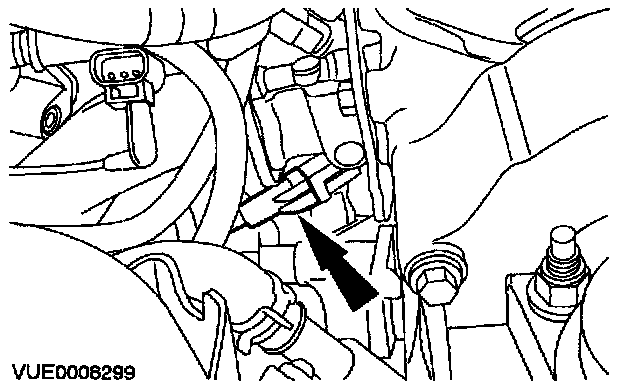

Disconnect the
Knock Sensor (KS) electrical connector.
5.

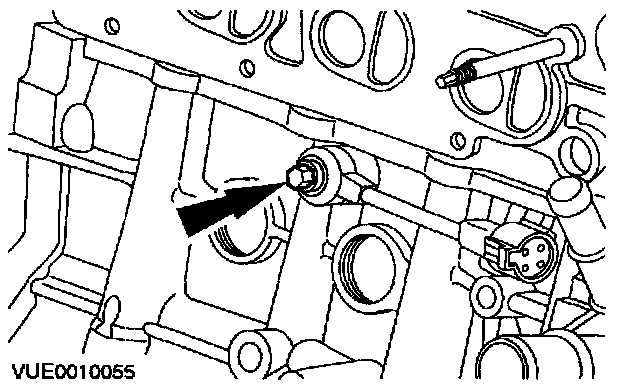

Remove the
KS (exhaust manifold removed for clarity).
INSTALLATION 1.
To install, reverse the removal procedure.
