Flywheel: Service and Repair
Flywheel Removal 1.
Remove the transaxle.
2.
Remove the clutch.
3.
Remove the
flywheel.
^

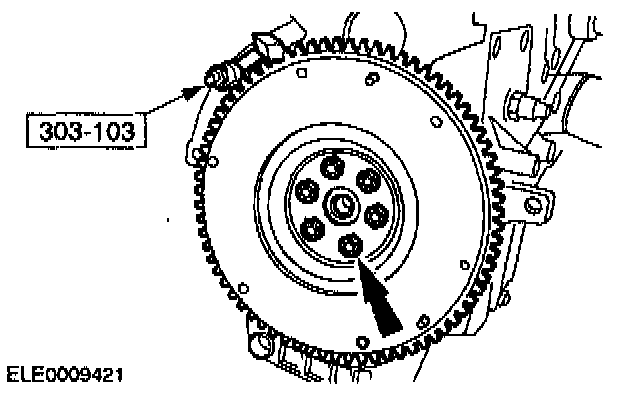

Install
Flywheel Holding Tool 303-103 (T74P-6375-A).
^
Remove the flywheel bolts.
Installation 1.
Install the
flywheel.
^
Tighten the bolts finger tight.
^
Install special tool 303-103.
^

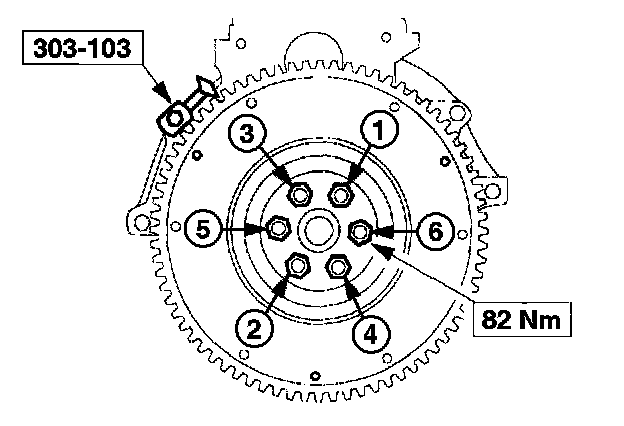

Tighten the bolts in the sequence shown to
82 Nm (61 ft. lbs.).
2.
Install the clutch.
3.
Install the transaxle.
