Vehicles With Automatic Transaxle

FLOOR CONSOLE - VEHICLES WITH AUTOMATIC TRANSAXLE

REMOVAL

All vehicles
1. Move the automatic transaxle selector lever to the "N" position.

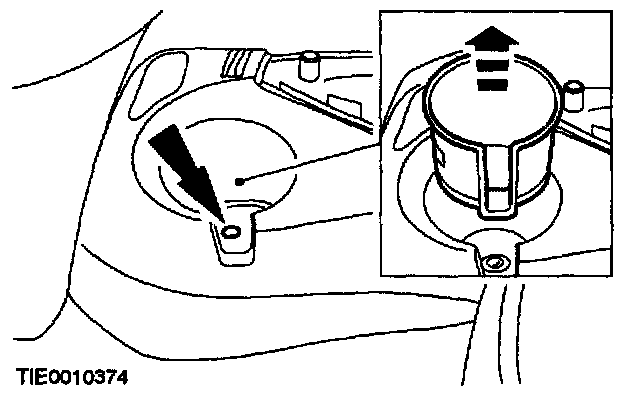

2. Remove the floor console front retaining screw on each side.
- Remove the cup holder.

Vehicles with traction control

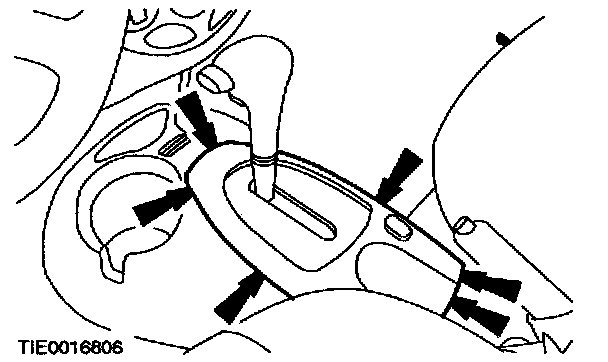

3. Detach the automatic transaxle selector lever trim panel from the floor console.
- Detach the retaining clips.







4. Remove the automatic transaxle selector lever trim panel.

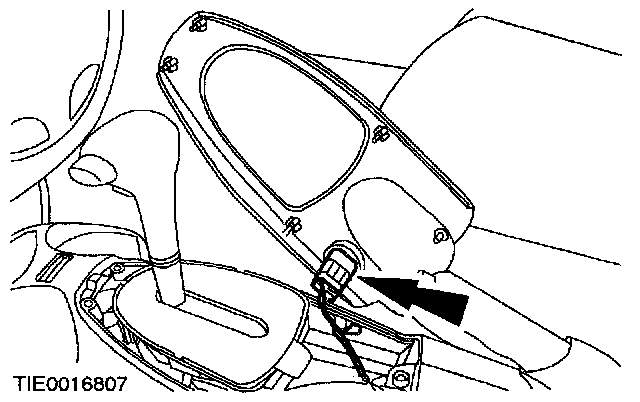

- Disconnect the traction control electrical connector.

Vehicles with center armrest







5. Detach the rear of the floor console from the floor panel bracket.

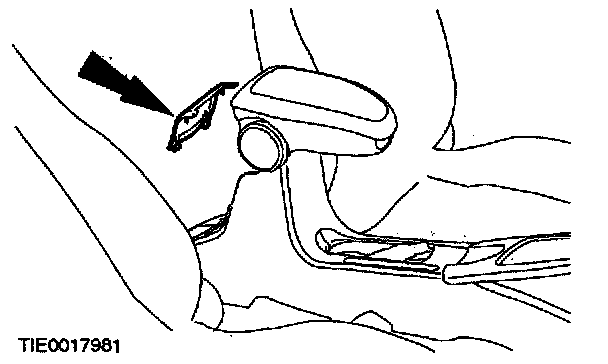

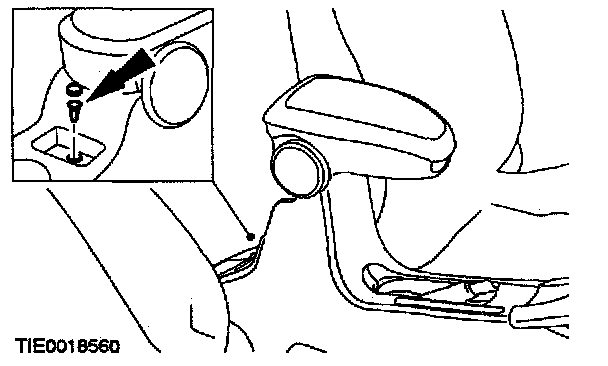

6. Remove the armrest trim panel.







7. Remove the armrest.
- Remove the retaining screws.

Vehicles without center armrest







8. Remove the insert from the rear of the floor console.

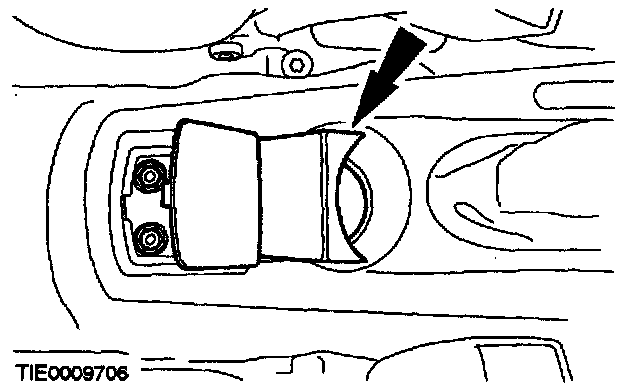

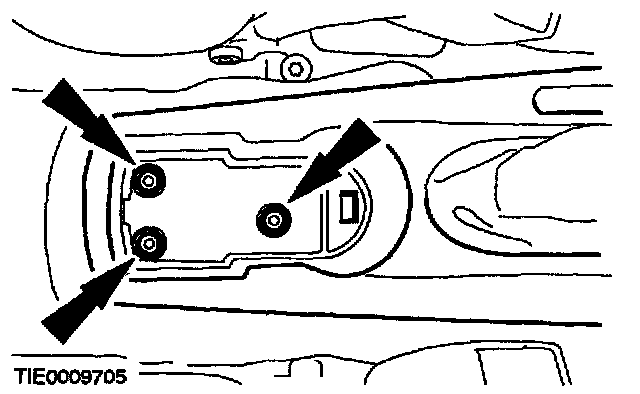

9. Remove the floor console rear retaining nuts.

All vehicles

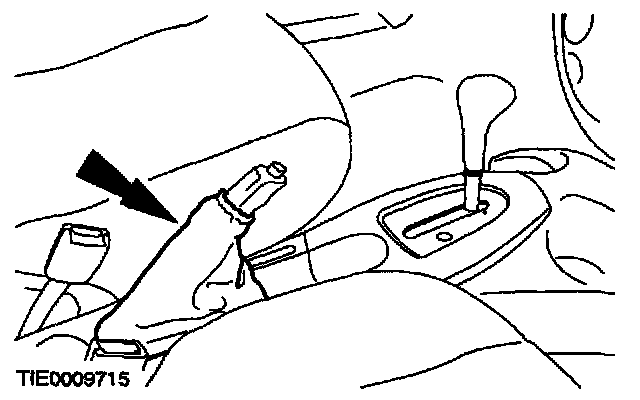

10. Fully raise the parking brake lever and detach the boot.

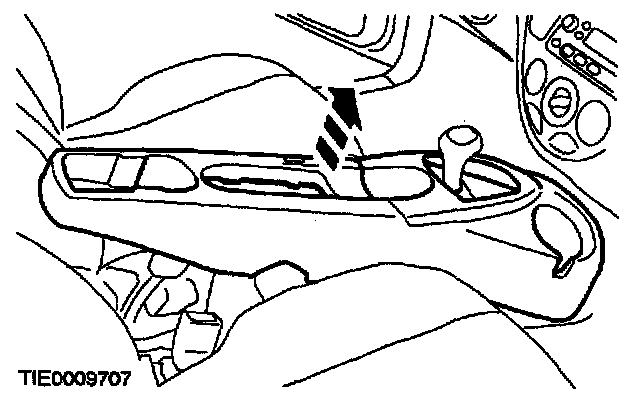

11. Remove the floor console.
12. Move the automatic transaxle selector lever to the "P" position.

INSTALLATION
1. To install, reverse the removal procedure.
