LIFTGATE LOCK CYLINDER - WAGON

REMOVAL







1. Remove the liftgate trim panel.

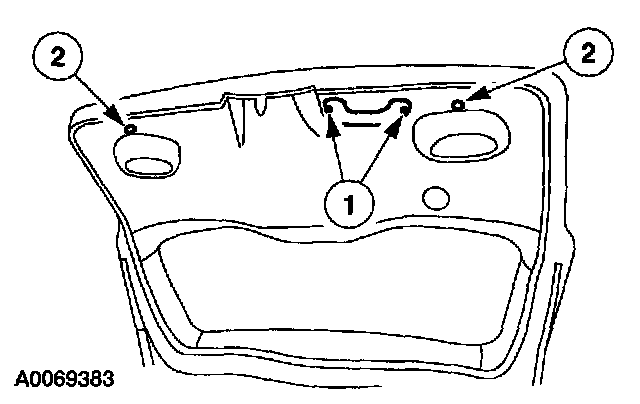

1 Remove the pull handle covers, screws and handles.
2 Remove the liftgate trim panel bolt covers and screws.

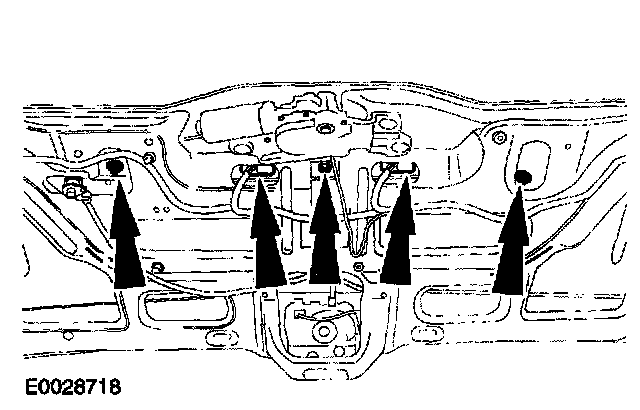

2. Remove the exterior trim moulding and license plate lamps.
- Remove the retaining screws.
- Disconnect the license plate lamp electrical connectors.

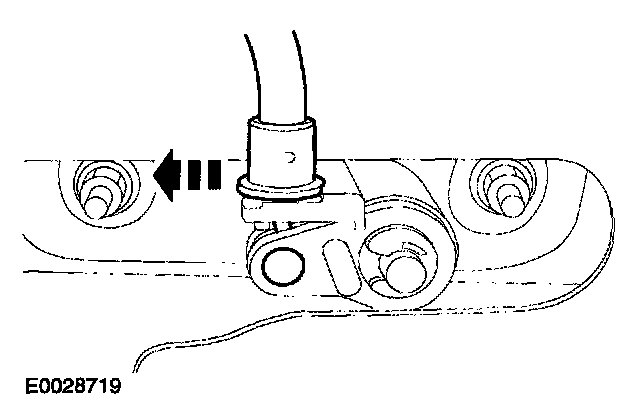

3. Disconnect the liftgate latch cable from the liftgate lock assembly.

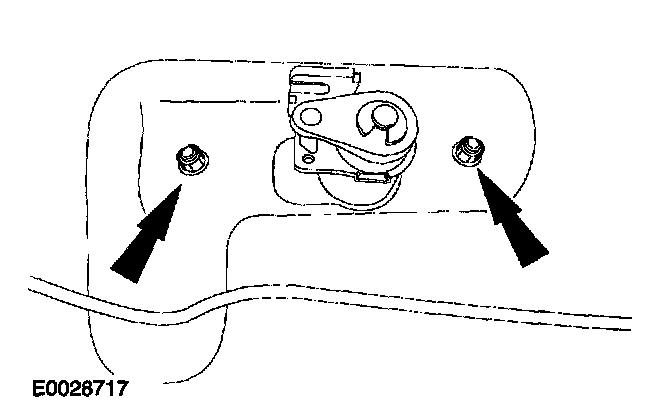

4. Remove the liftgate lock assembly.

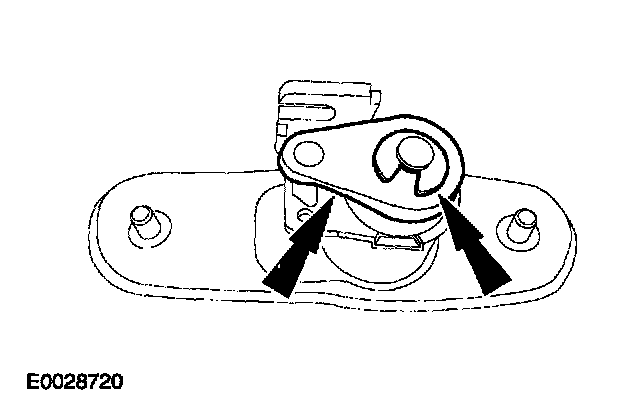

5. Remove the liftgate latch cable actuator.
- Remove the retaining clip.

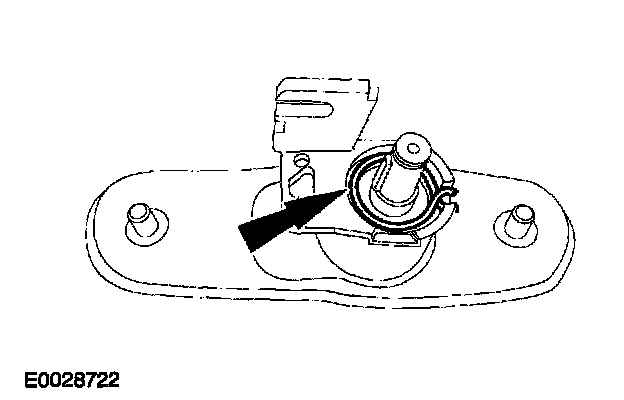

6. Remove the liftgate lock cylinder spacer.







7. Remove the liftgate lock cylinder spring.

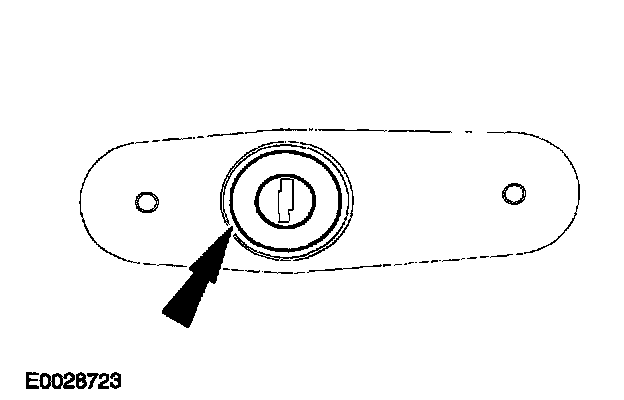

8. Remove the foreign matter excluder.
9. Insert the key and remove the liftgate lock cylinder.

INSTALLATION
1. To install, reverse the removal procedure.
