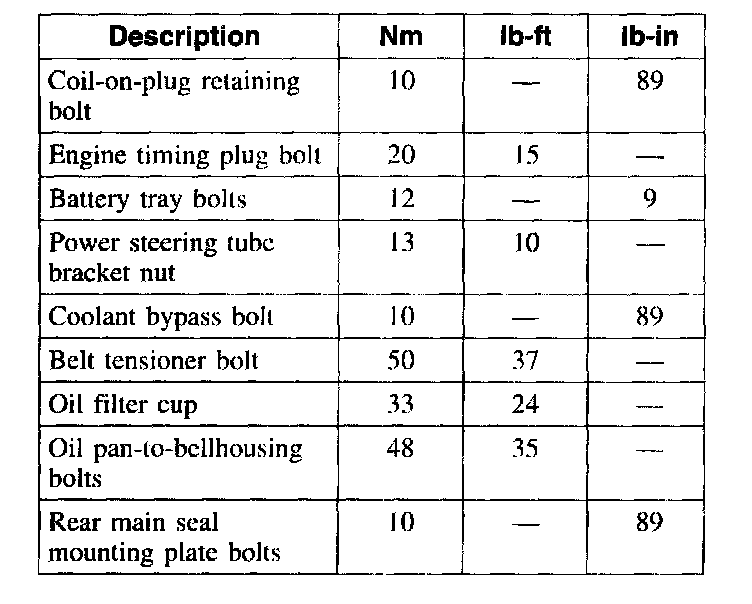

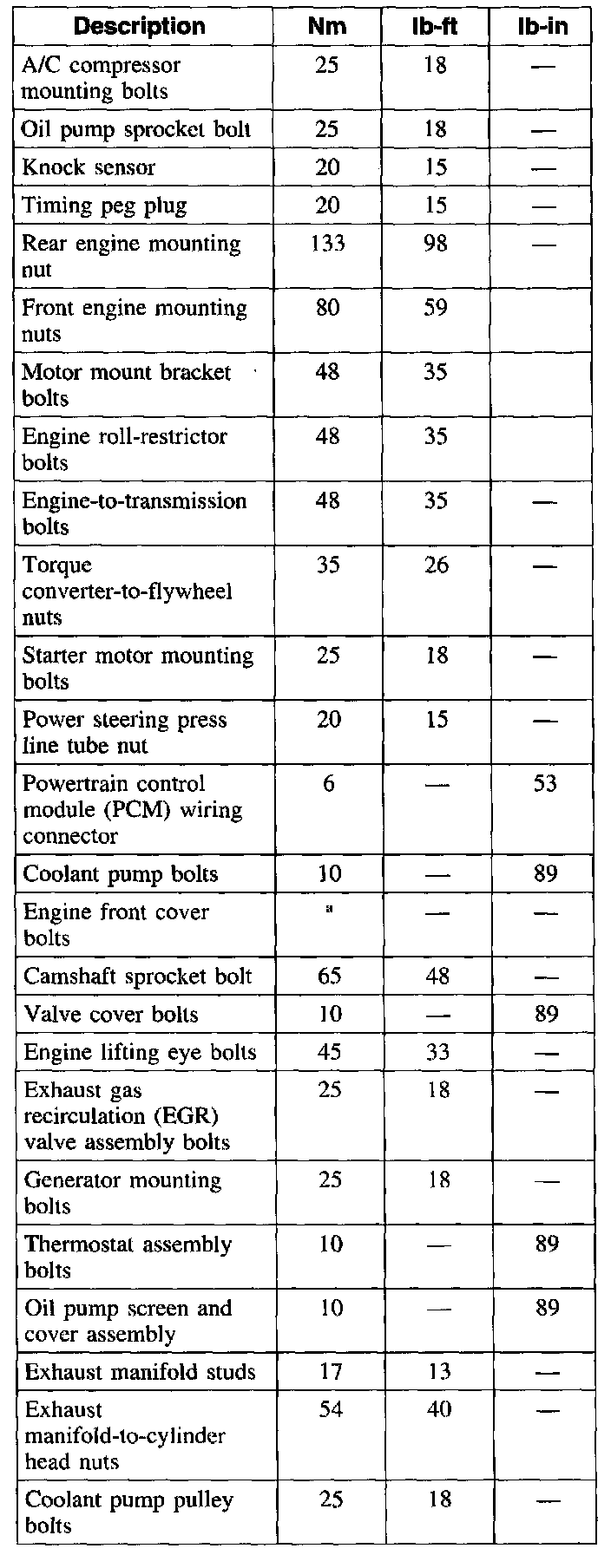

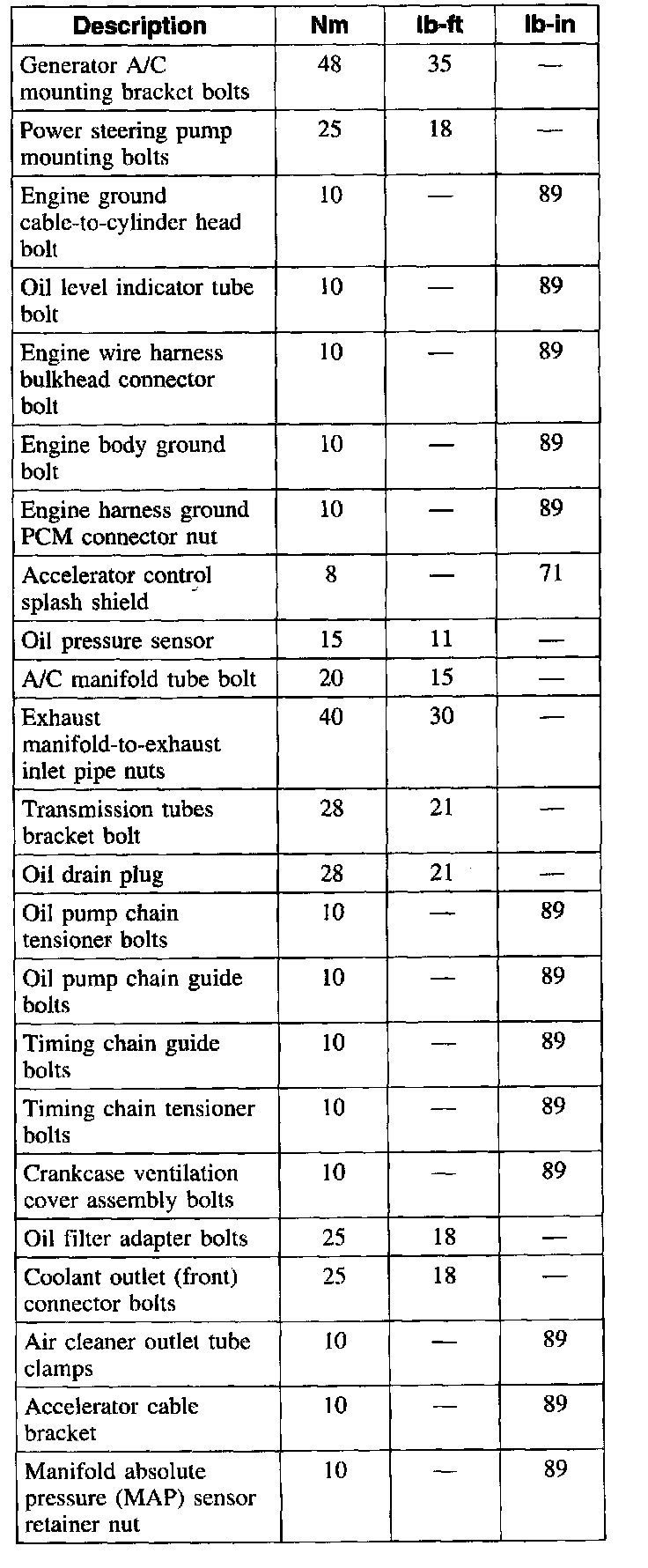

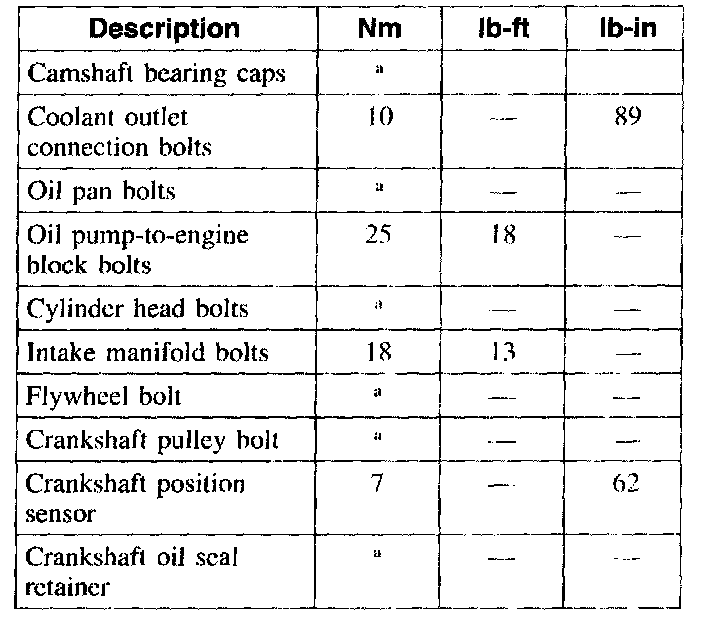

Torque Specifications

Torque Specifications


















Intake manifold mounting bolts 18 Nm (13 ft. lbs.)
Crankshaft pulley bolt
Stage 1 100 Nm (74 ft. lbs.)
Stage 2 90 degrees





Cylinder head bolts
Stage 1 5 Nm (44 inch lbs.)
Stage 2 15 Nm (11 ft. lbs.)
Stage 3 45 Nm (33 ft. lbs.)
Stage 4 90 degrees
Stage 5 90 degrees





Flywheel/Flexplate bolts
Stage 1 50 Nm (37 ft. lbs.)
Stage 2 80 Nm (50 ft. lbs.)
Stage 3 112 Nm (83 ft. lbs.)





Camshafts bearing caps bolts
Stage 1 one turn at a time until tight
Stage 2 7 Nm (62 inch lbs.)
Stage 3 16 Nm (12 ft. lbs.)
