Service Port HVAC: Locations

Alldata Editors Note: Ford does not provide locations for the A/C Service Ports. Alldata users have reported these locations to be correct.

A/C Service Ports

Low Side

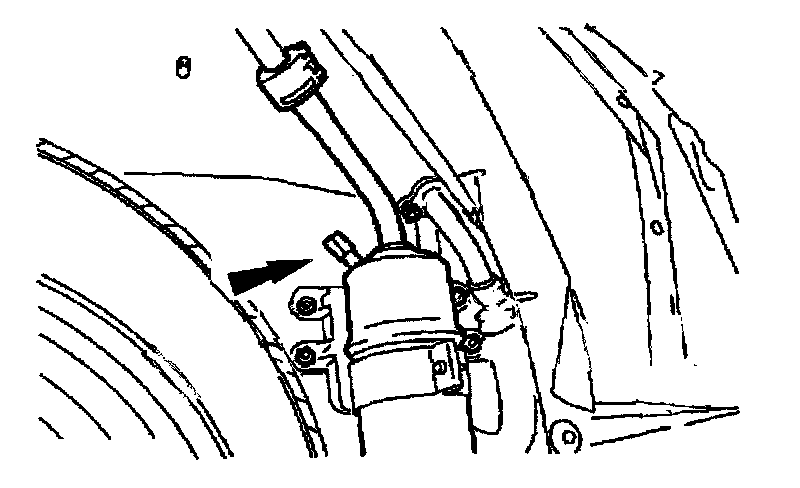

Located in passenger side wheel arch.

- Raise the vehicle.
- Detach the wheel arch trim panel on the passenger's side (driver's side shown).

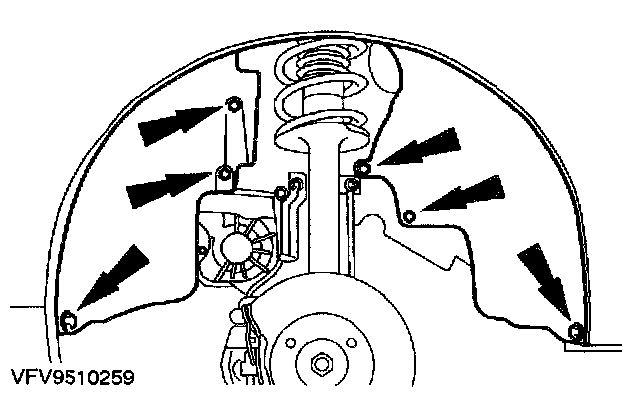

- Remove six bolts.
- Remove the trim panel.

High Side

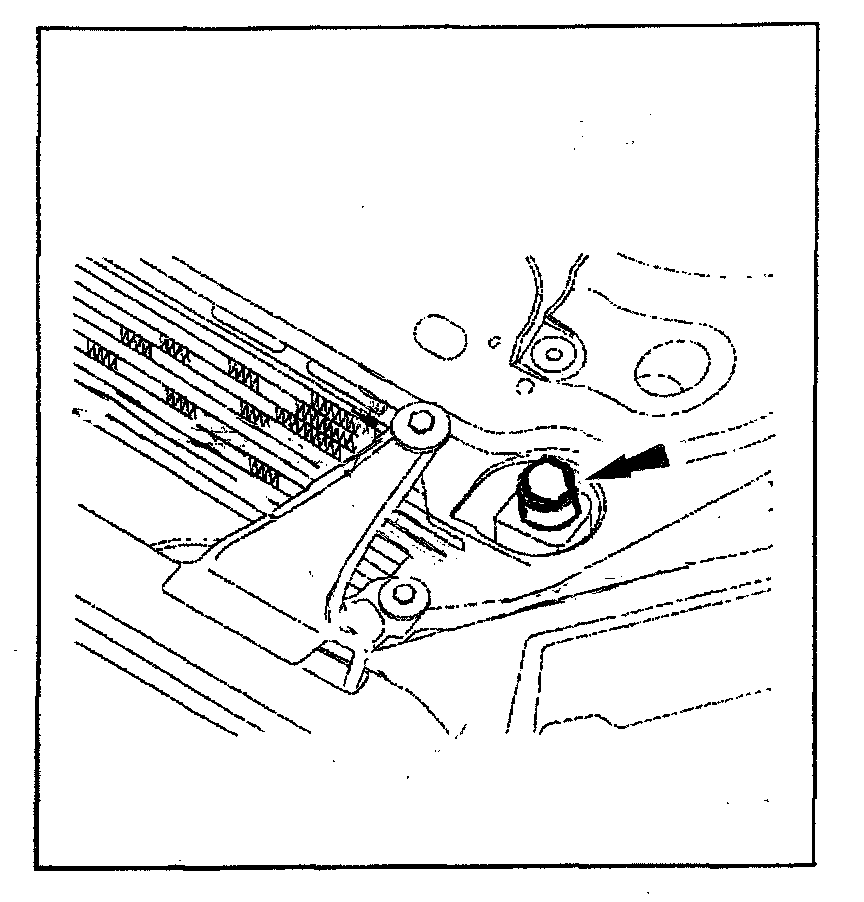

Located in engine compartment, drivers side radiator support.
