Instrument Panel, Gauges and Warning Indicators: Service and Repair

OIL PRESSURE AND OIL TEMPERATURE CLUSTER - SVT

REMOVAL
1. Disconnect the battery ground cable.

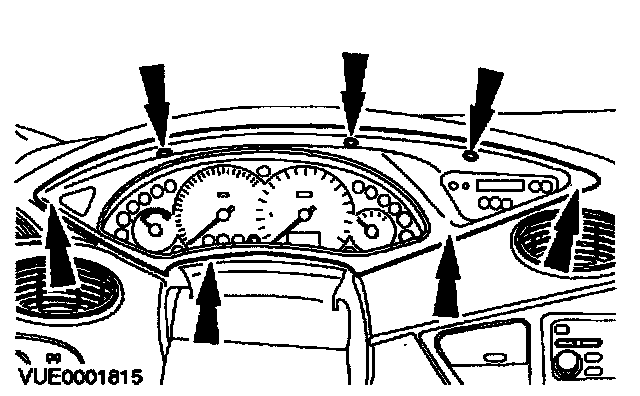

2. Detach the instrument cluster bezel. (Steering wheel removed for clarity)
- Remove the retaining screws and detach the retaining clips.







3. Remove the instrument cluster bezel.

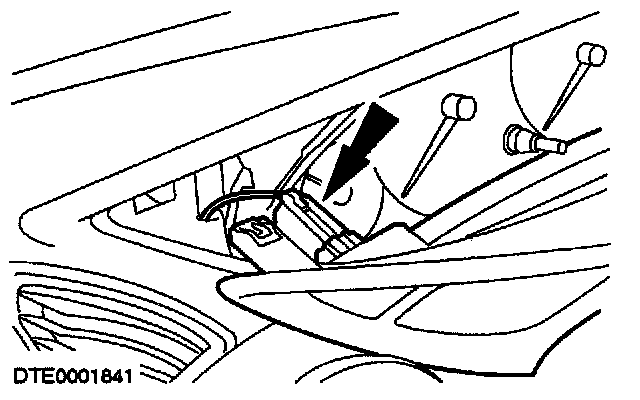

- Disconnect the luggage compartment release switch electrical connector.

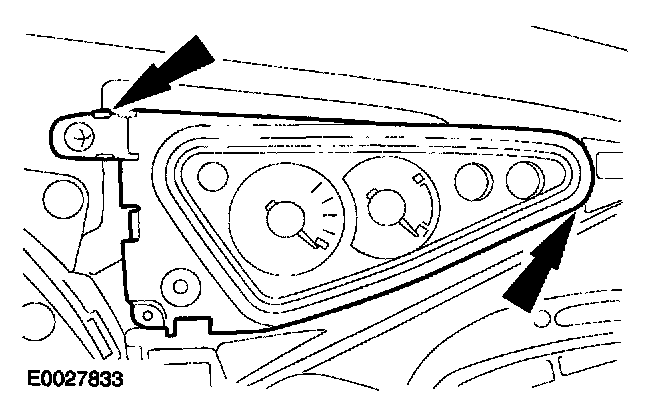

4. Remove the oil pressure and oil temperature cluster from the instrument panel.

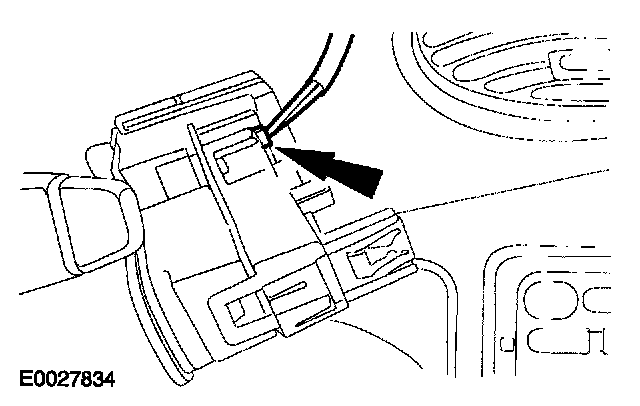

- Remove the retaining screw and detach the retaining clip.







5. CAUTION: The oil pressure and oil temperature cluster must be kept upright to avoid silicone liquid leaking from the gauges.

Disconnect the oil pressure and oil temperature cluster electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
