Fog/Driving Lamp: Service and Repair

FOG LAMP - SVT

REMOVAL
1. Raise and support the vehicle.







2. Disconnect the front fog lamp electrical connector.

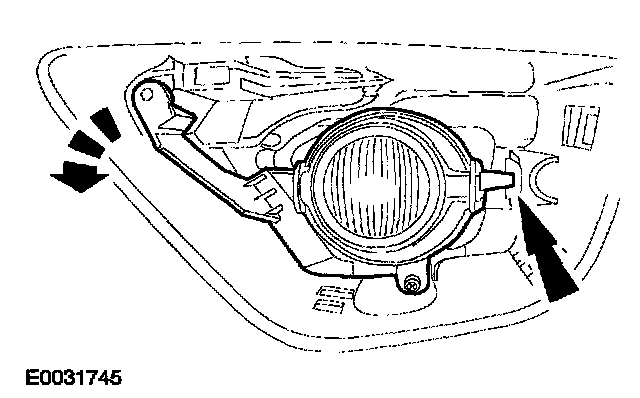

3. Remove the front fog lamp cover.

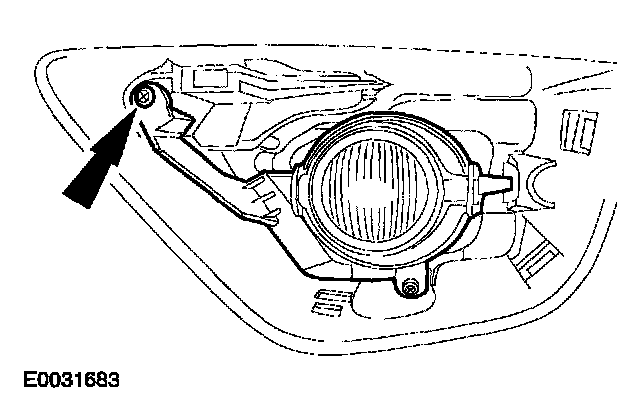

4. Remove the front fog lamp retaining bolt.







5. Remove the front fog lamp.
- Take the ball end out off the guide.

INSTALLATION

1. NOTE:
- Make sure that the front fog lamp is engaged in the fixings.
- Make sure that the front fog lamp ball end is inserted in the guide.

To install, reverse the removal procedure.

2. Adjust the fog lamps.
