Headlamp: Service and Repair

HEADLAMP ASSEMBLY

REMOVAL

All vehicles

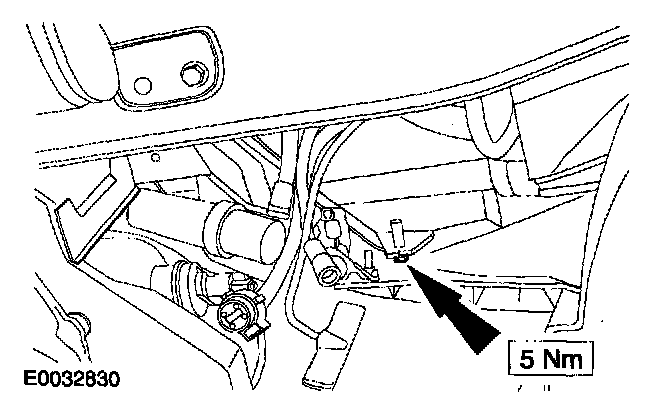

1. Remove the headlamp assembly lower retaining bolt.

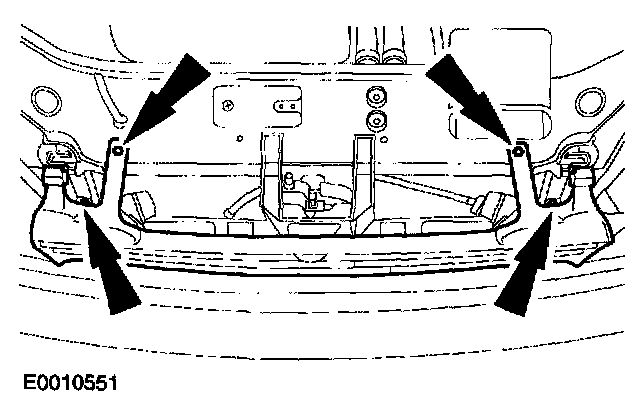

2. Remove the radiator grille.

Vehicles with conventional headlamps

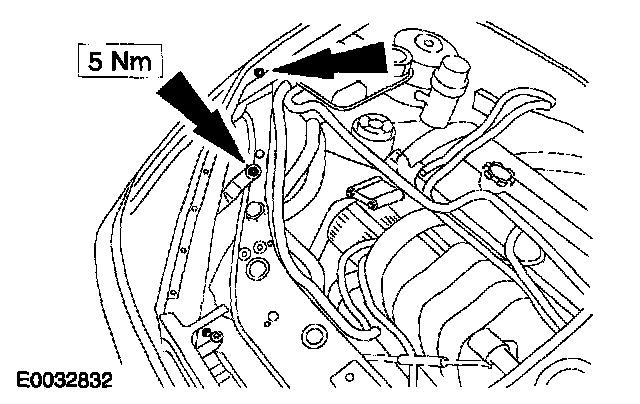

3. Remove the headlamp assembly.
- Disconnect the headlamp assembly electrical connector.

Vehicles with high intensity discharge (HID) headlamps







4. Remove the headlamp assembly.
- Disconnect the headlamp assembly electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
- If necessary, adjust the headlamps.
