Test M

PINPOINT TEST M: ONE/MORE TURN SIGNAL LAMP(S) IS/ARE NEVER/ALWAYS ON


Test M1:

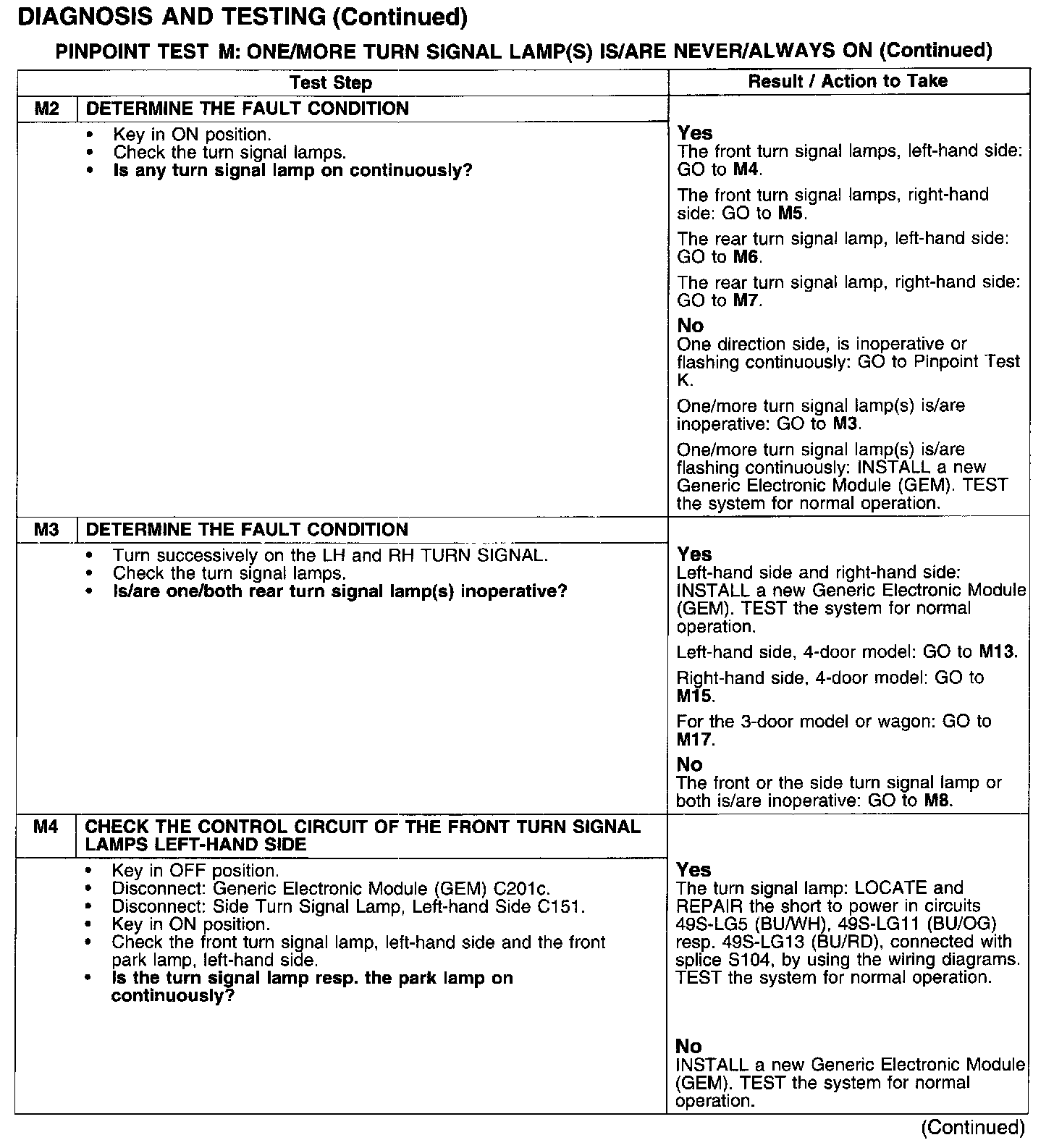

Test M2-M4:

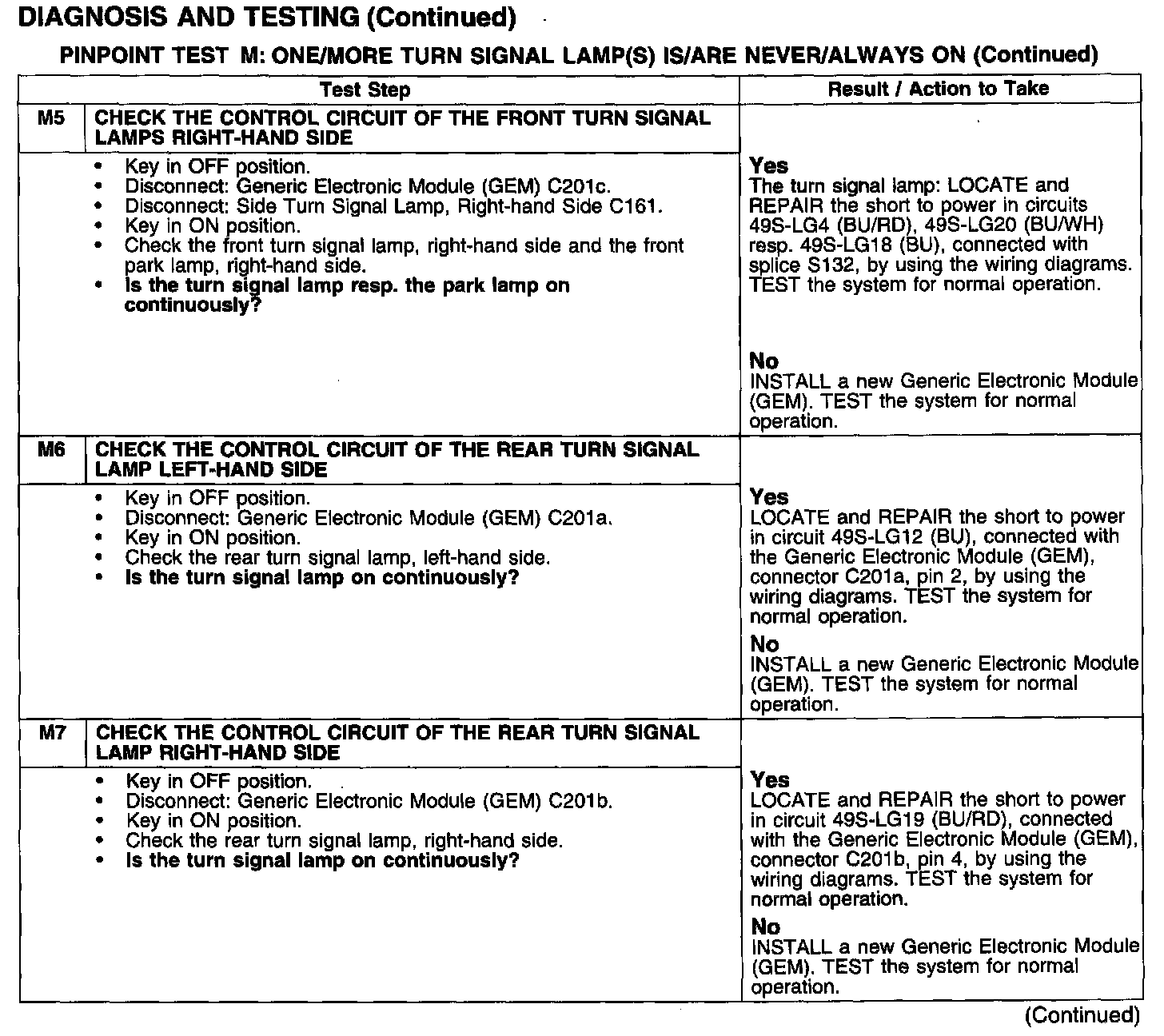

Test M5-M7:

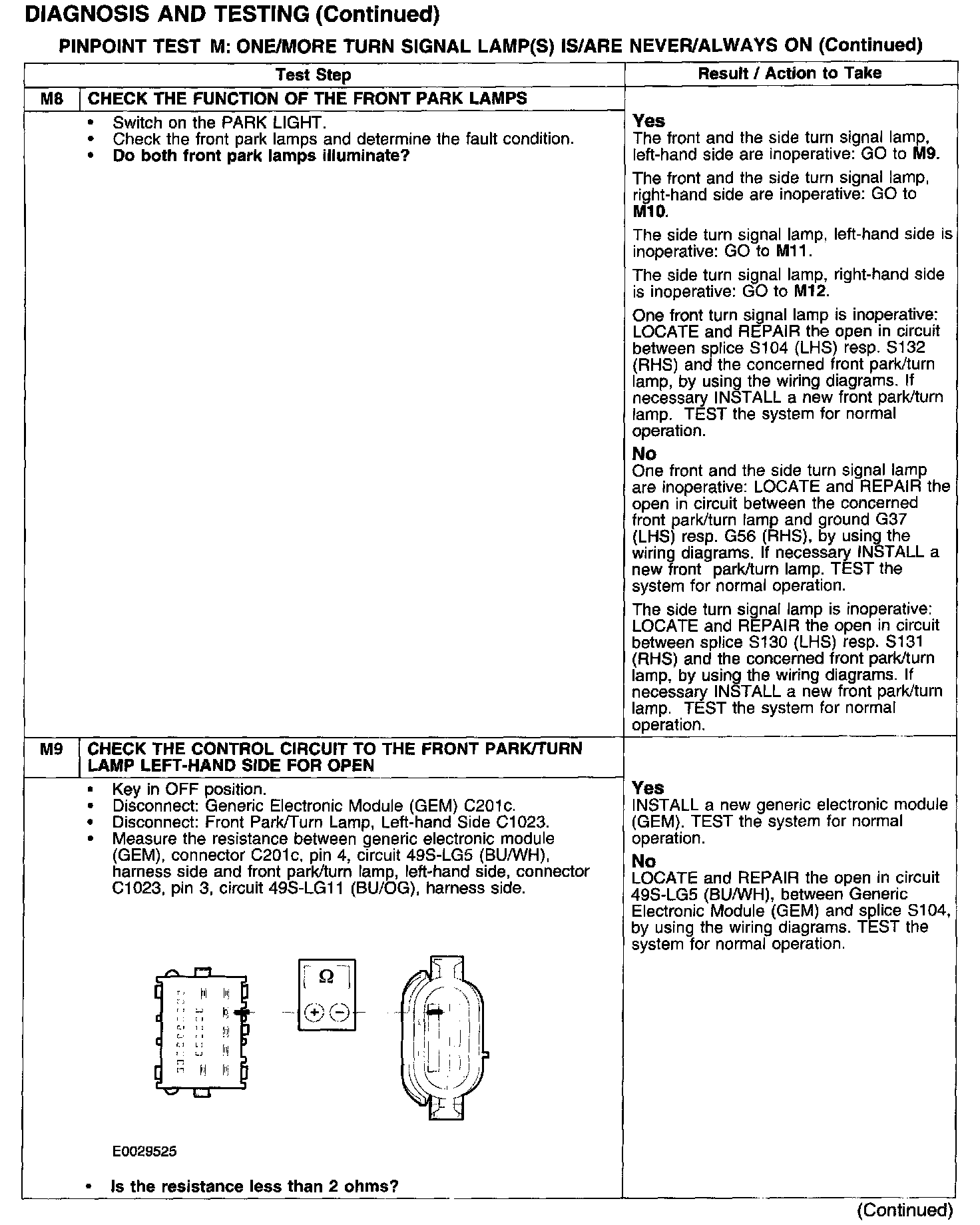

Test M8-M9:

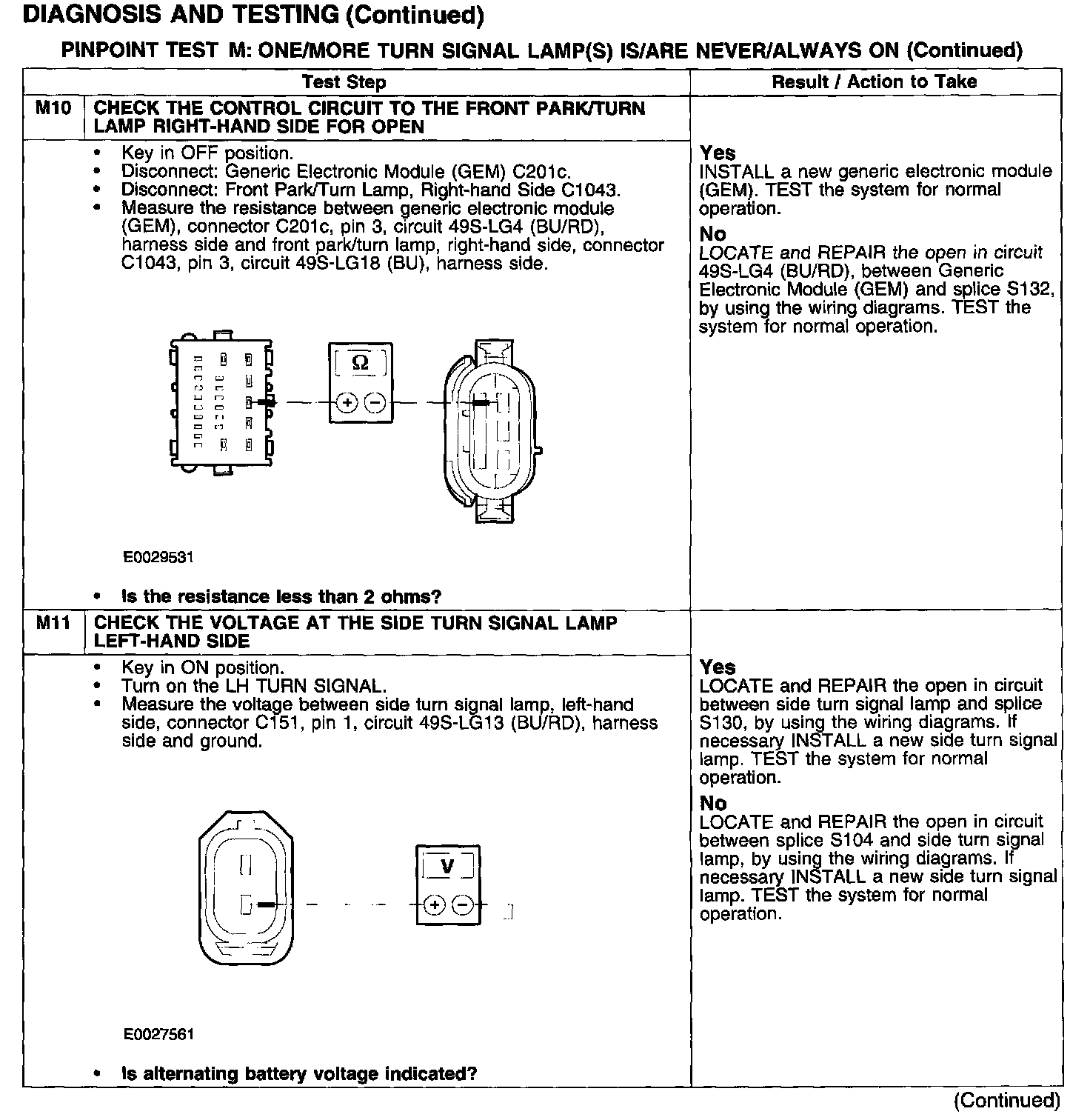

Test M10-M11:






Test M12-M13:

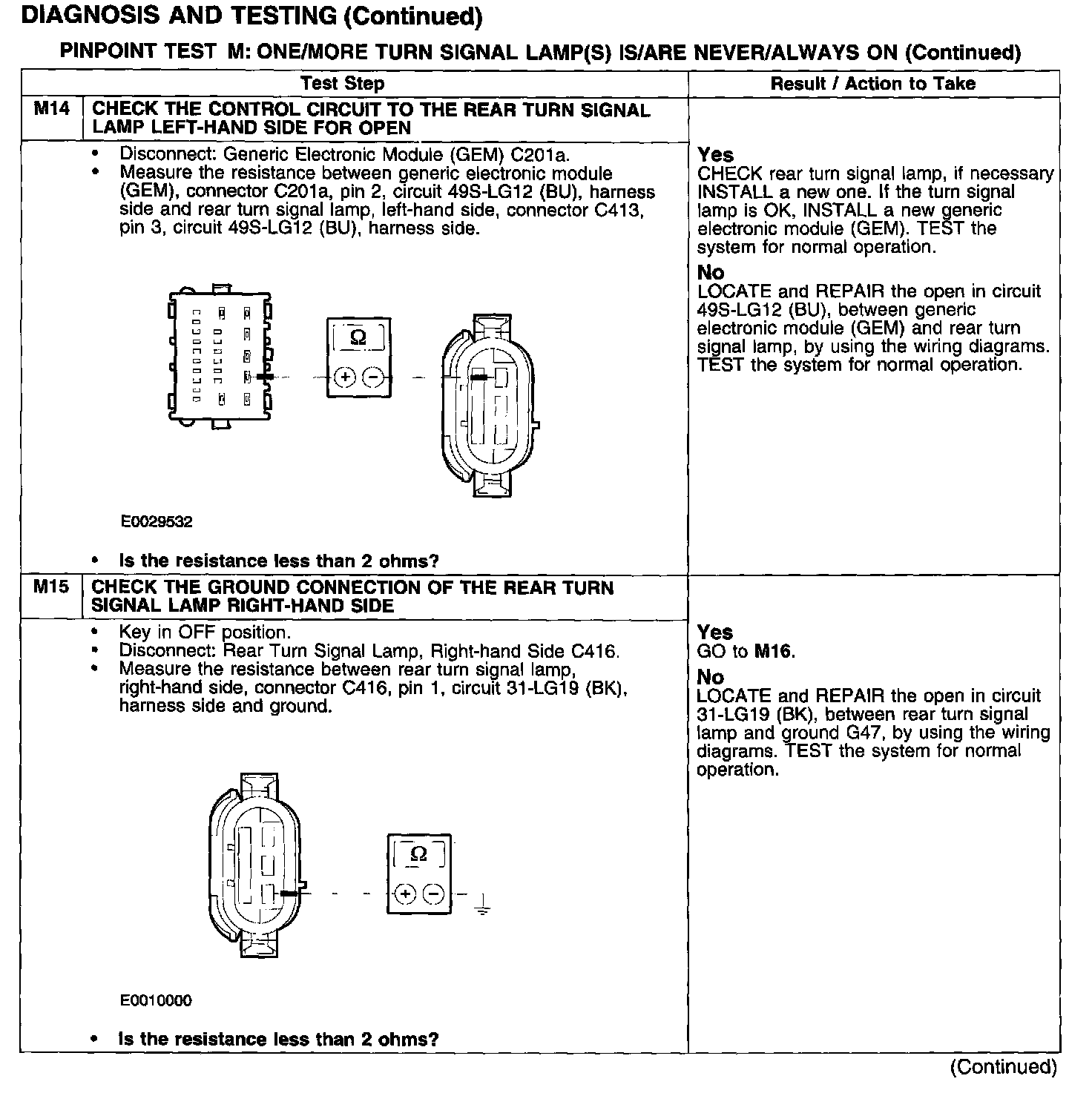

Test M14-M15:

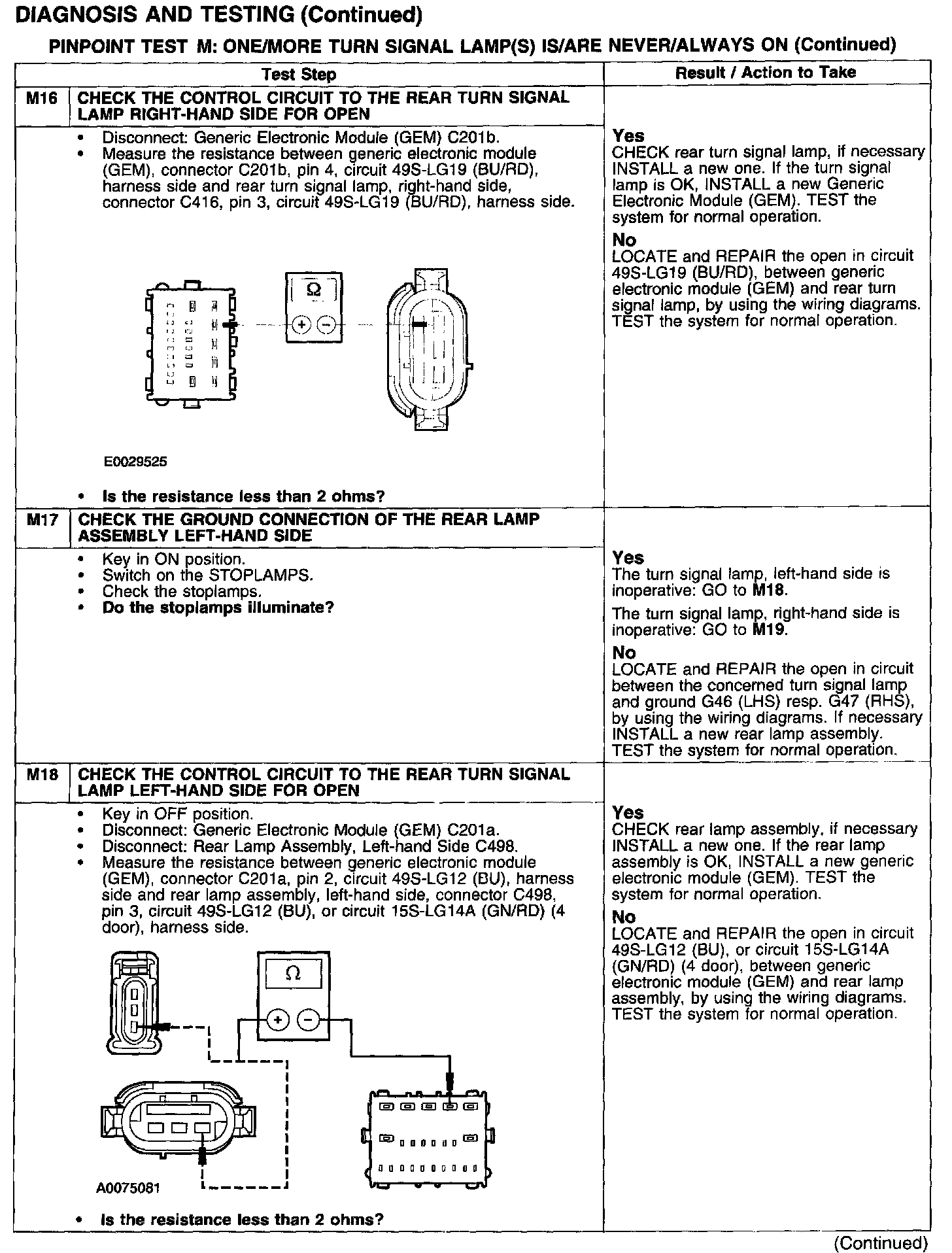

Test M16-M18:

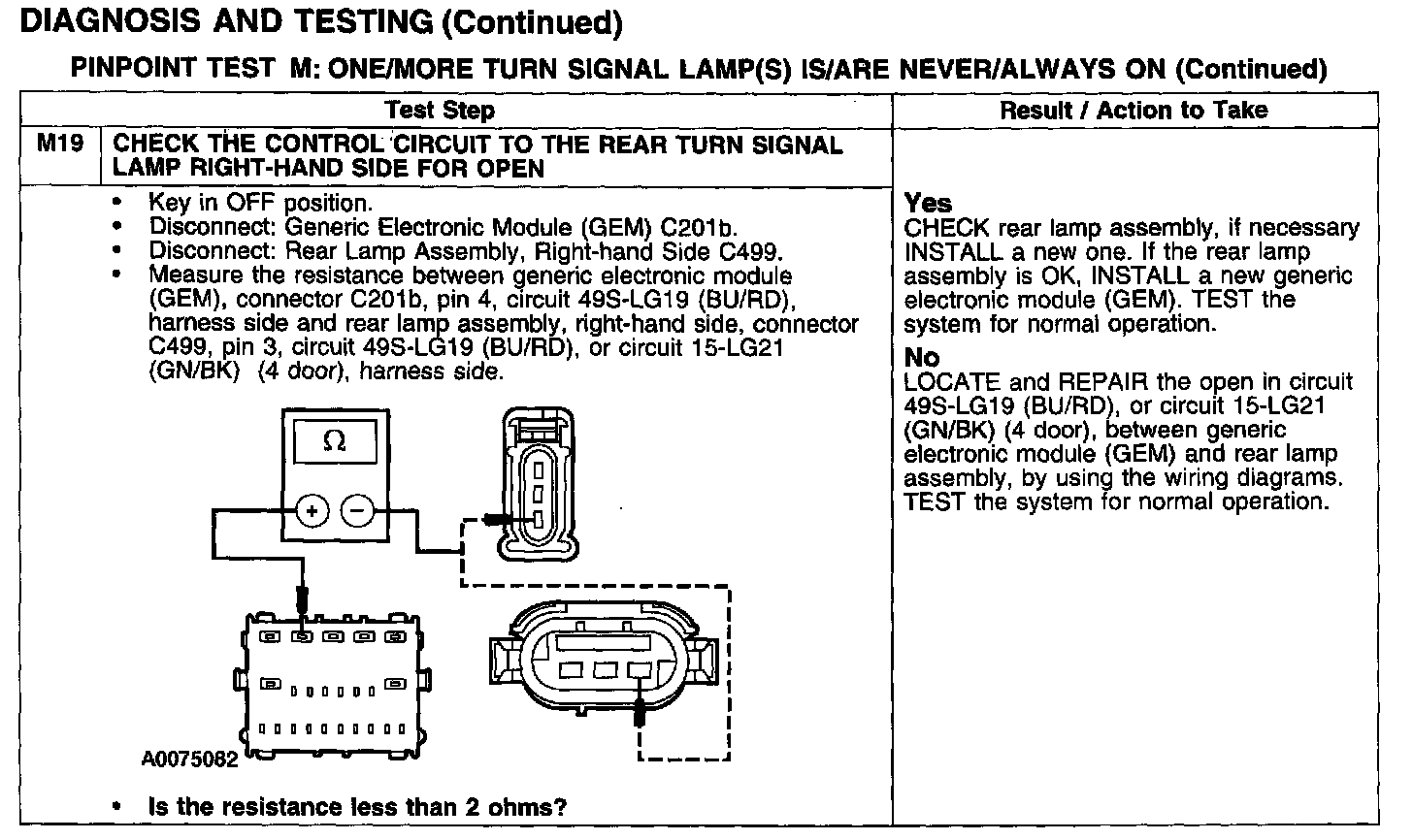

Test M19:
