Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a view is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

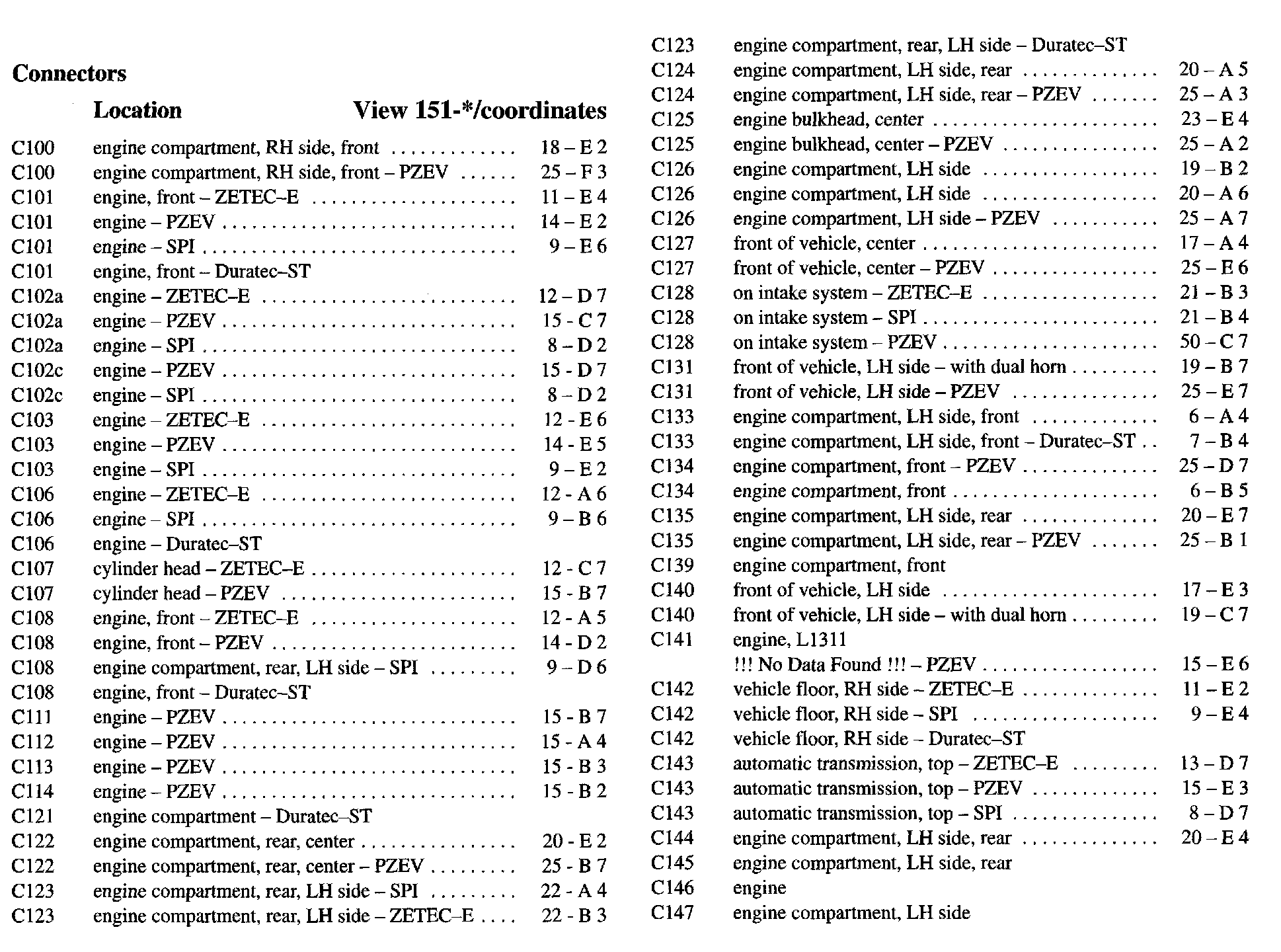

C100 - C147:

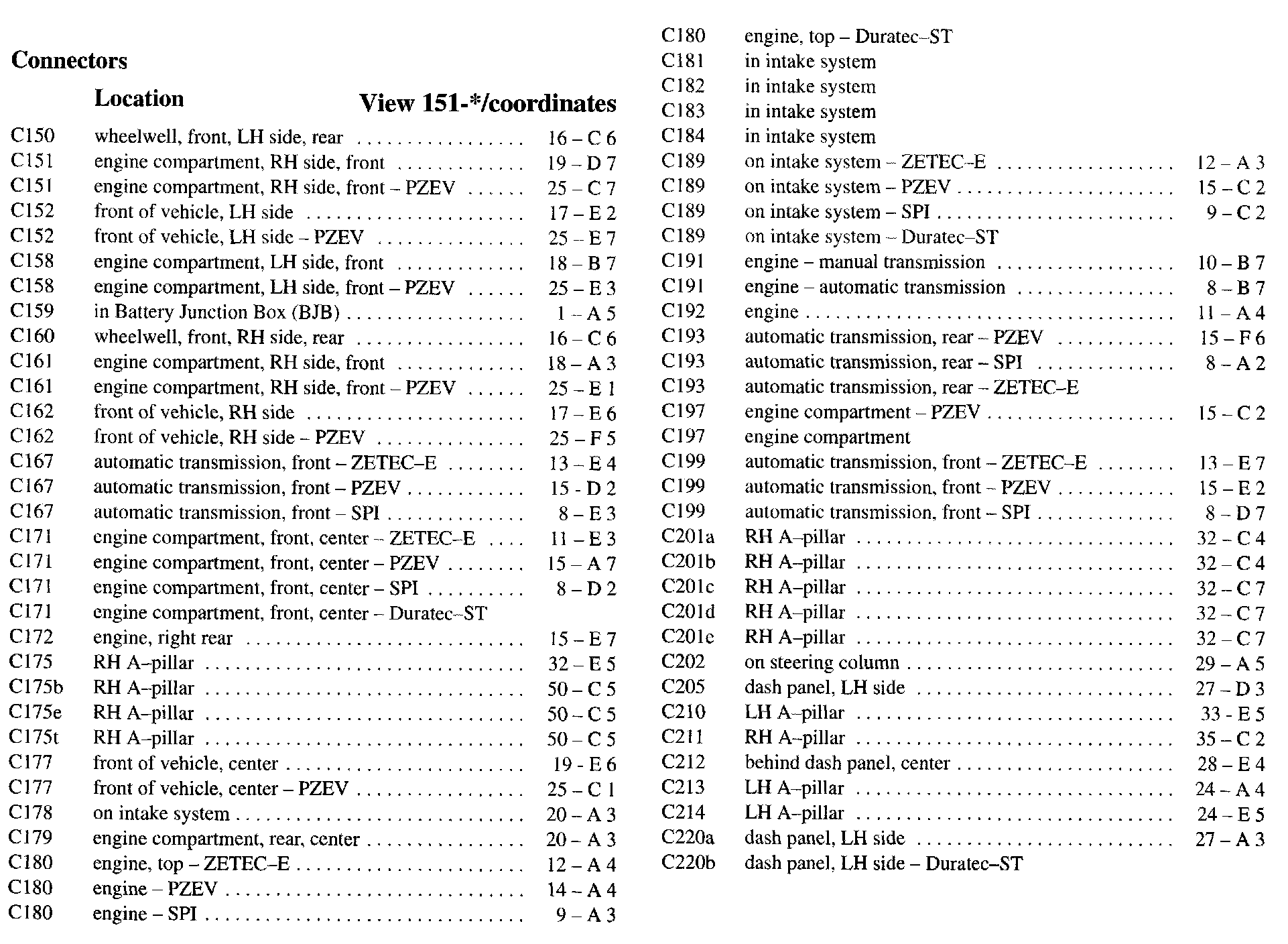

C150 - C220b:

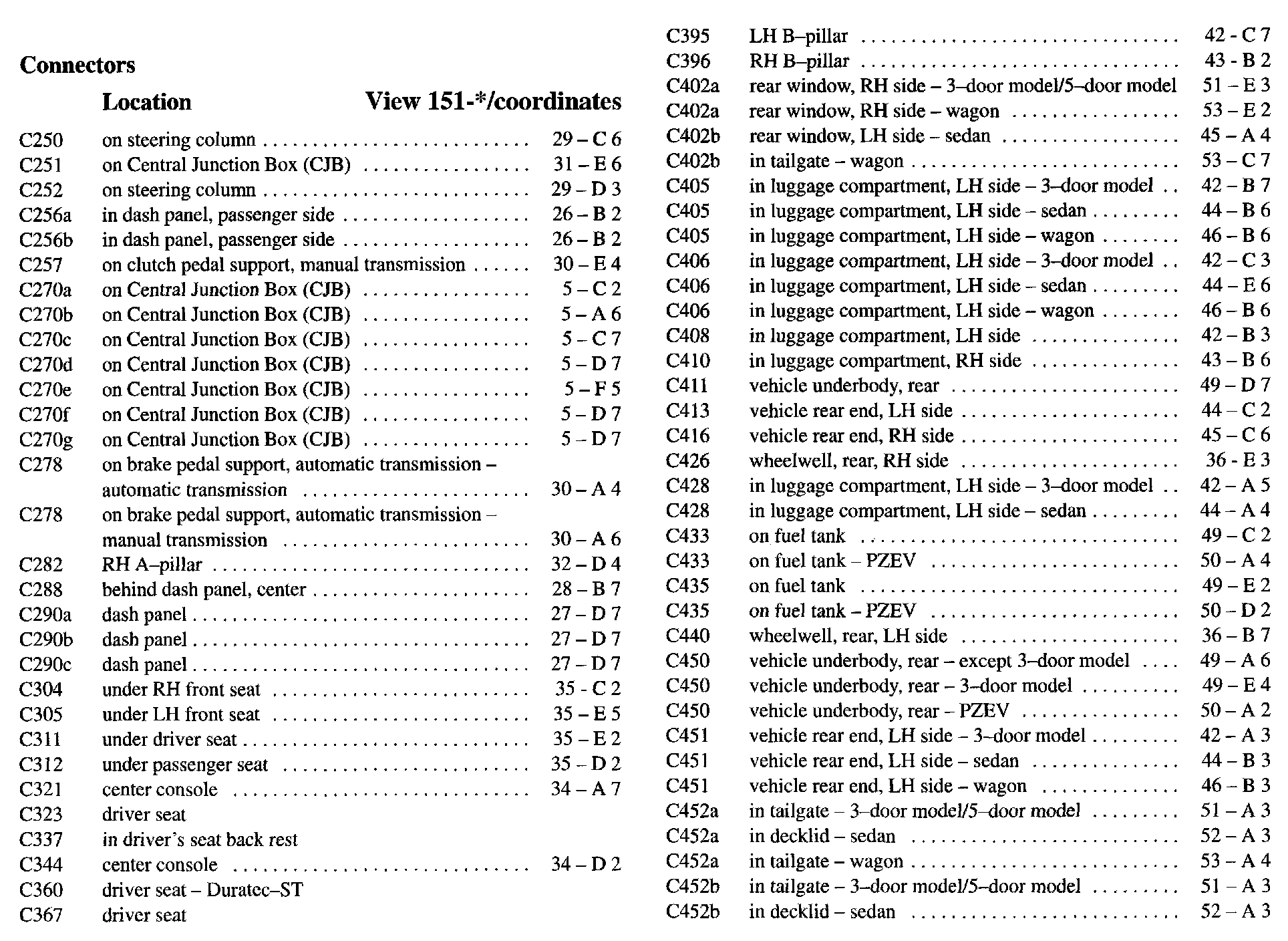

C250 - C452b:

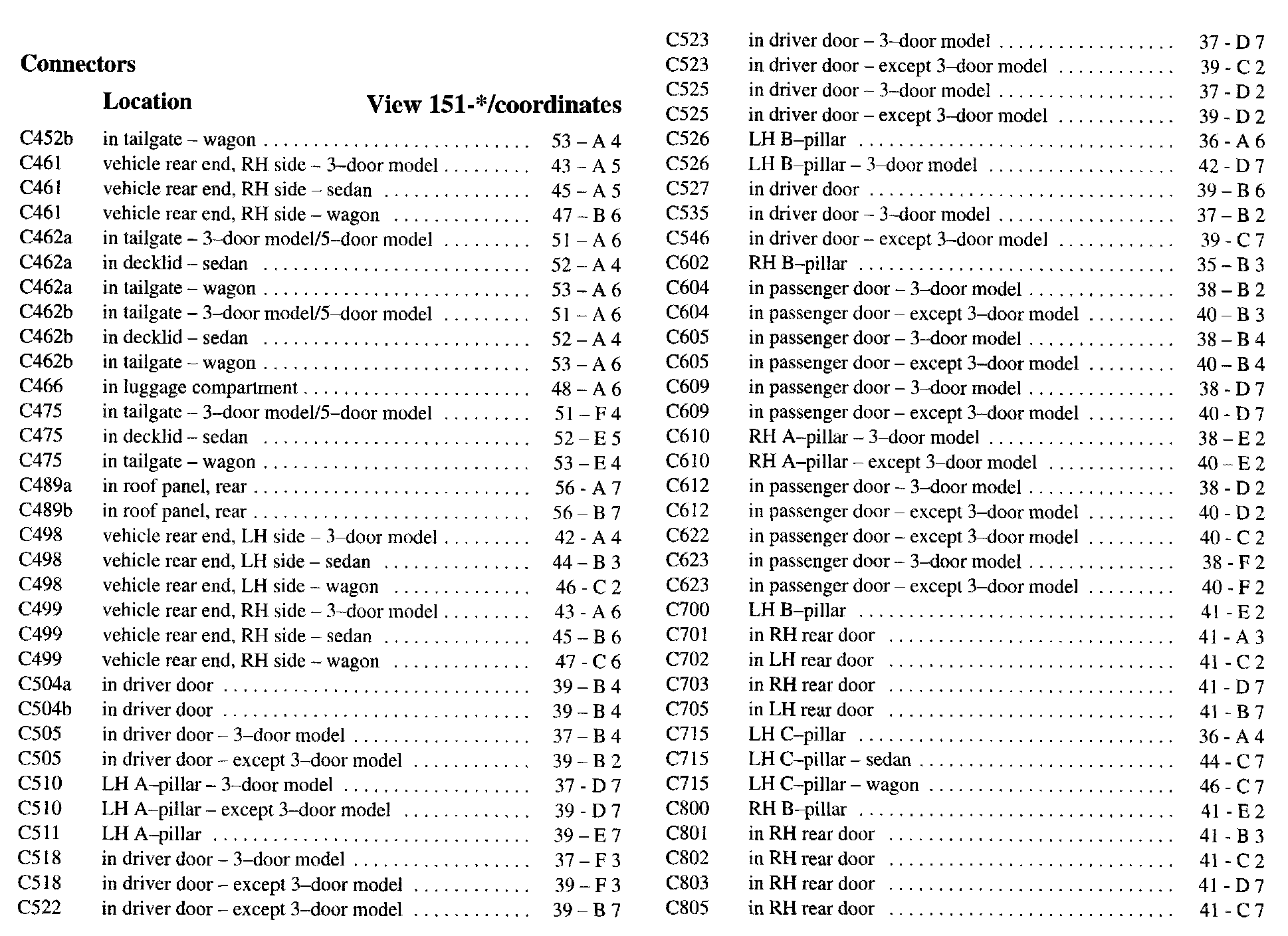

C452b - C805:

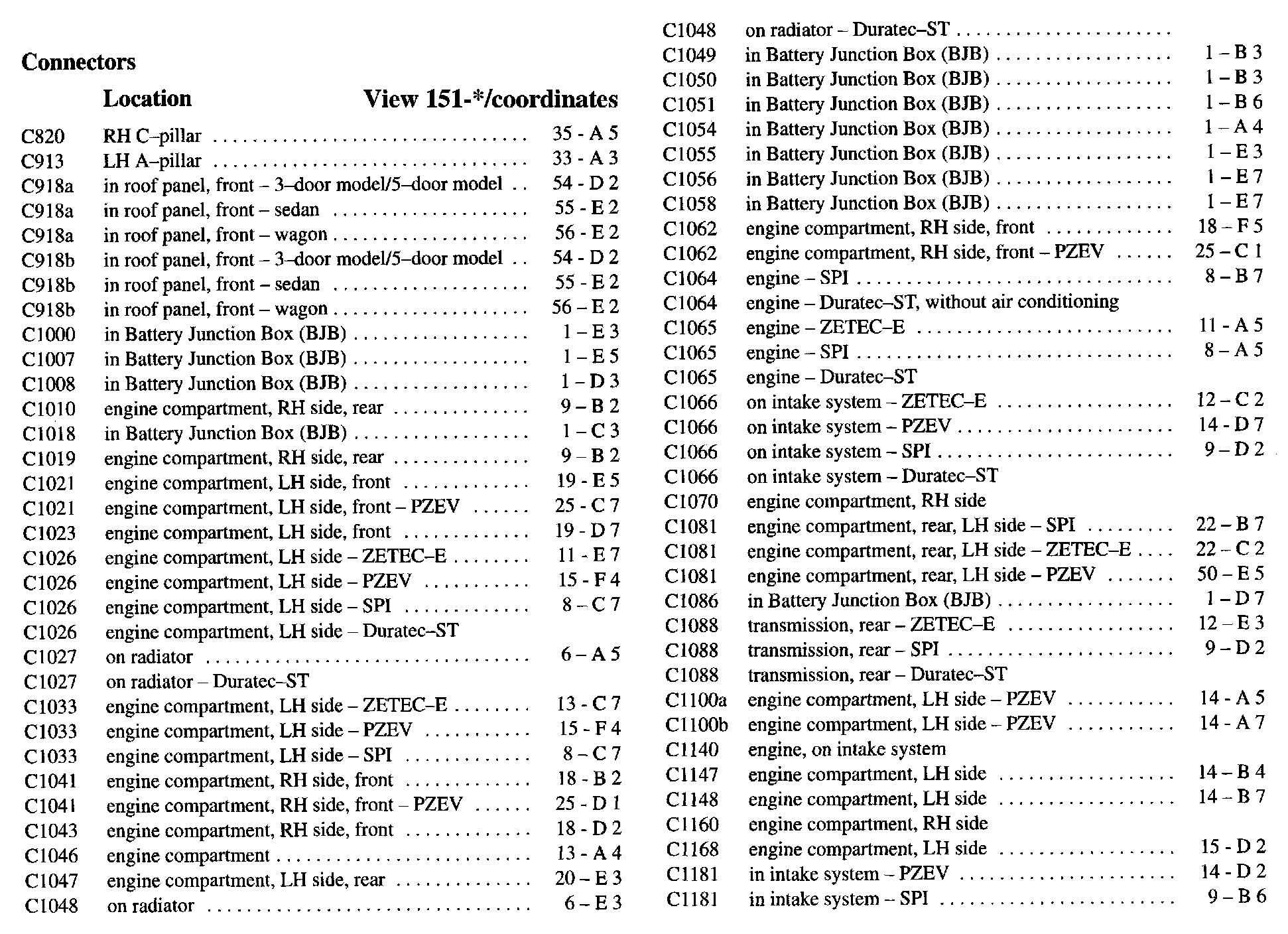

C820 - C1181:

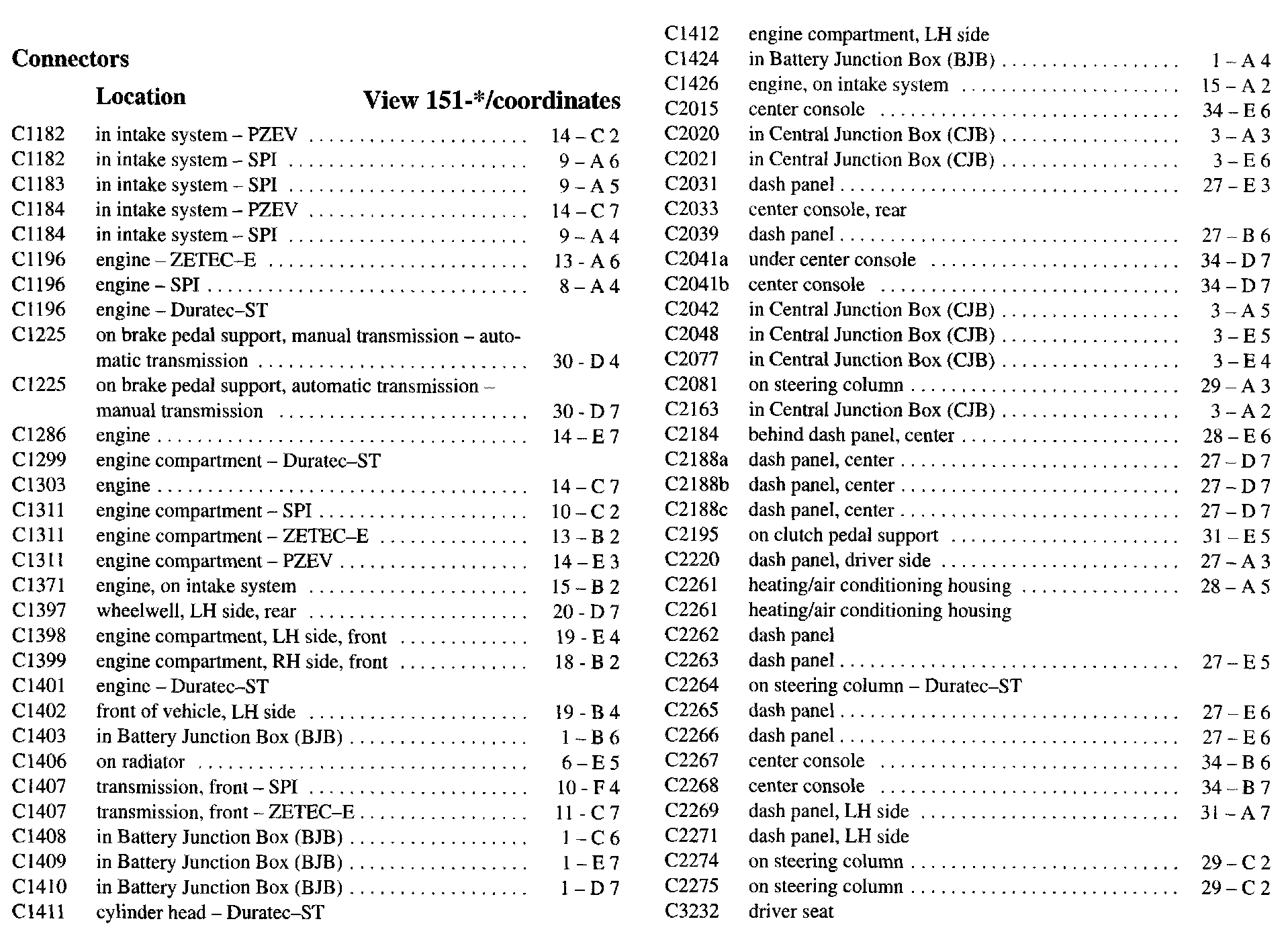

C1182 - C3232:

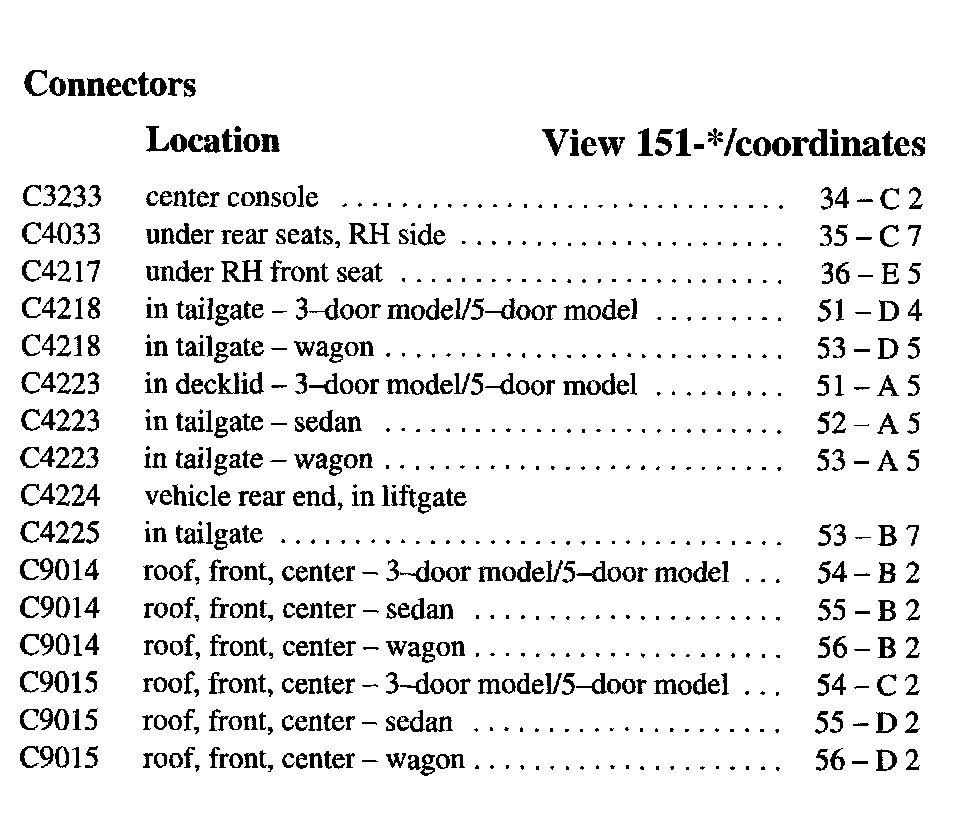

C3233 - C9015:
