Resonator: Service and Repair
REMOVAL 1.
Loosen the clamp and disconnect the vent tube from the outlet pipe.
2.

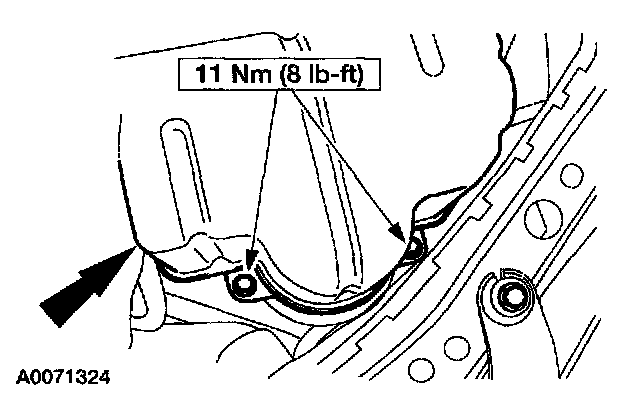

Remove the bolts and detach the
resonator from the grommets.
^
Remove the air intake resonator and outlet pipe.
INSTALLATION 1.
To install, reverse the removal procedure.
