Transaxle Case
Transaxle CasePart 1 Of 2:
Part 2 Of 2:

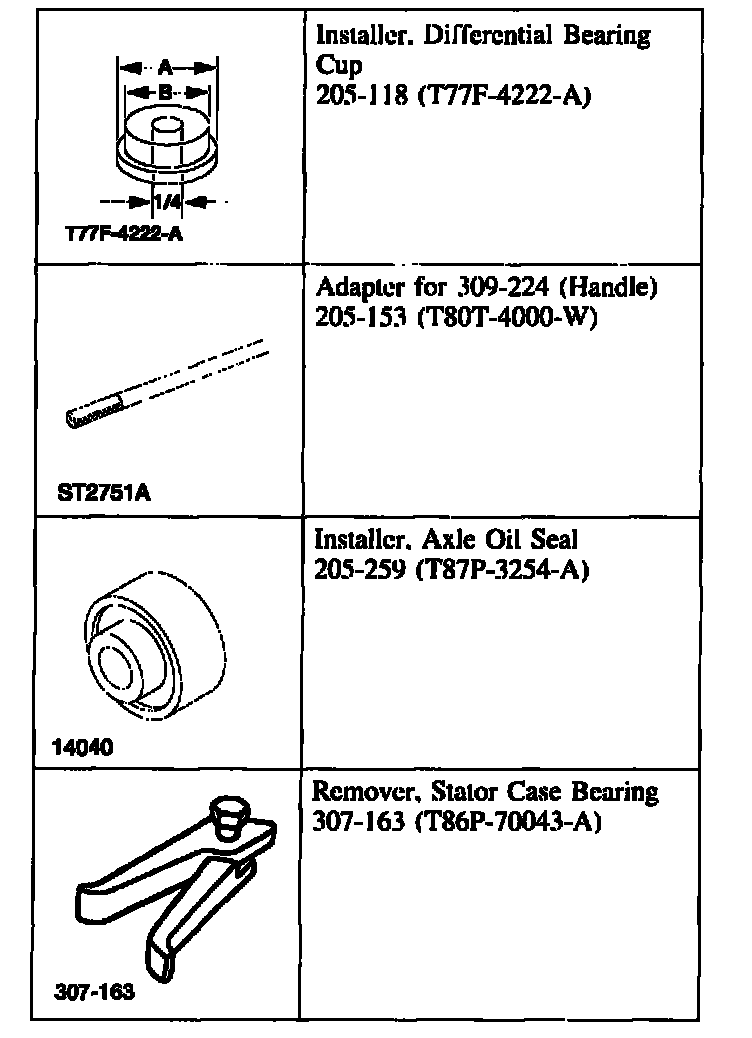

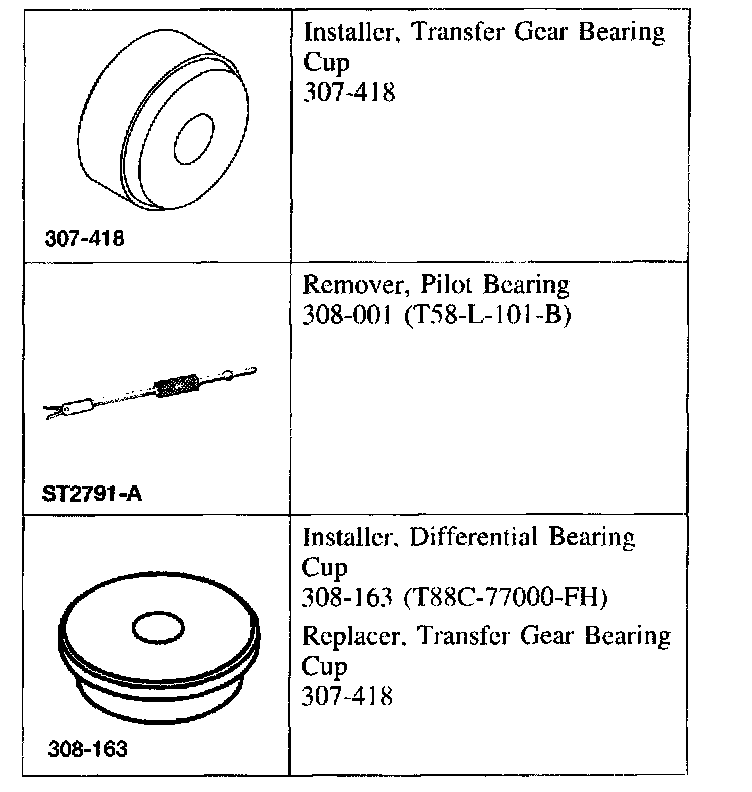

Special Tool(s)
Disassembly
1. Remove the halfshaft seals (left-hand side shown).

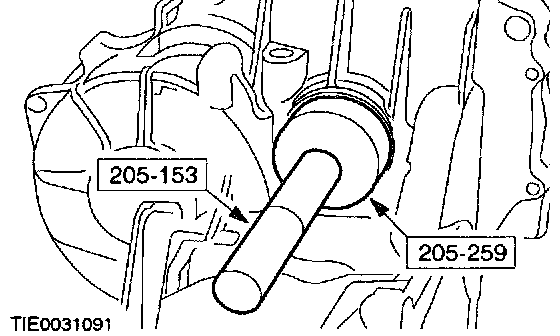

2. Using the special tools, remove the differential case bearing cups (left-hand side shown).

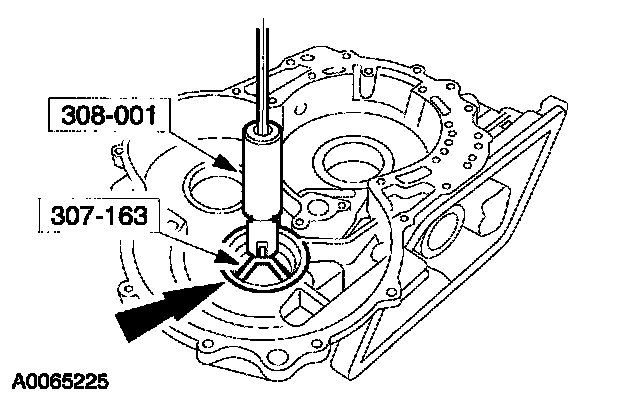

3. Using the special tools, remove the final drive input gear bearing cup.
4. Using the special tool, remove the transfer shaft gear bearing cups (left-hand side shown).
5. NOTE: Note the location of the bleed hole in the funnel in relation to the bottom of the case.
NOTE: Inspect the bleed hole for foreign material.
Remove the funnel.
6. Rotate the transaxle 180 degrees.
7. Using the special tools, remove the final drive input gear bearing cup.
Assembly
1. NOTE: The converter housing side bearing cups for the transfer shaft bearing and differential case bearing will be installed during the assembly of the transaxle.
Using the special tools, instal1 the final drive input gear hearing cup.
2. Rotate the transaxle 180 degrees.
3. NOTE: Note the location of the bleed hole
NOTE: Inspect the bleed hole for foreign material.
Install the funnel.
4. Using the special tools, install the left-hand side transfer shaft gear bearing cup.
5. Using the special tools, install the final drive input gear bearing cup (left-hand side shown).
6. Using the special tools, install the left-hand side differential case bearing cup.
7. Using the special tools, install the halfshaft seals (left-hand side shown).
