External Controls MT285 Transaxle

Gearshift Linkage

Removal
1. Remove the gearshift lever boot and knob.
2. Remove the floor console.





3. Remove the gearshift linkage retaining nuts.

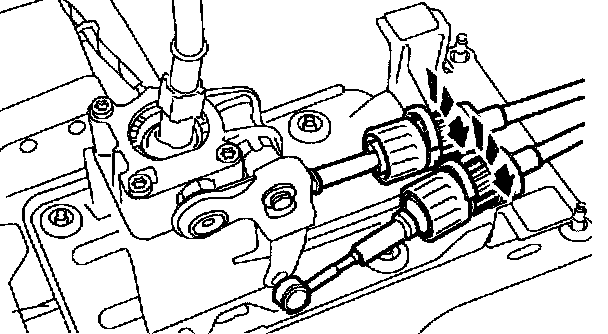

4. Detach the gearshift cables from the gearshift linkage.
^ Turn the abutment sleeves clockwise and detach the cables from the bracket.





5. Detach the gearshift cable from the gearshift lever.





6. Detach the selector cable from the selector lever.
7. Remove the gearshift linkage.

Installation
1. To install, reverse the removal procedure.
2. Adjust the gearshift cables.
