Front Door Glass Top Run
FRONT DOOR GLASS TOP RUN REMOVAL 1.
Remove the front door
window glass.
2.
Remove the door mirror cover.
1
Release the clip.
2
Remove the cover.
3.
Remove the cover.
-

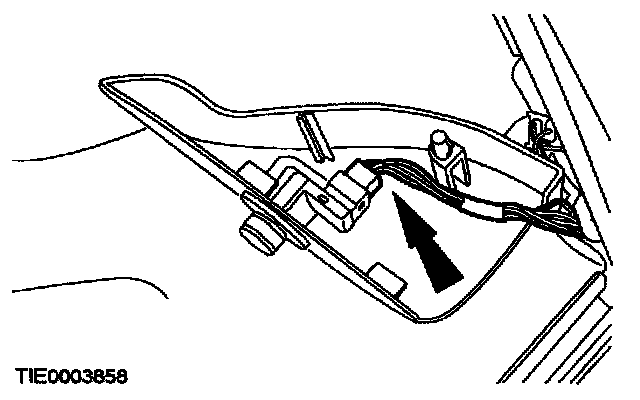

Disconnect the electrical connector.
4.

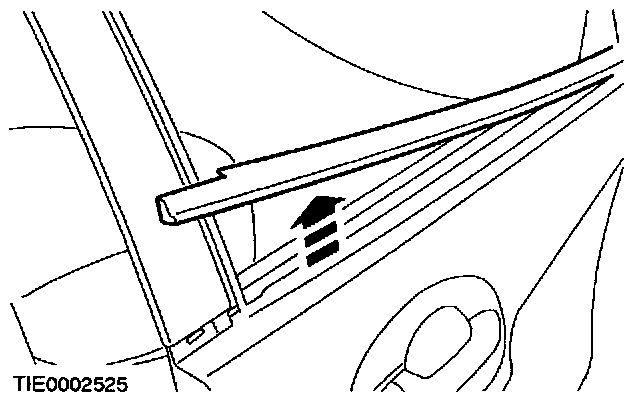

Remove the exterior weatherstrip.
5.

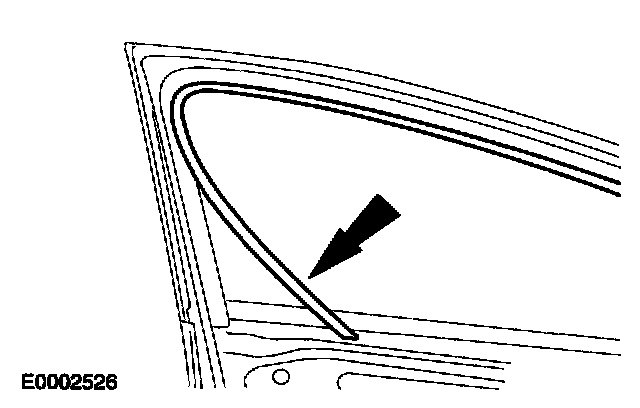

Remove the door glass top run.
INSTALLATION 1.
To install, reverse the removal procedure.
