Compressor Fitting HVAC: Service and Repair

NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.

REMOVAL
1. Recover the refrigerant.

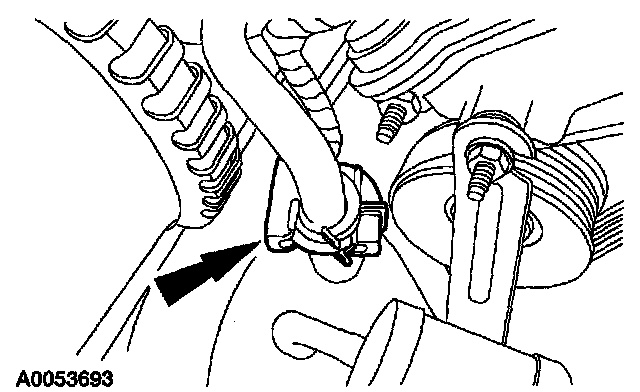

2. Disconnect the suction line spring lock coupling.
- Discard the O-ring seals.

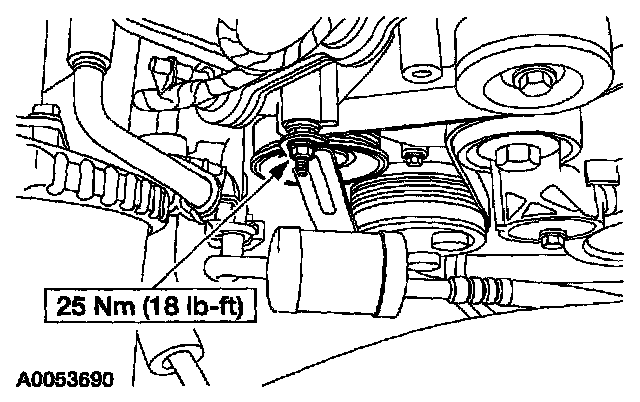

3. Remove the A/C muffler bracket nut.







4. Disconnect the spring lock coupling.
- Discard the O-ring seals.
5. Raise the vehicle.







6. Remove the bolt and the compressor manifold assembly.
- Discard the O-ring seals.

INSTALLATION
1. To install, reverse the removal procedure.
- Install new O-ring seals lubricated in clean PAG oil.
- Lubricate the refrigerant system with the correct amount of clean PAG oil.

2. Evacuate, leak test and charge the refrigerant system.
