Drive Belt: Service and Repair

Accessory Drive Belt - 4.6L (2V) and (4V)

Removal and Installation

Mach 1
1. Remove the air intake scoop.

Cobra





2. Remove the supercharger drive belt cover.

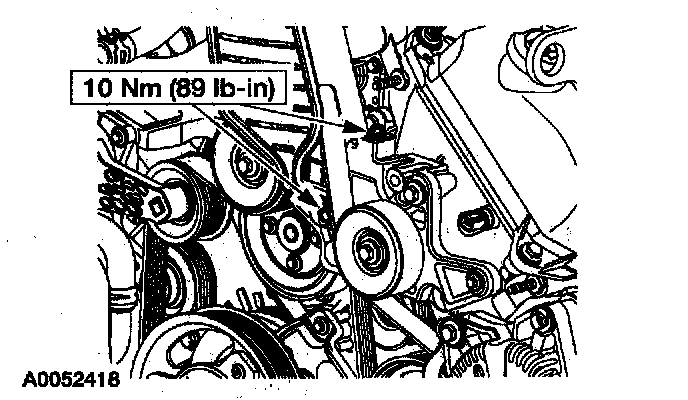

3. Rotate the supercharger belt tensioner clockwise and remove the supercharger belt.

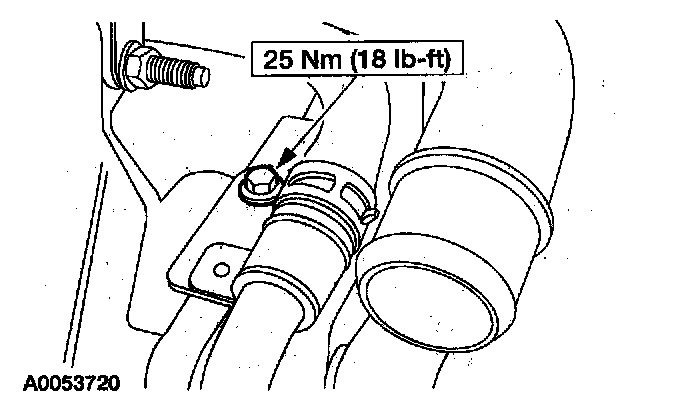

4. Remove the coolant hose mounting bolt.





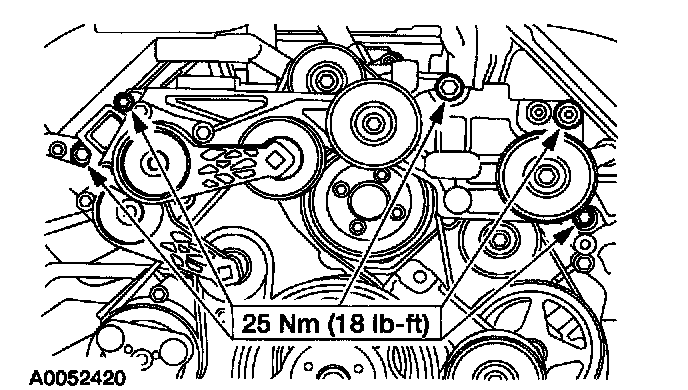

5. Remove the belt idler support bracket assembly.
6. Remove auxiliary crankshaft pulley.

All engines

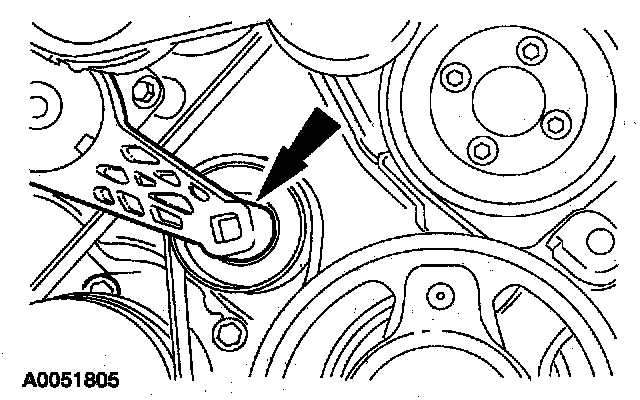

7. Rotate the belt tensioner and remove the accessory drive belt.

8. NOTE: Make sure the accessory drive belt is correctly installed on each pulley.

To install, reverse the removal procedure.
