Test B

PINPOINT TEST B: DTC B1676-BATTERY VOLTAGE OUT OF RANGE

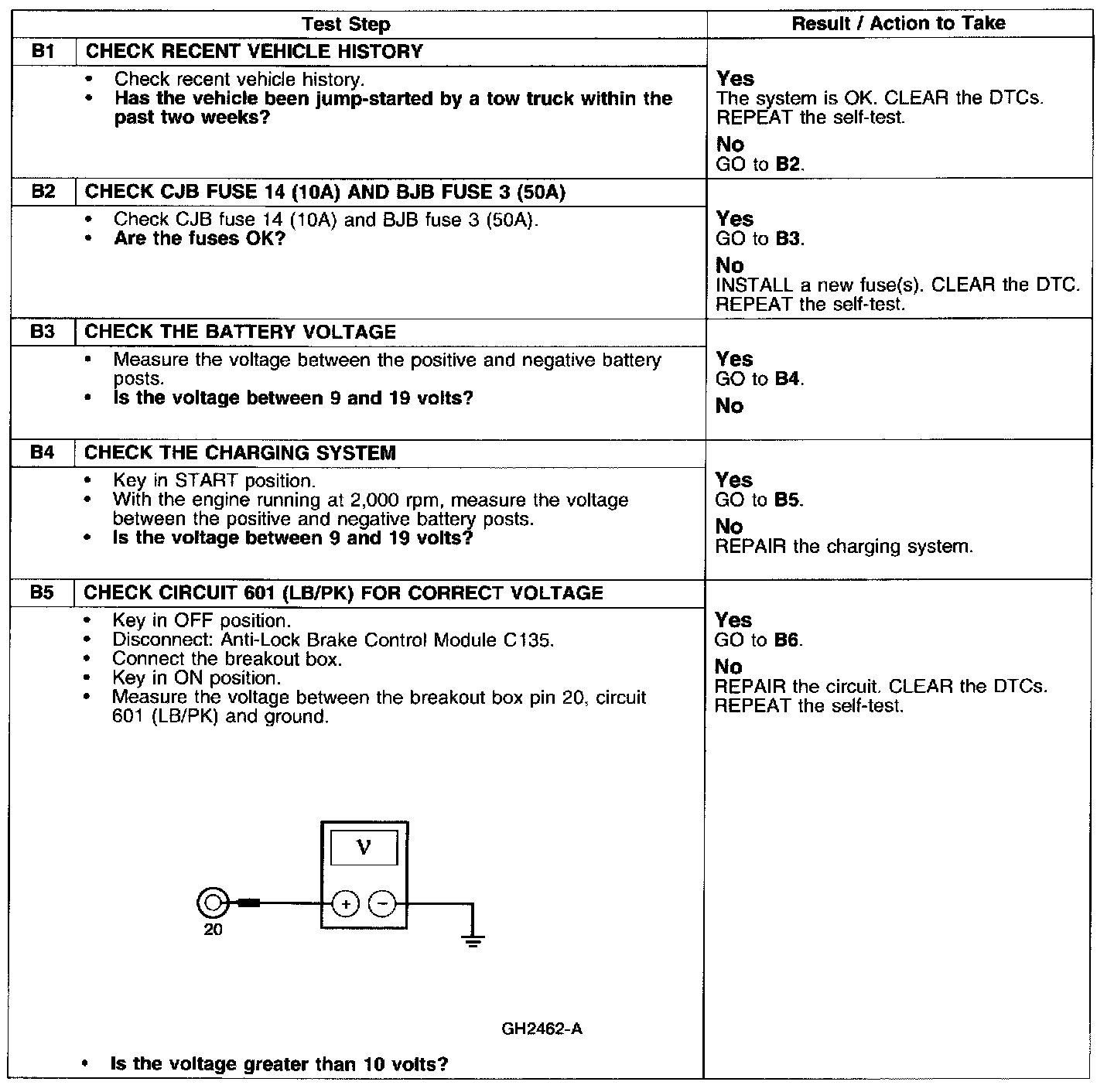

Test B1-B5:

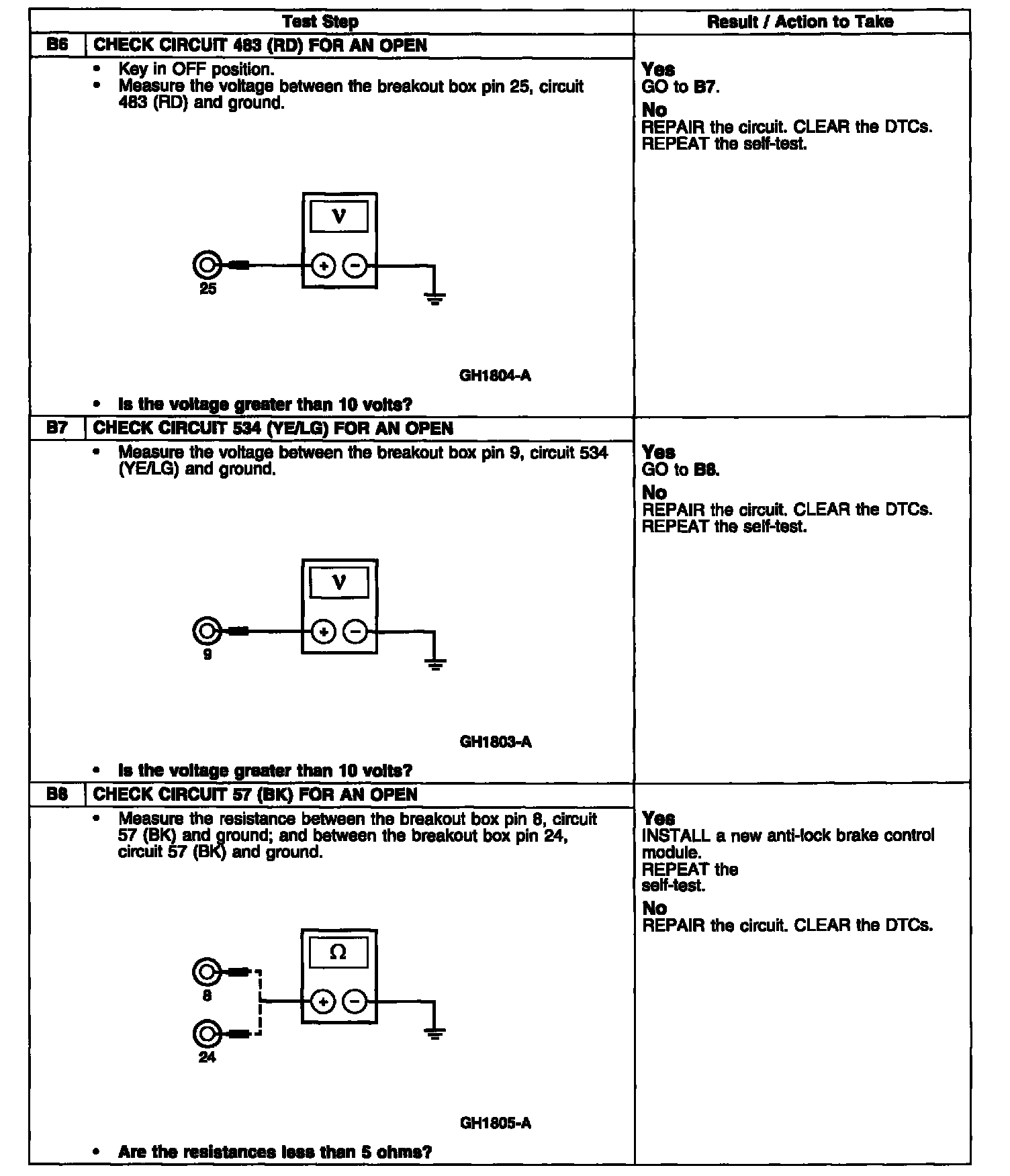

Test B6-B8:

NOTE: DTC B1676 is generated when the anti-lock brake control module detects system voltage is less than 9 volts or greater than 19 volts for more than 8 seconds.
