Test D

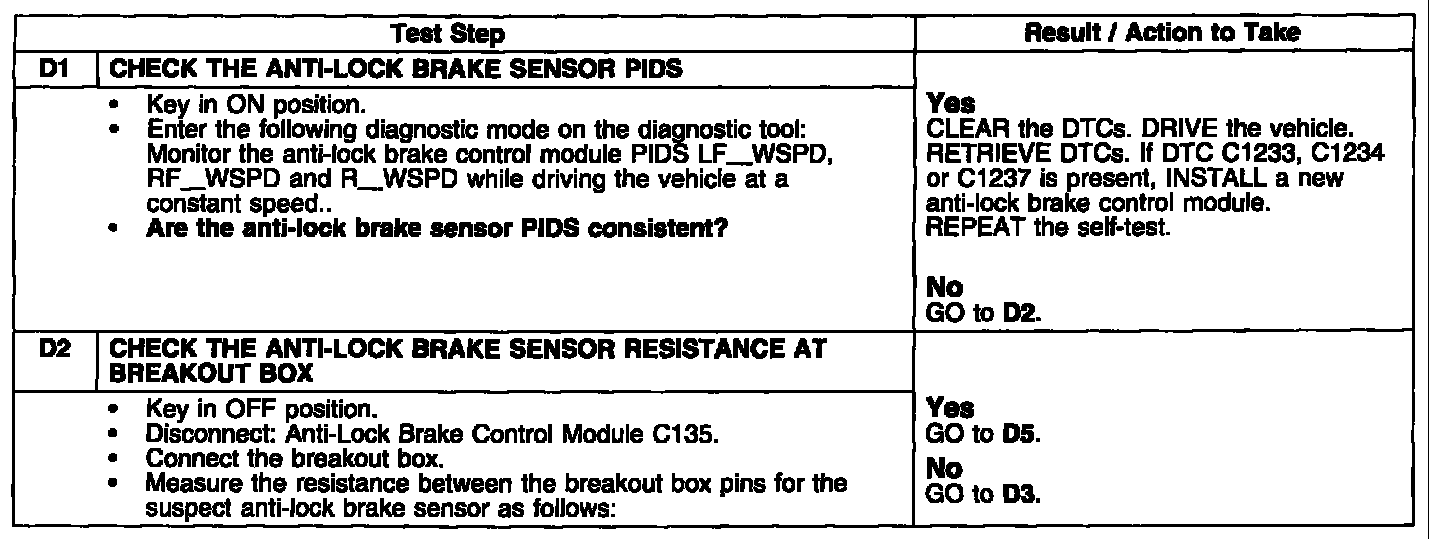

PINPOINT TEST D: DTCS C1233, C1234 AND C1237-ANTI-LOCK BRAKE SENSOR OUTPUT FAILURE Test D1-D2:
Test D2 Continued:

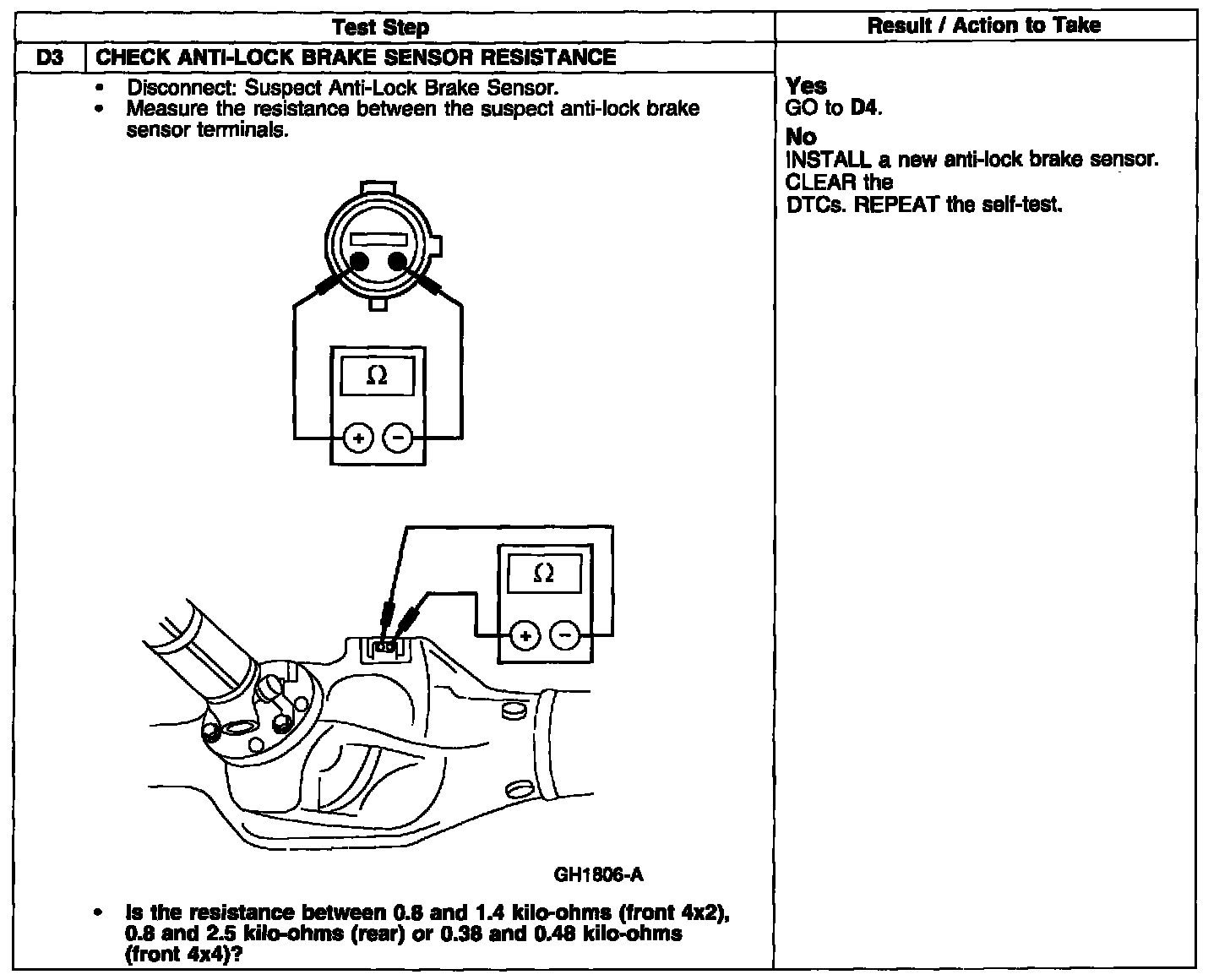

Test D3:

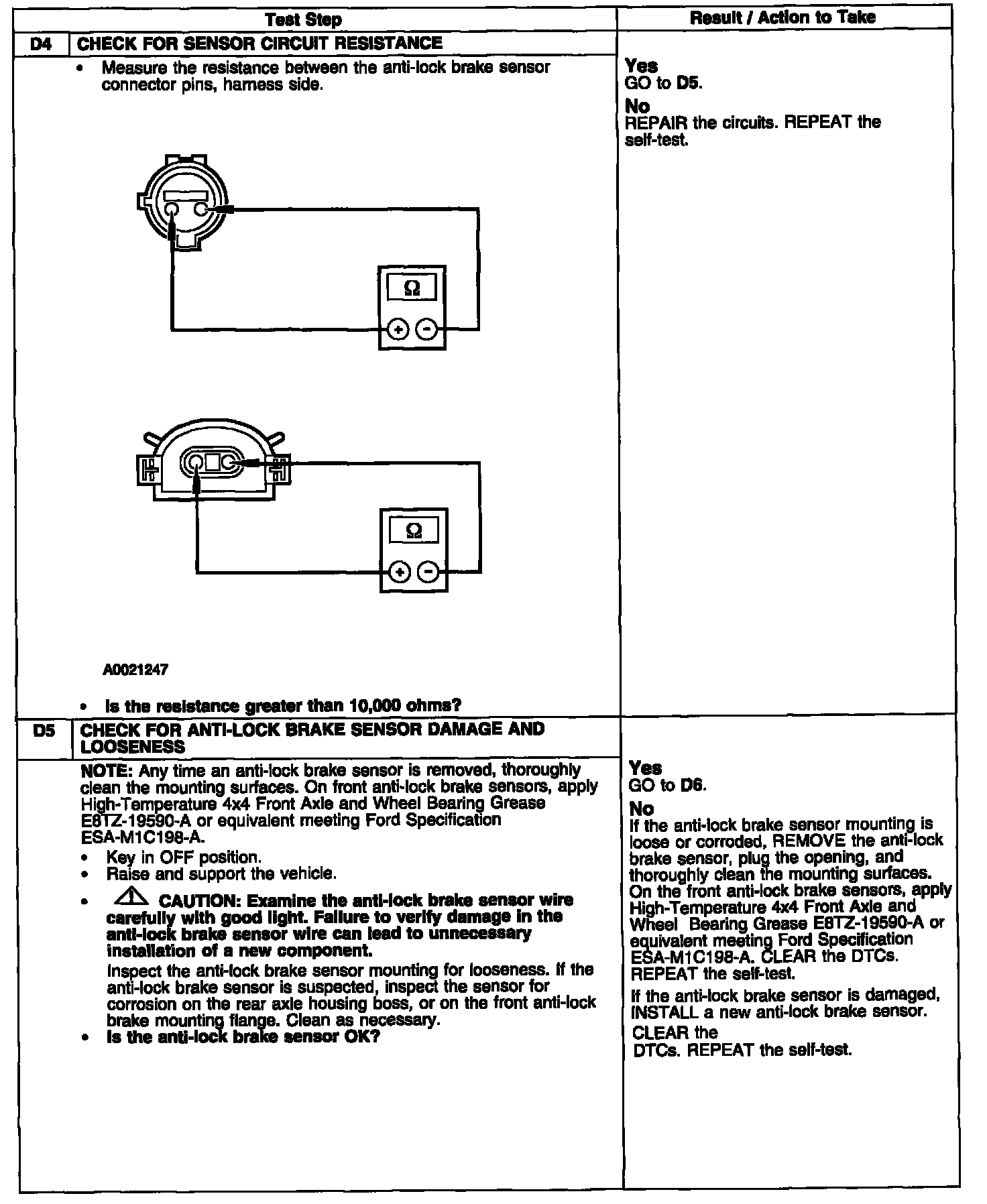

Test D4-D5:

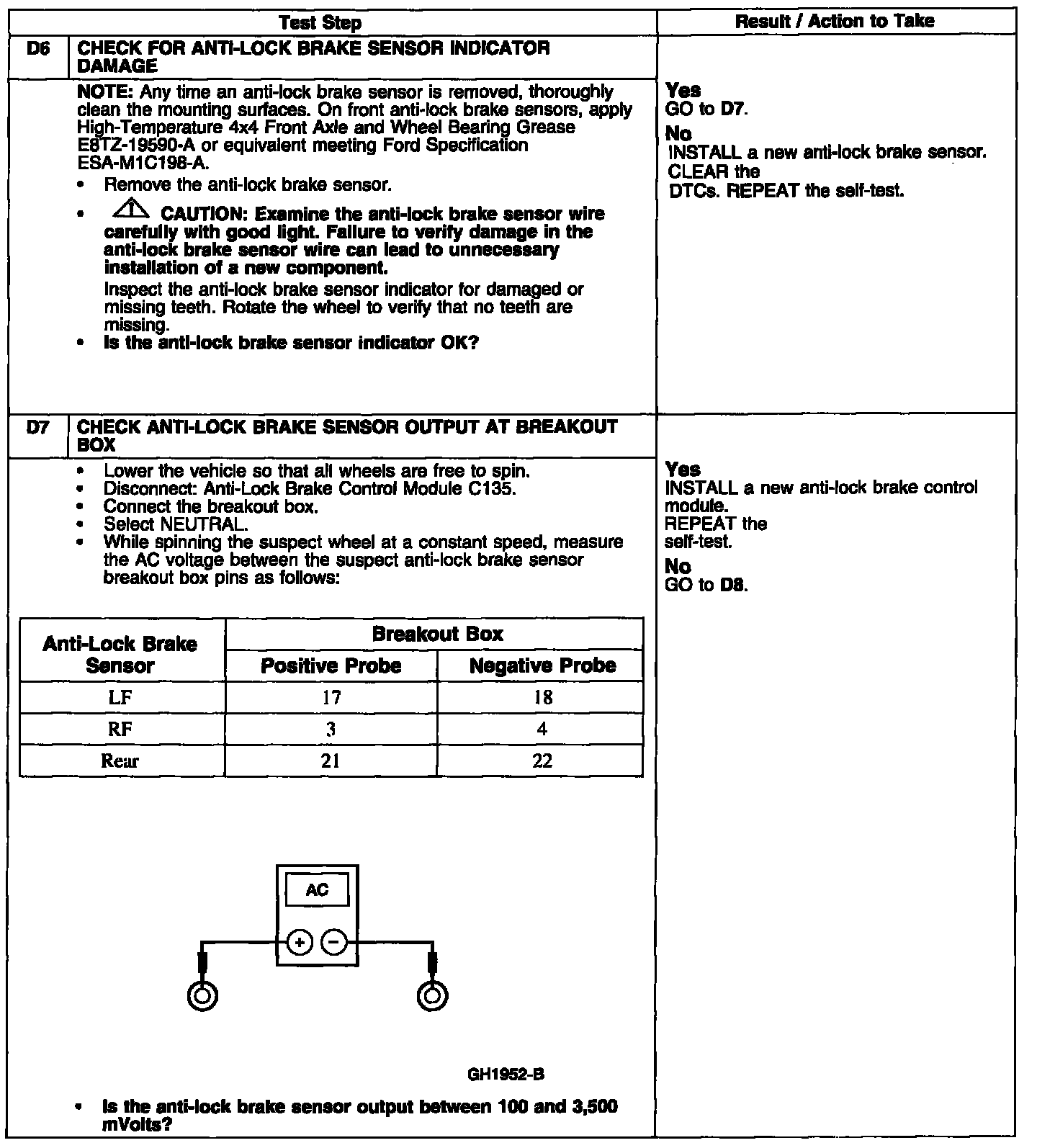

Test D6-D7:

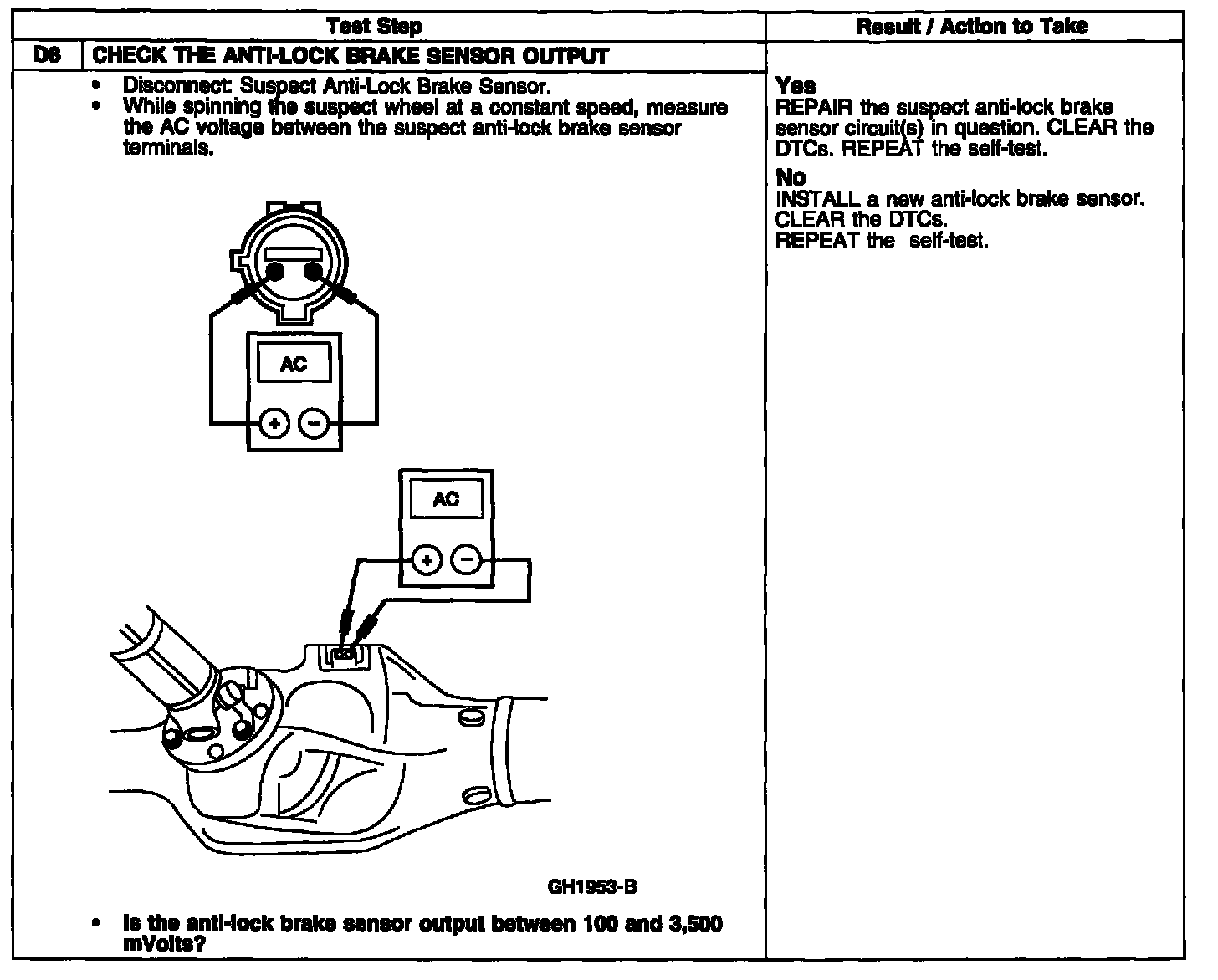

Test D8:
NOTE: Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces. On front anti-lock brake sensors, apply High-Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A or equivalent meeting Ford Specification ESA-MIC198-A.
