Sensor, Front

Sensor-Front 4x2

Removal and Installation
1. Raise and support the vehicle.





2. Disconnect the front anti-lock brake sensor wire from the vehicle frame.
1 Disconnect the electrical connector.
2 Unclip the front anti-lock brake sensor wire from the vehicle frame.

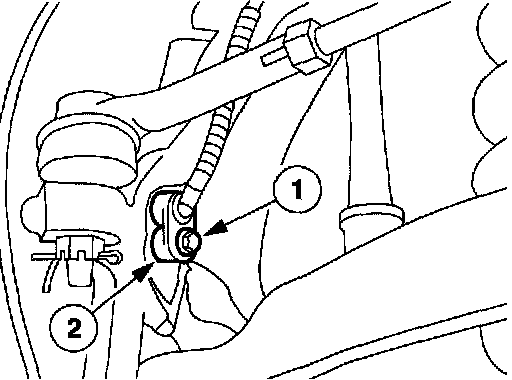

3. Remove the front anti-lock brake sensor.
1 Remove the bolt.
2 Remove the front anti-lock brake sensor.





4. NOTE: Plug the sensor mount opening and thoroughly clean the mounting surface.

Apply grease. To install, reverse the removal procedure.
