Air Door: Service and Repair

REMOVAL
1. Remove the plenum chamber.

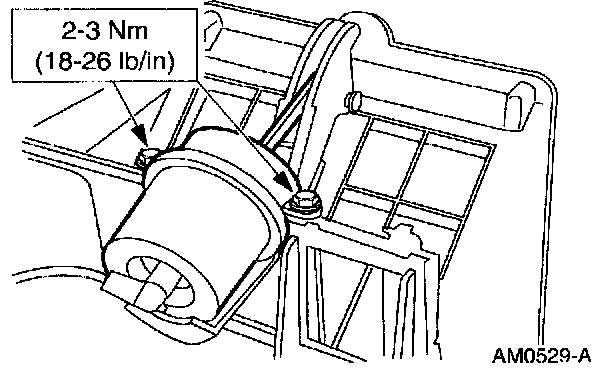

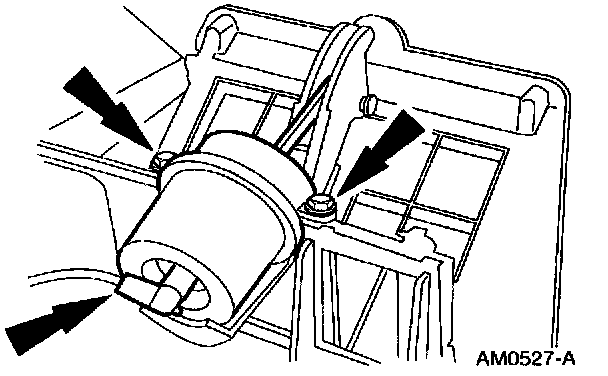

2. Remove the screws from the air inlet duct door vacuum control motor and disconnect the vacuum hose.

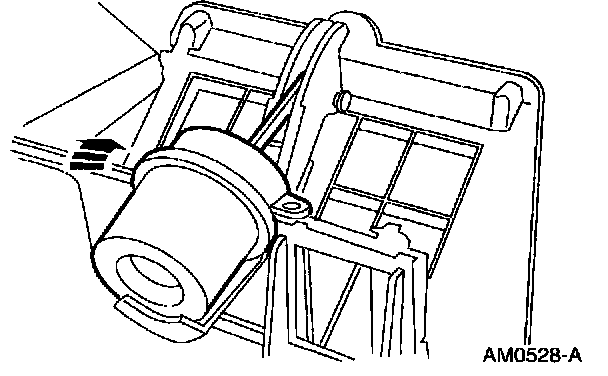

3. Rotate the vacuum control motor up, disengage the lever and remove the vacuum control motor.

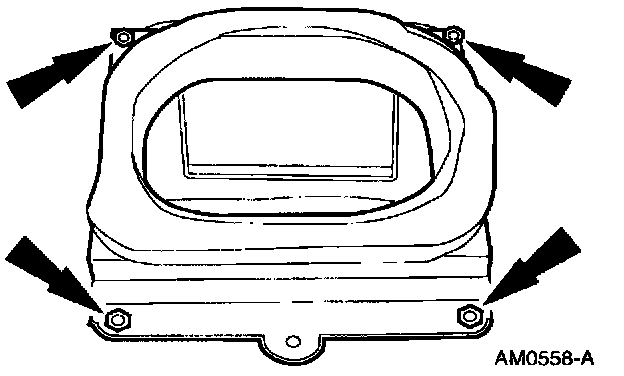

4. Remove the screws and remove the air inlet duct cover.

5. Remove the pin and remove the air inlet duct door.

INSTALLATION

1. To install, reverse the removal procedure.
