Test E

PINPOINT TEST E: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE - FROM REMOTE TRANSMITTER

Test E1-E3:

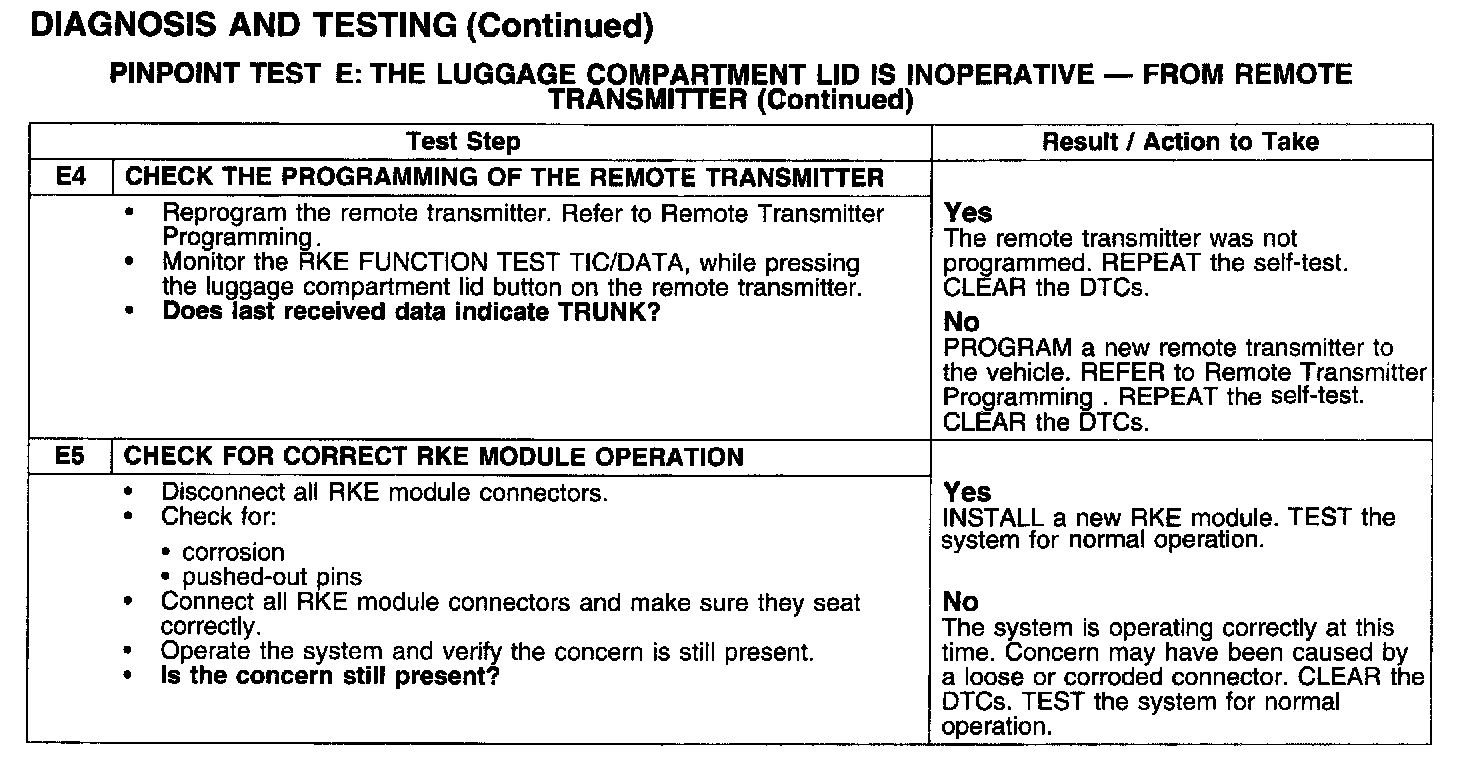

Test E4-E5:

Normal Operation
When the remote keyless entry (RKE) module receives the signal to open the luggage compartment lid from the remote transmitter, the RKE module sends the information via the communication network to the REM, which energizes circuit 29S-AA83 (OG/GN) and supplies voltage to the luggage compartment lid release solenoid.

Possible Causes
- RKE module
- remote transmitter battery
- remote transmitter
- remote transmitter programming
