Test H

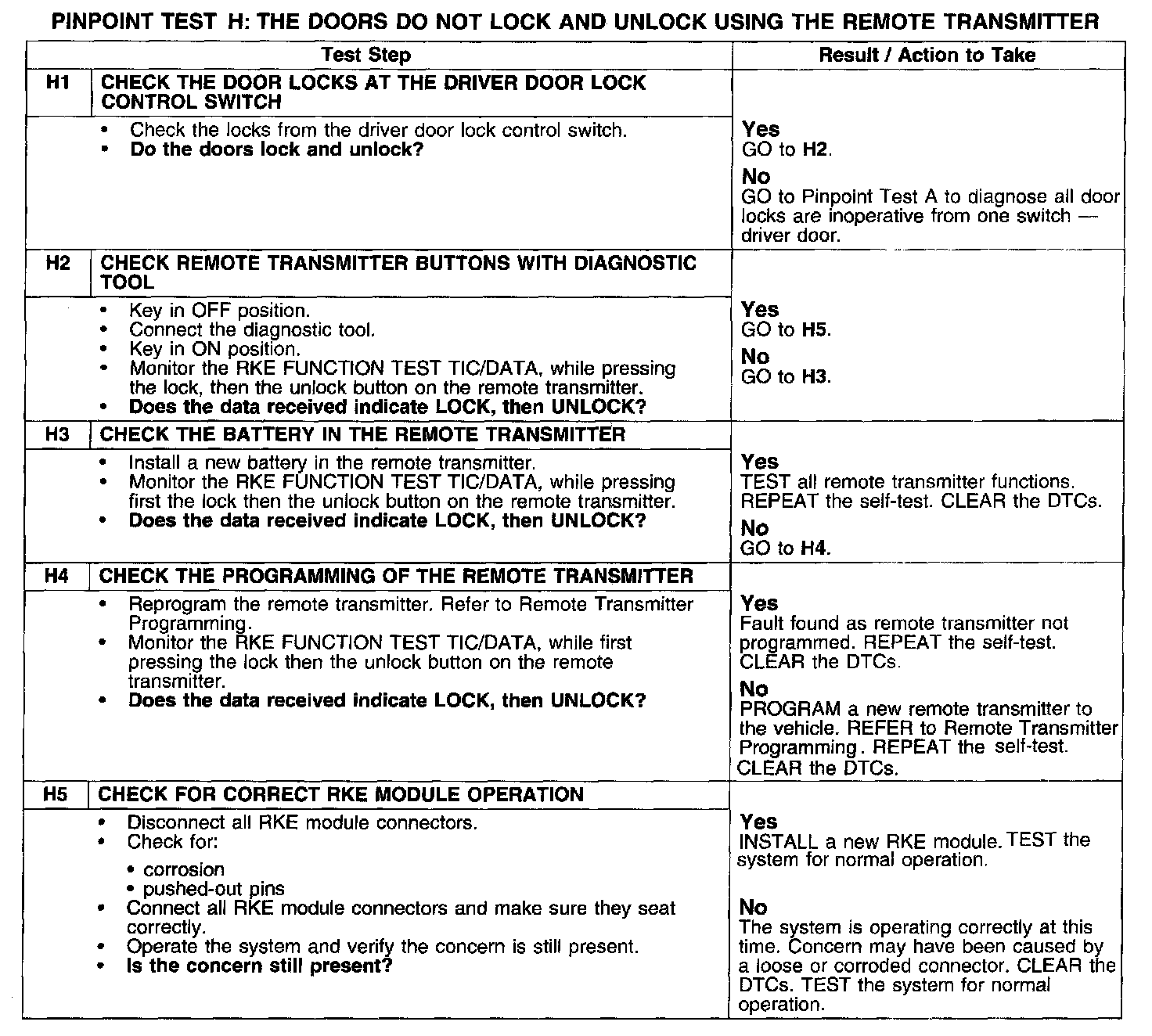

PINPOINT TEST H: THE DOORS DO NOT LOCK AND UNLOCK USING THE REMOTE TRANSMITTER

Test H1-H5:

Normal Operation
When the remote keyless entry (RKE) module receives the signal to lock or unlock the doors from the remote transmitter, the RKE module sends the information via the communication network to the REM. The REM will lock or unlock the doors.

Possible Causes
- remote transmitter battery
- remote transmitter
- remote transmitter programming
- RKE module
