Seat Temperature Switch: Service and Repair

HEATED SEAT SWITCH

REMOVAL


HEATED SEAT SWITCH:

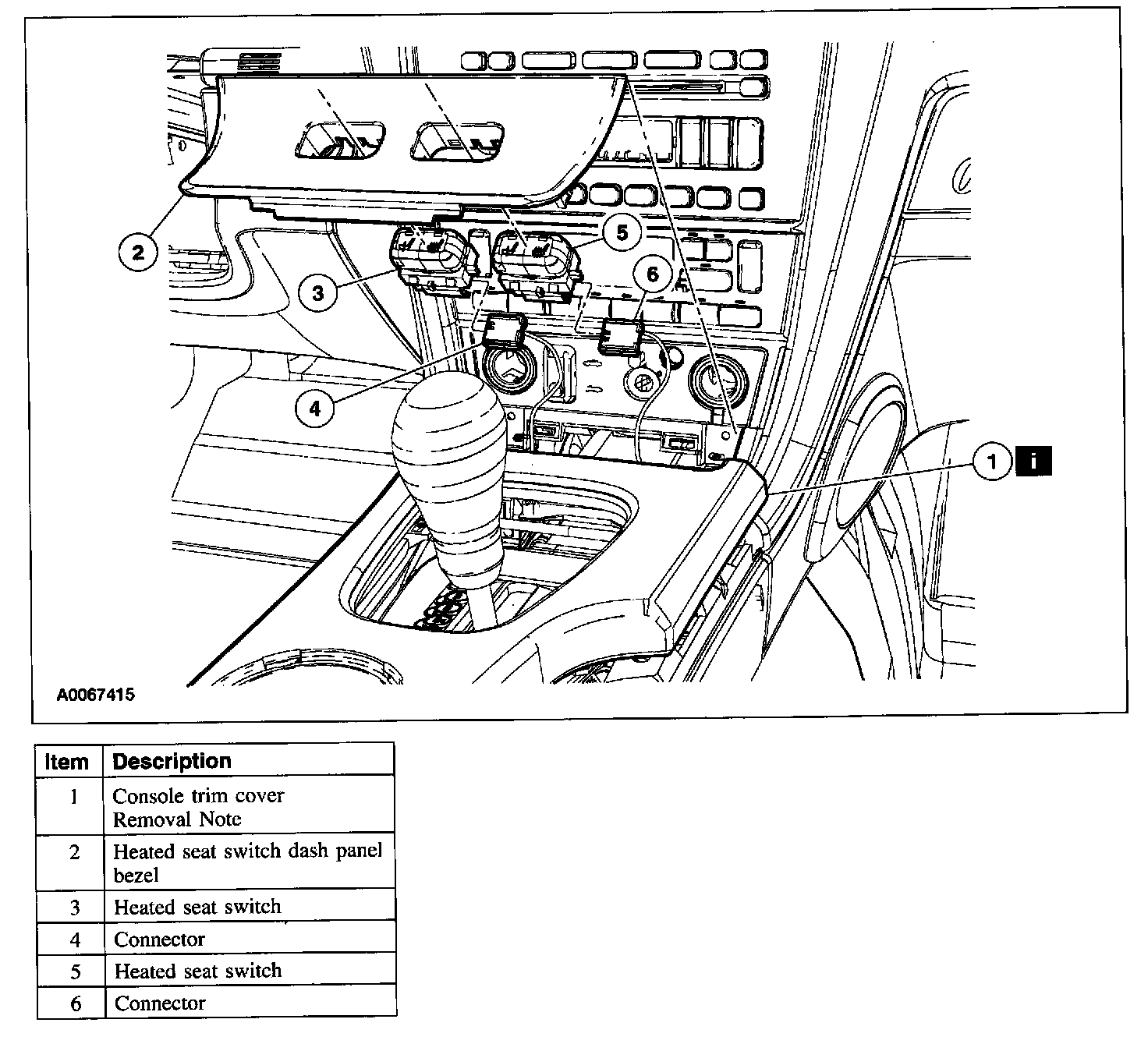

1. Remove the components in the order listed in the illustrations and table. To remove individual components, carry out only the steps shown in the table.

Item 1: Console Trim Cover Removal Note
1. Pull up the front of the console trim cover to release the front retainer clips to allow removal of the heated seat switch dash panel.

INSTALLATION
1. To install, reverse the removal procedure.
