Test K

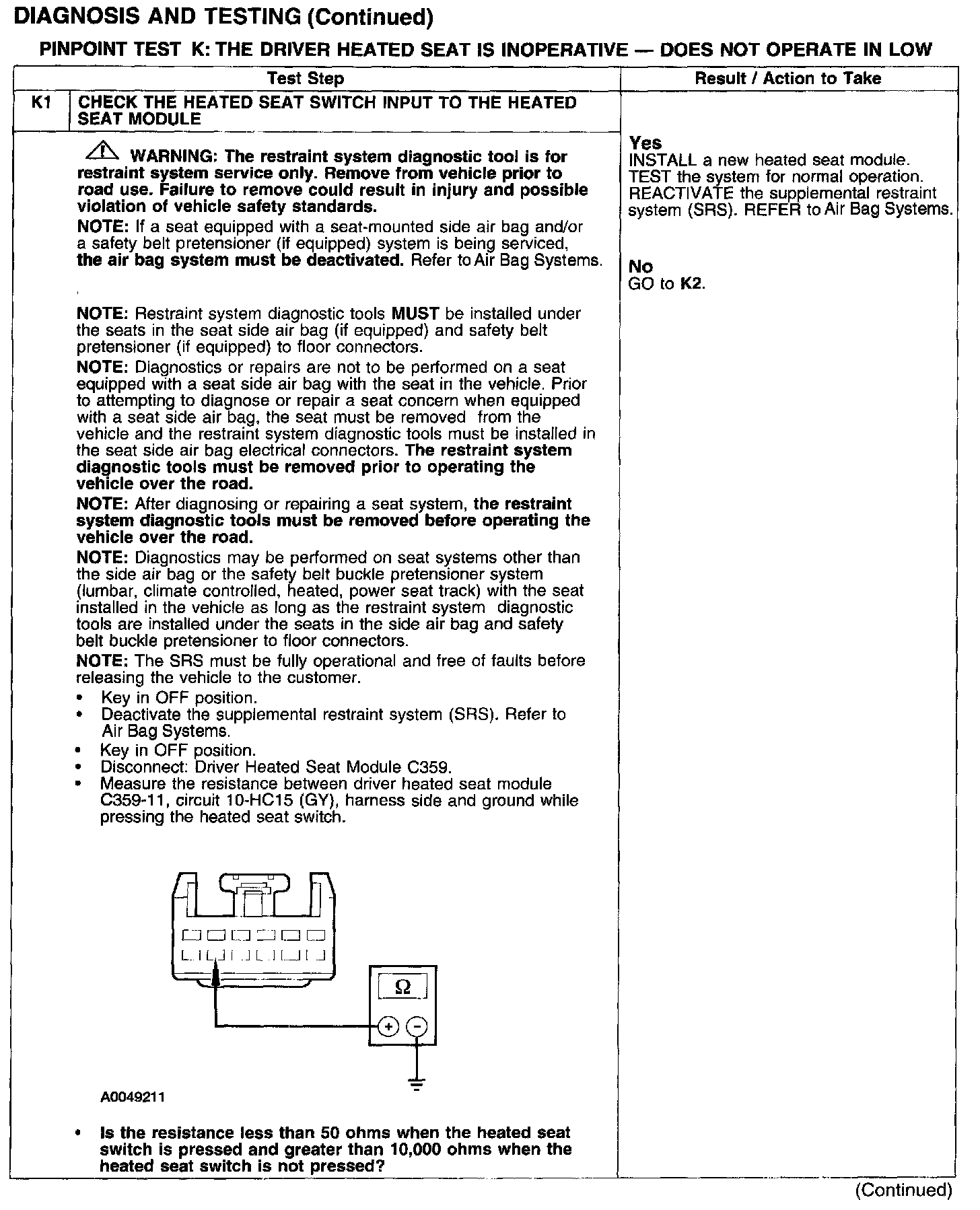

PINPOINT TEST K: THE DRIVER HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN LOWTest K1:

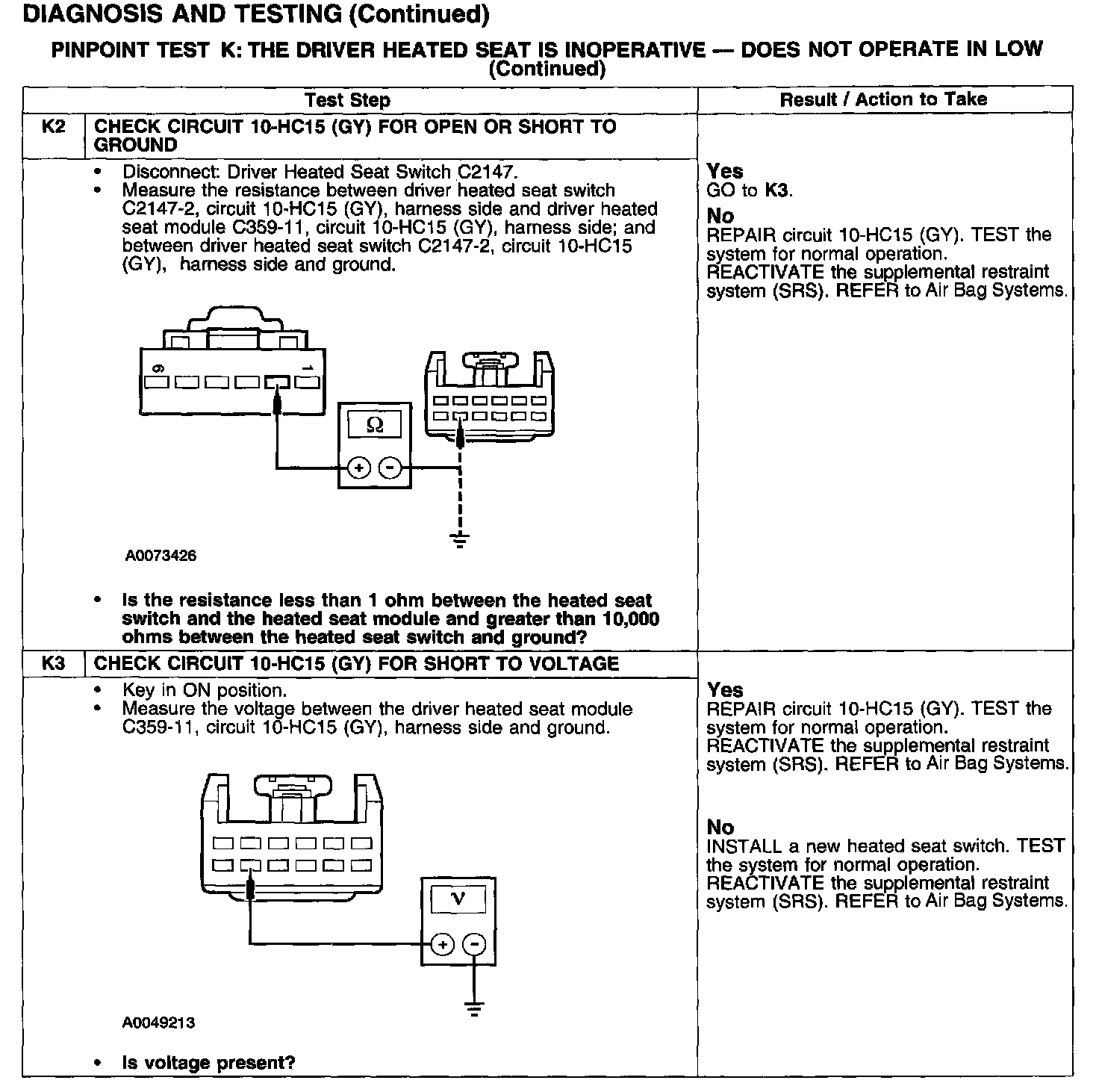

Test K2-K3:
Normal Operation The heated seat switch uses circuit 10-HC15 (GY) for the low setting input to the heated seat module.
Possible Causes A driver heated seat inoperative and does not operate in low can be caused by:
-
wiring, terminals, or connectors.
-
a faulty heated seat switch.
-
a faulty heated seat module.
