Test K

PINPOINT TEST K: THE DUAL TEMPERATURE CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

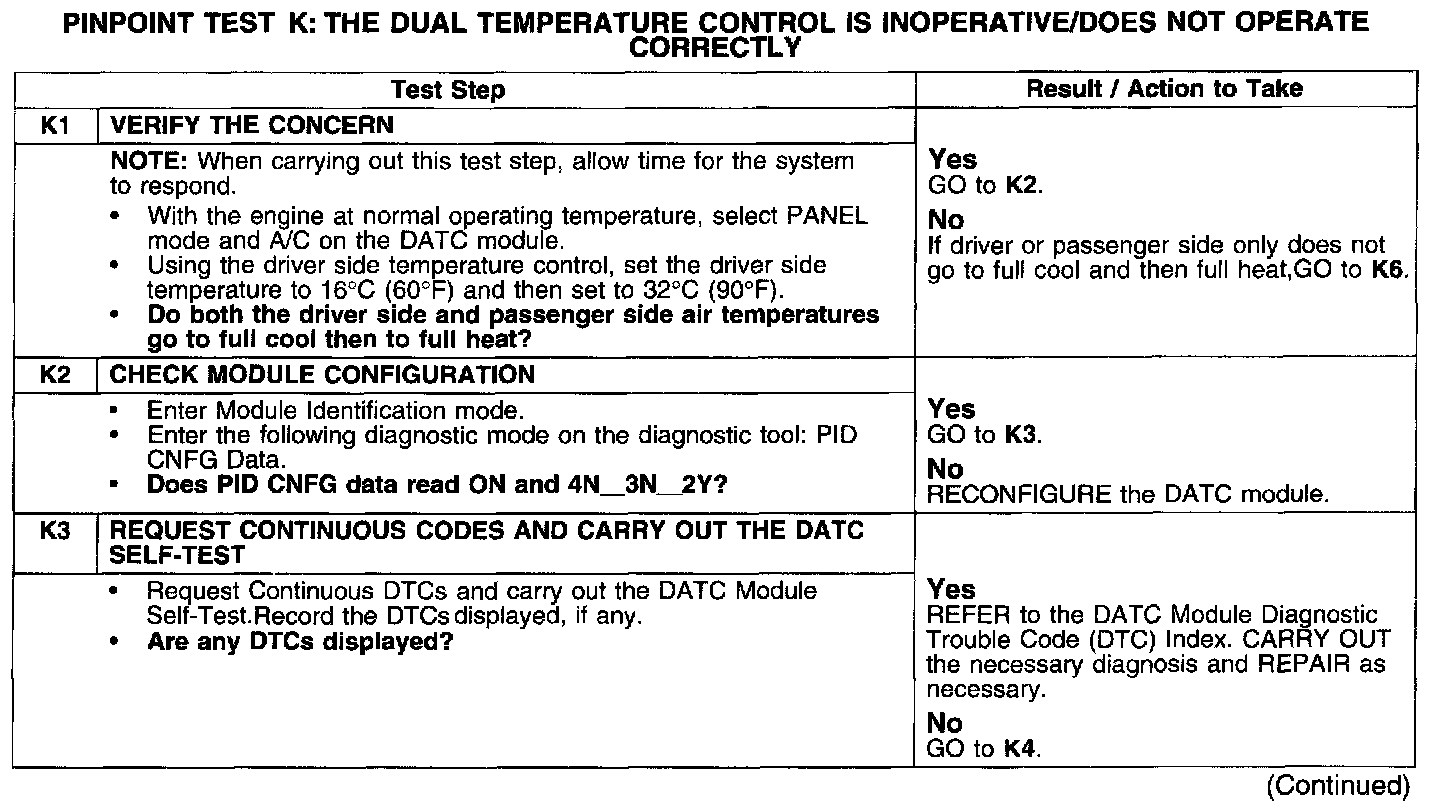

Test K1-K3:






Test K4-K7:

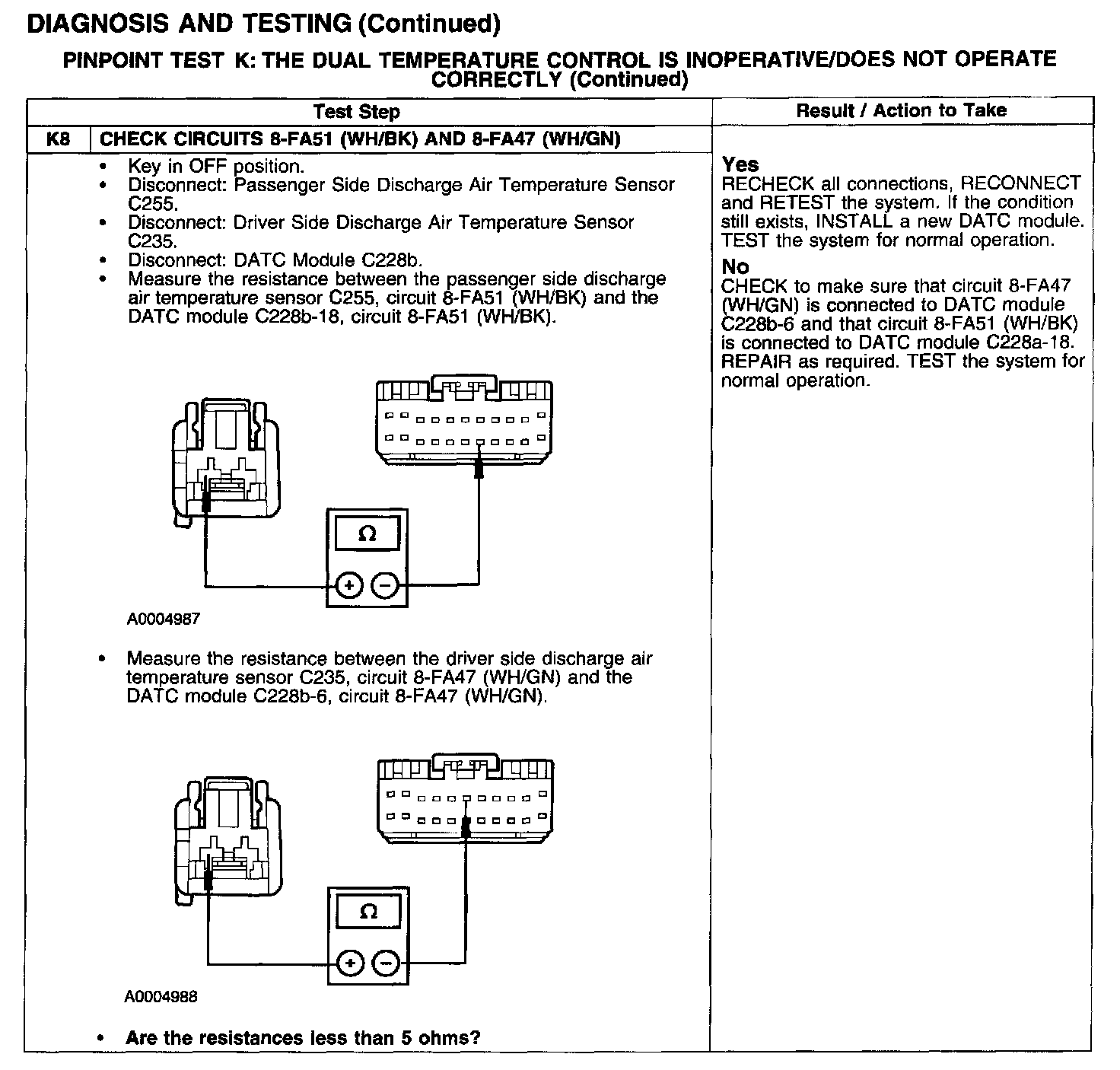

Test K8:






Normal Operation
Under normal operation the LH and RH discharge temperature sensors receive a ground from the Dual Automatic Temperature Control (DATC) module through circuit (LH) 9-FA47 (BN/GN)/9-FA3 (BN/RD) and (RH) 9-FA51 (BN/YE)/9-FA3 (BN/RD). A 5-volt reference voltage is supplied to the LH and RH discharge temperature sensors from the DATC module through circuits (LH) 8-FA47 (WH/GN) and (RH) 8-FA51 (WH/BK)

Possible Causes
- An open in circuit 9-FA47 (BN/GN) or 9-FA51 (BN/YE)
- DATC module.
