Ambient Light Sensor: Service and Repair

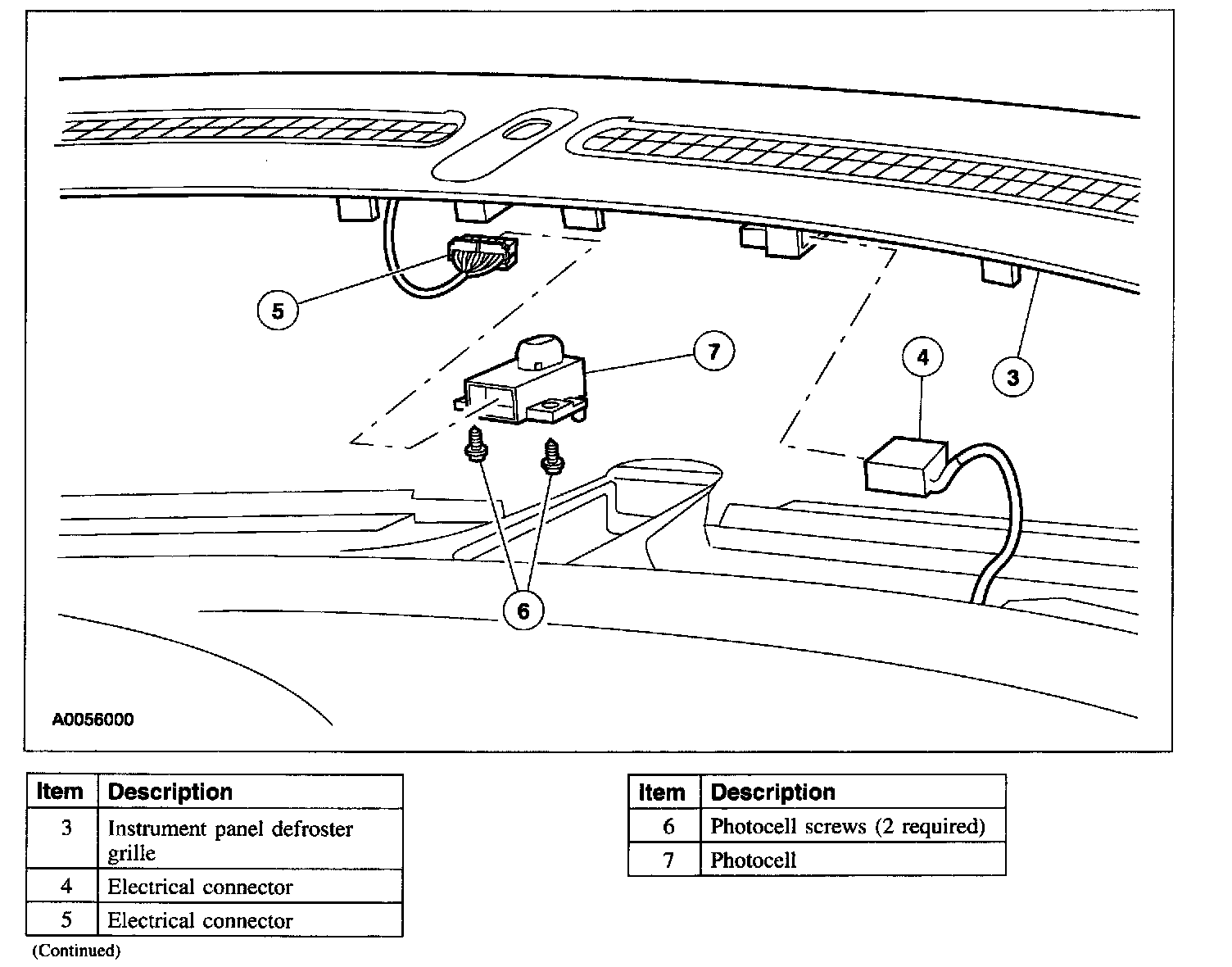

PHOTOCELLREMOVALPHOTOCELL / View 1 Of 2:
1.
View 1 of 2. Remove the components in the order indicated in the illustration and table.
PHOTOCELL / View 2 Of 2:
2.
View 2 of 2. Remove the components in the order indicated in the illustration and table.
INSTALLATION 1.
To install, reverse the removal procedure.
