Windshield Washer Pump: Service and Repair
WINDSHIELD WASHER PUMP AND RESERVOIRREMOVAL
1. Remove the RF wheel and tire assembly.

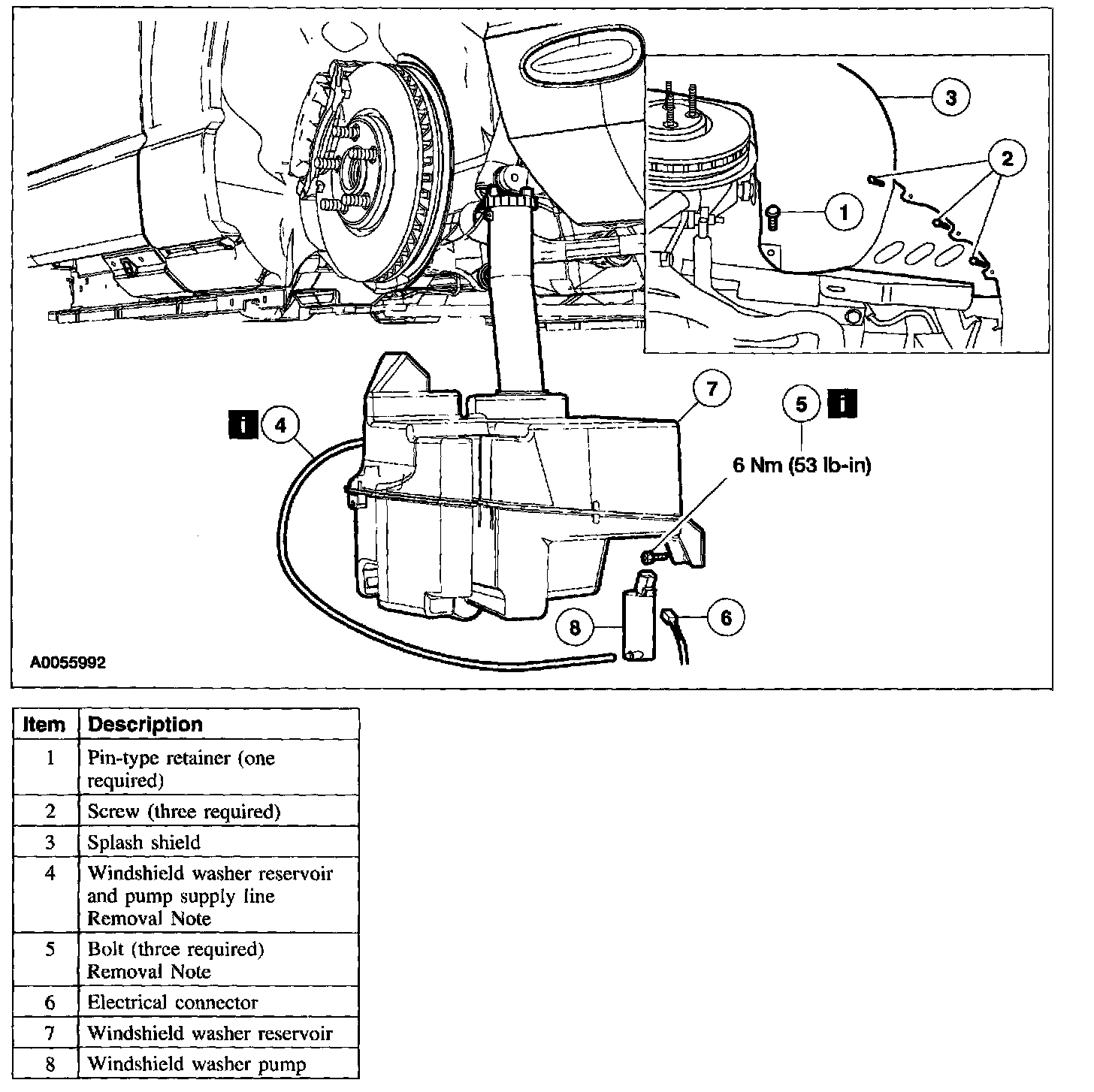

2. Remove the components in the order indicated in the illustration and table.
Item 4: Windshield Washer Reservoir and Pump Supply Line Removal Note
1. Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.
Item 5: Bolt Removal Note
1. Disconnect the electrical connector before removing the bolts.
INSTALLATION
1. To install, reverse the removal procedure.
