Overhead Console

OVERHEAD CONSOLE

REMOVAL

1. Disconnect the battery ground cable.

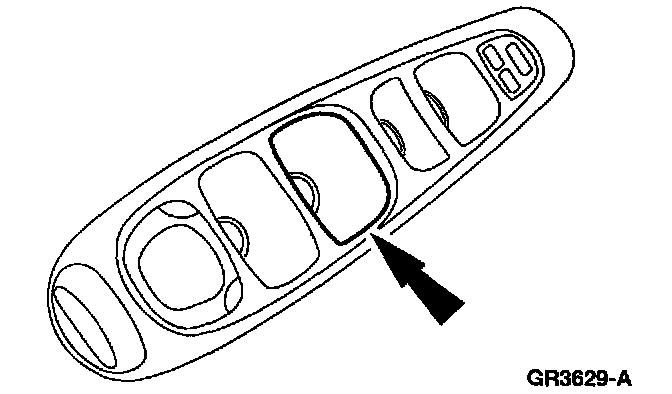

2. Open the sunglass storage compartment.

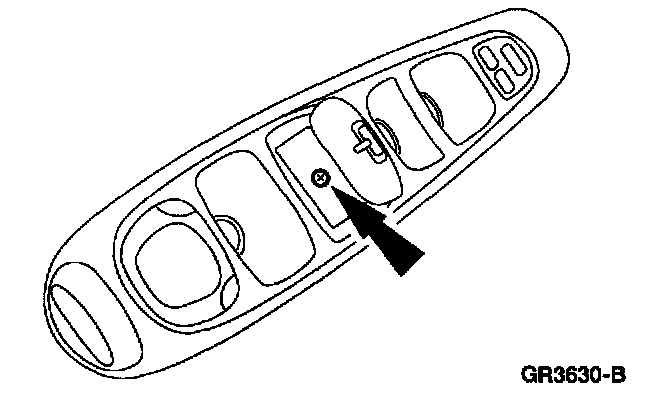

3. Remove the overhead console screw.

4. NOTE: Disengage the four clip attachments by first pulling down on the front end of the overhead console and then the rear end of the overhead console.

Remove the overhead console.
- Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.
