Initial Inspection
Inspection and Verification 1.
Verify the customer concern by operating the transaxle external control.
2.

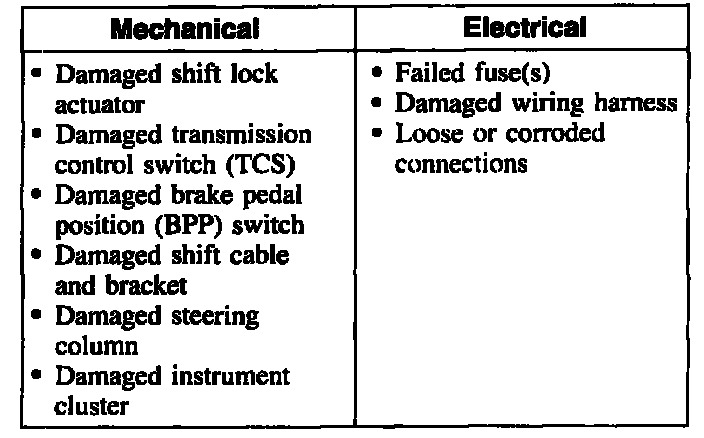

Visually inspect for obvious signs of mechanical and electrical damage, incorrect component installation, and component misalignment. Verify that all circuit-related systems are functioning correctly.
3.
If the fault is not visually evident, GO to Symptom Chart.
Diagnosis By Symptom
