Output Shaft Speed (OSS) Sensor
Output Shaft Speed (OSS) Sensor Removal and Installation 1.
Raise and support the vehicle.
2.
Remove the dual converter Y-pipe.
3.

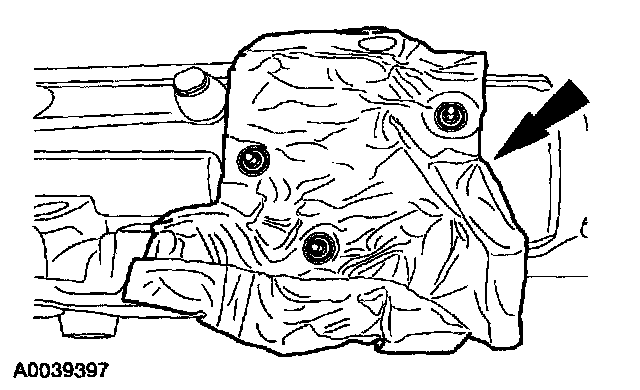

Remove the heat shield.
4.

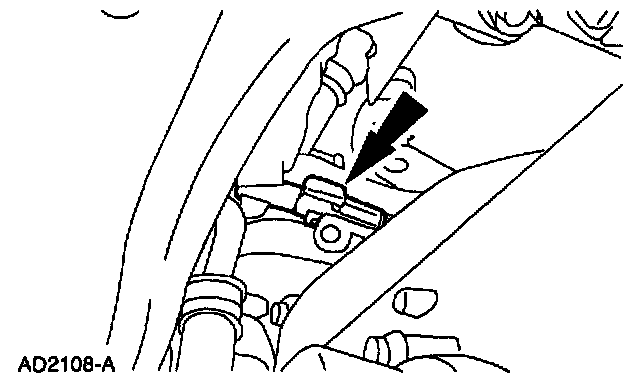

Disconnect the Output Shaft Speed
(OSS) sensor connector.
5.

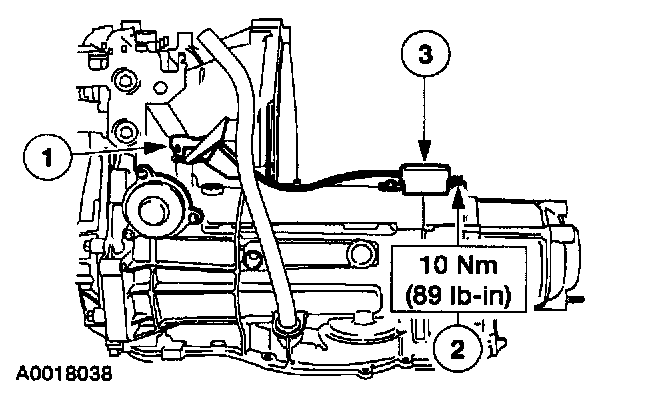

Remove the OSS sensor cover.
1
Remove the connector.
2
Remove the bolt.
3
Remove the cover.
6.

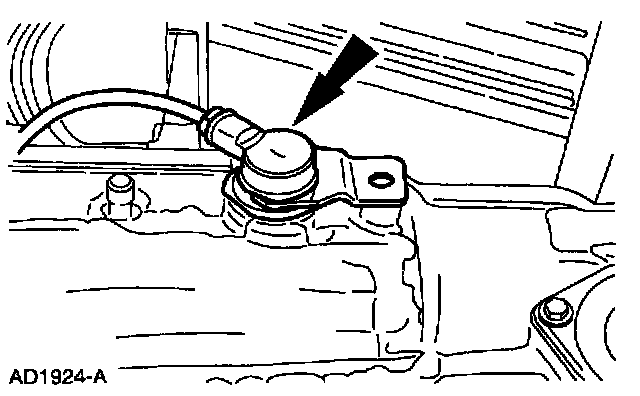

Remove the OSS sensor.
7.
To install, reverse the removal procedure.
