Front Door Glass Top Run

DOOR GLASS TOP RUN - FRONT

REMOVAL
1. Remove the front door window glass.







2. Remove the front door glass top run bolt.

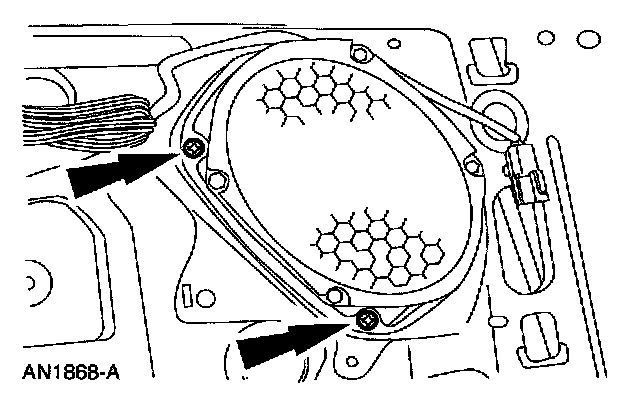

3. Remove the speaker screws.







4. Disconnect the electrical connector and remove the speaker.







5. Remove the outer weatherstrip.

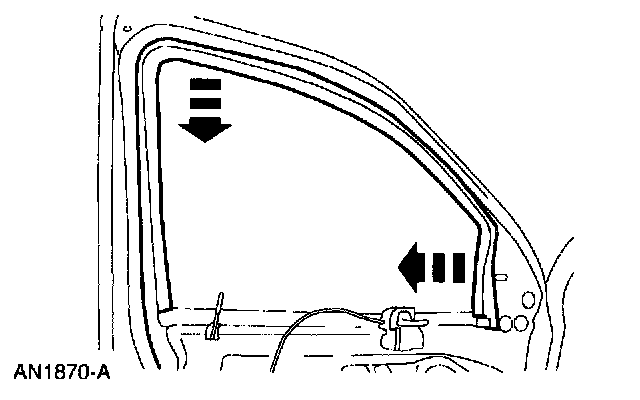

6. NOTE: The door glass top run is partially contained within the front door and must be routed out of the door panel for removal.

Remove the door glass top run assembly.

INSTALLATION







1. To install, revere the removal procedure.
