Air Register: Service and Repair

DRIVER SIDE AND CENTER REGISTERS

REMOVAL
1. Remove the instrument cluster finish panel.

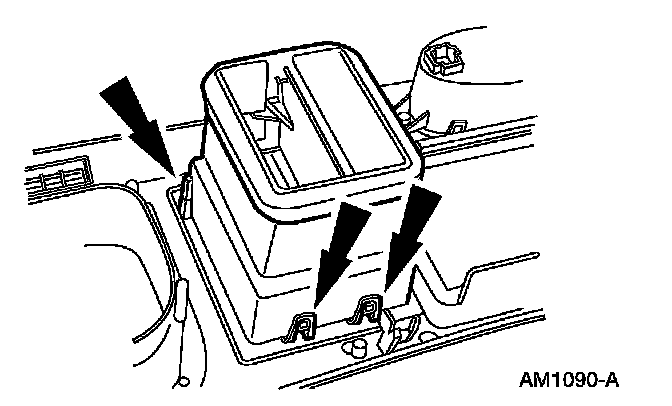

2. Disengage the four lock tabs and remove the register assemblies.

INSTALLATION
1. To install, reverse the removal procedure.

PASSENGER SIDE REGISTER

REMOVAL
1. Remove the passenger side airbag.

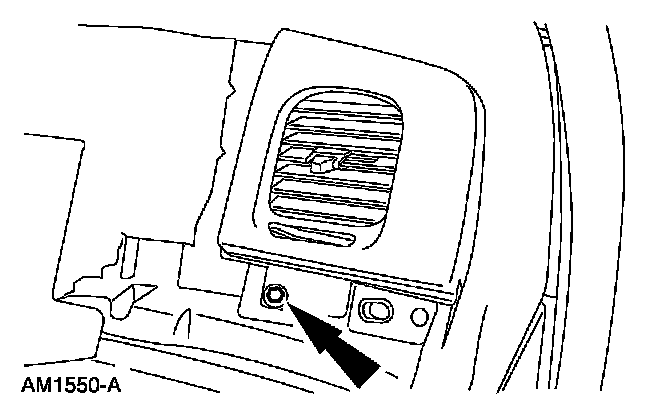

2. Remove the screw and the passenger side register.

INSTALLATION
1. To install, reverse the removal procedure.
