Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

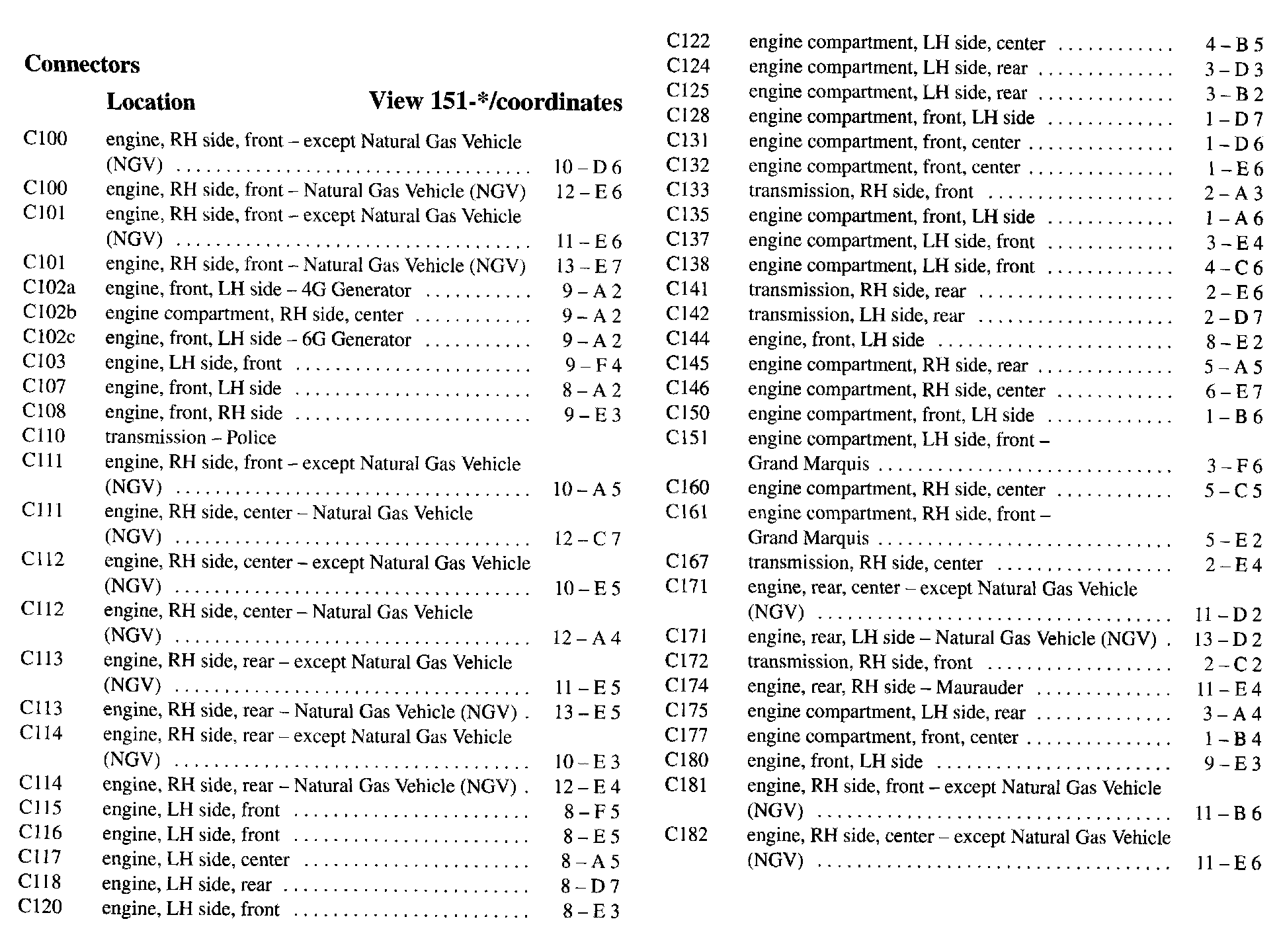

C100-C182:

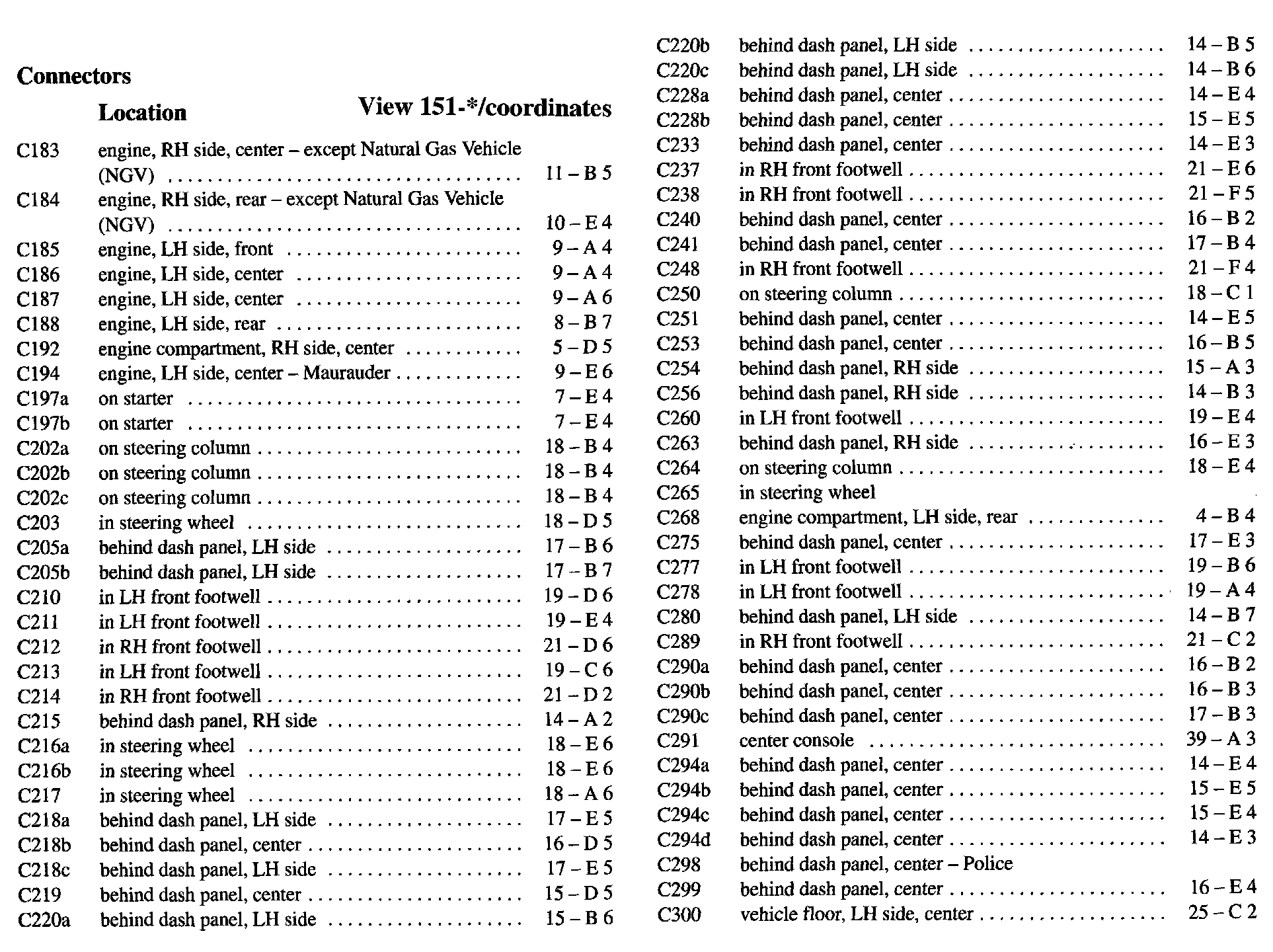

C183-C300:

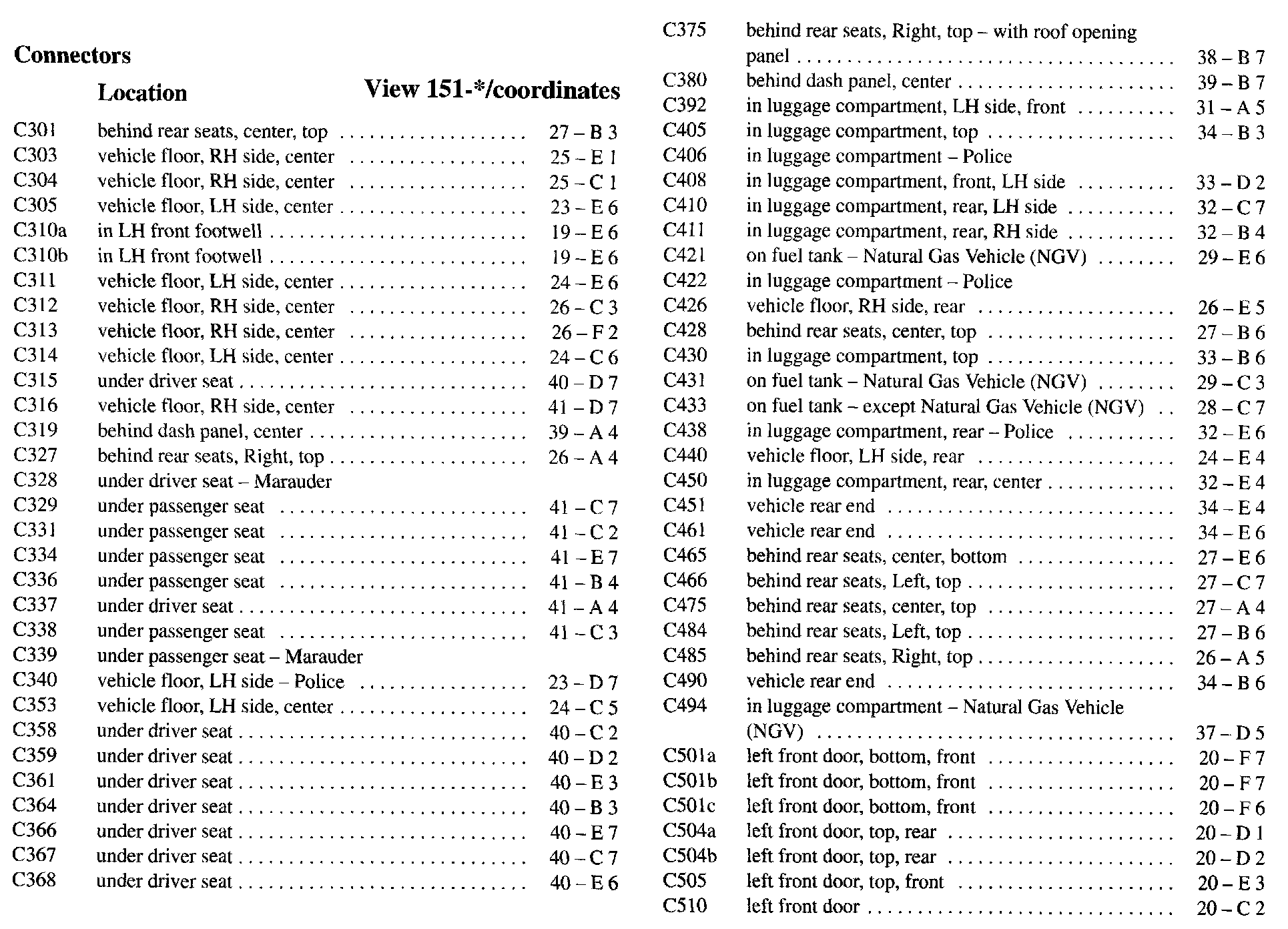

C301-C510:

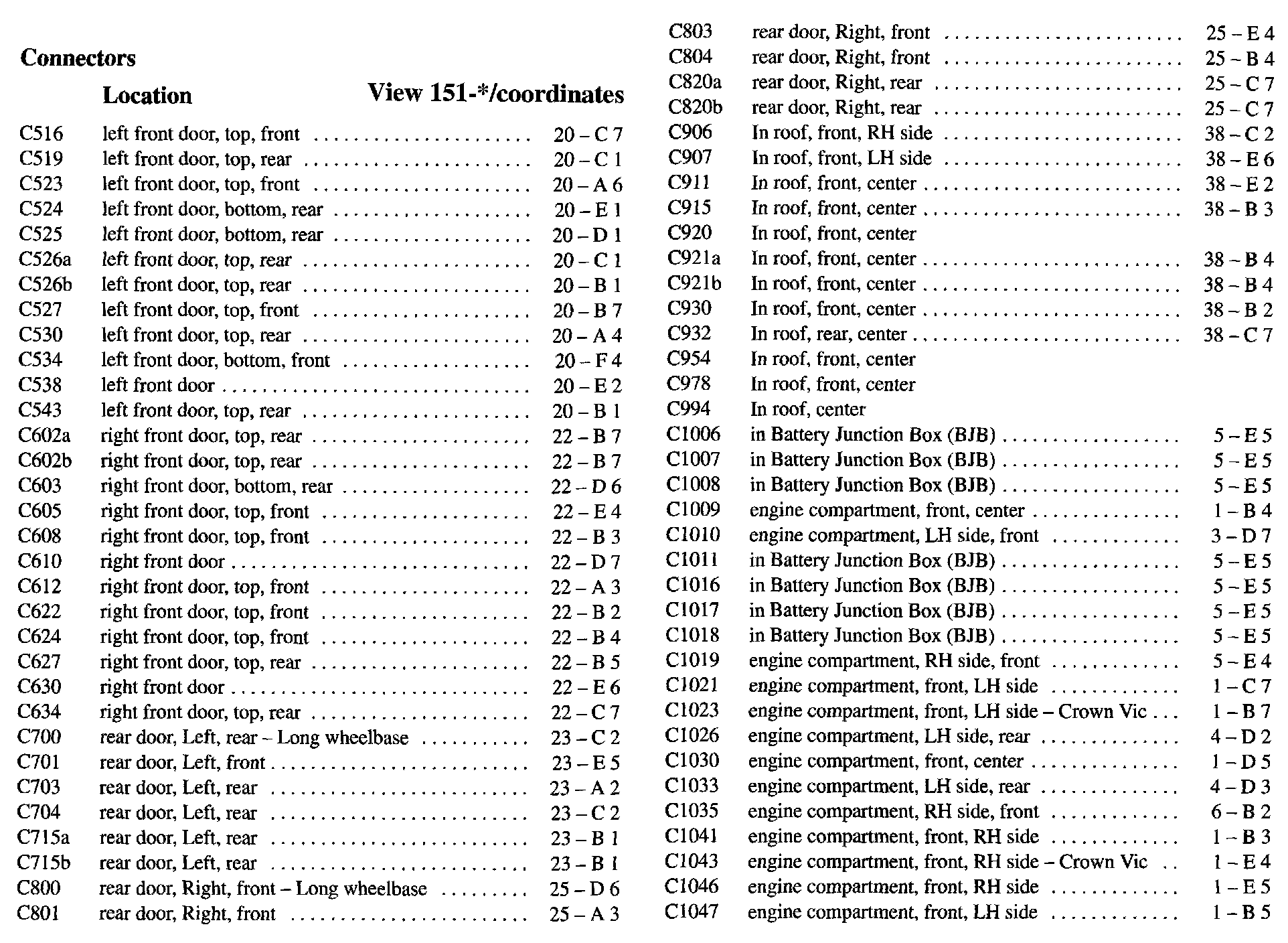

C516-C1047:

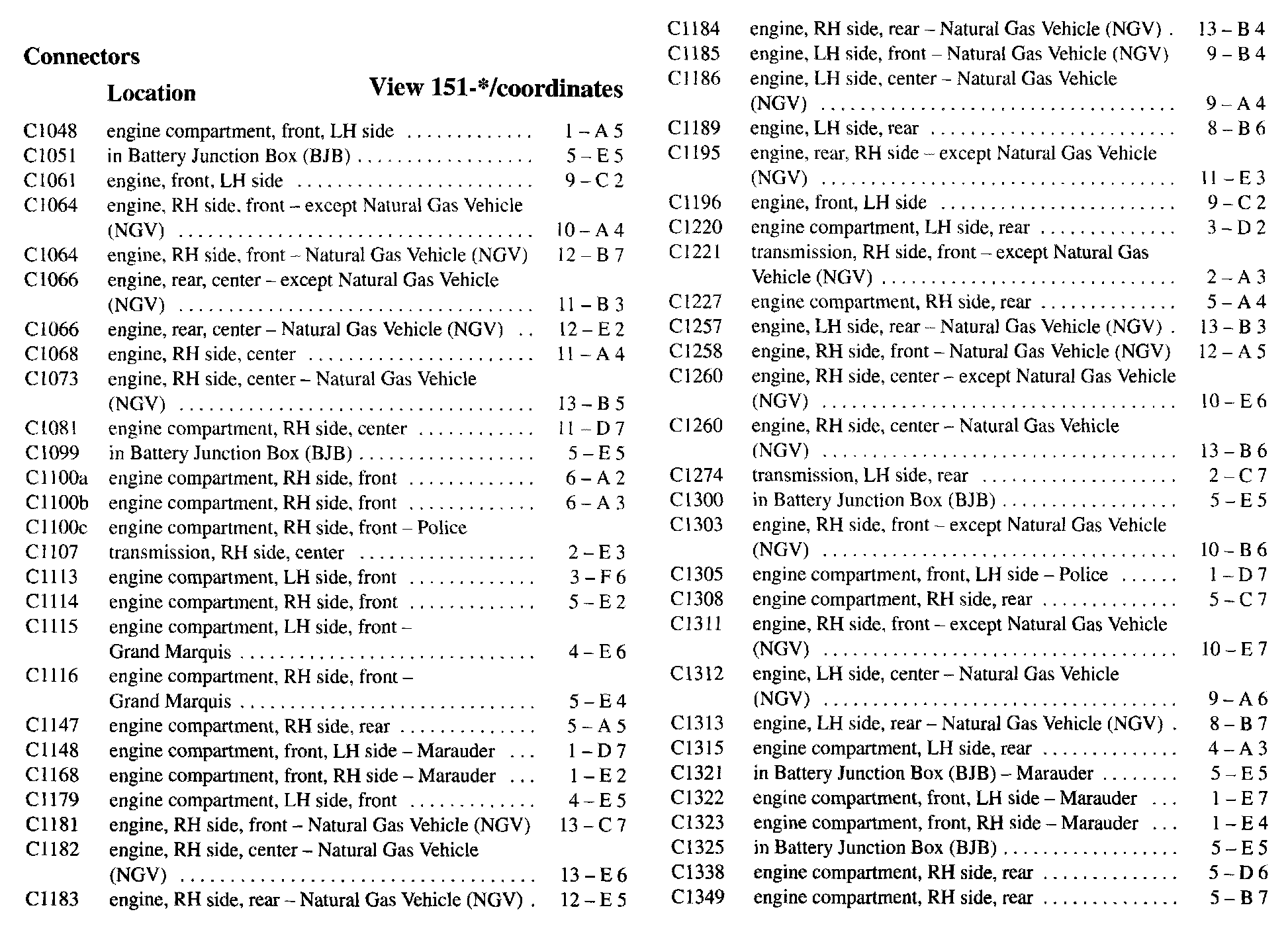

C1048-C1349:

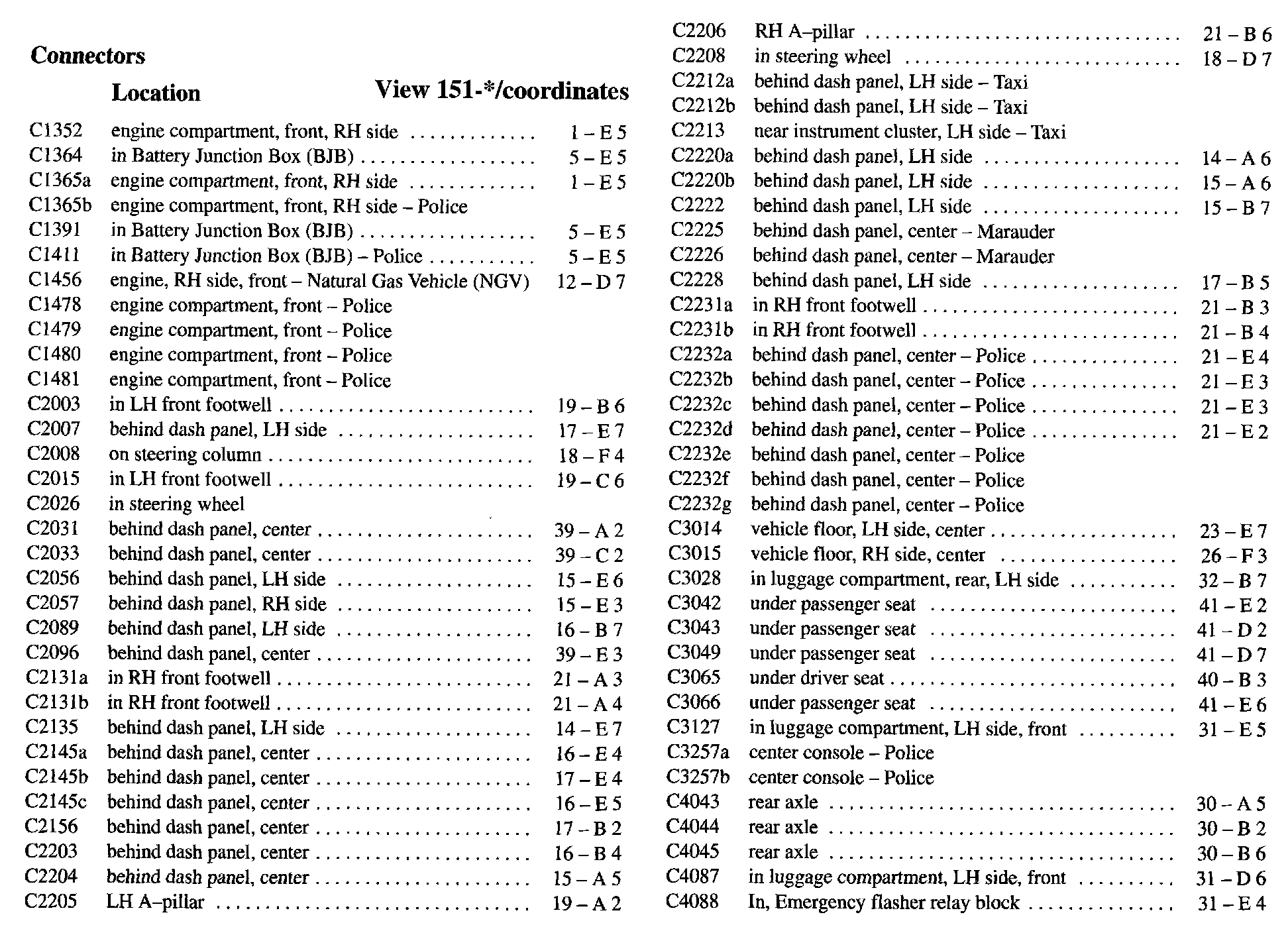

C1352-C4088:

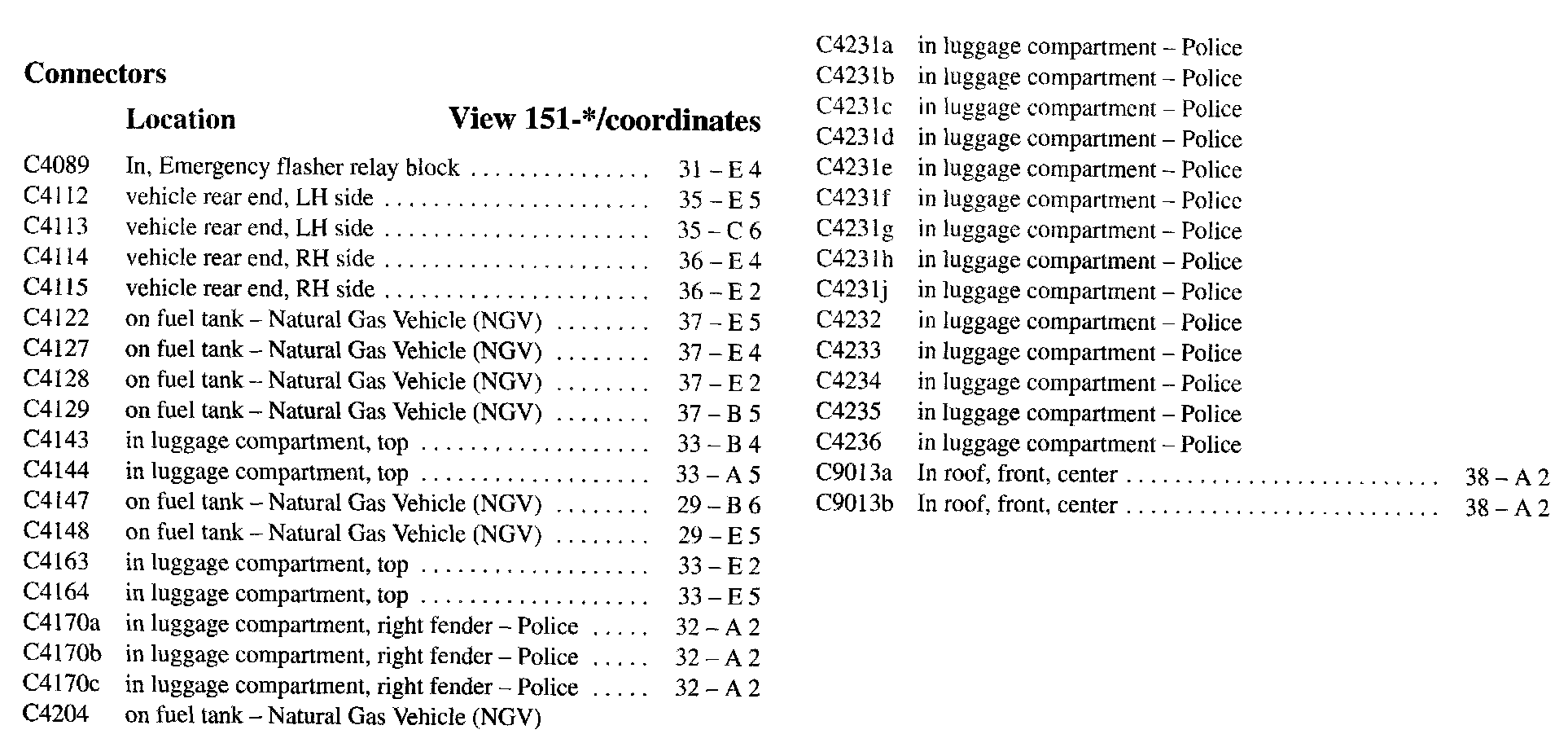

C4089-C9013b:
