Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

REMOVAL
1. Remove the evaporative emission (EVAP) canister and bracket assembly.

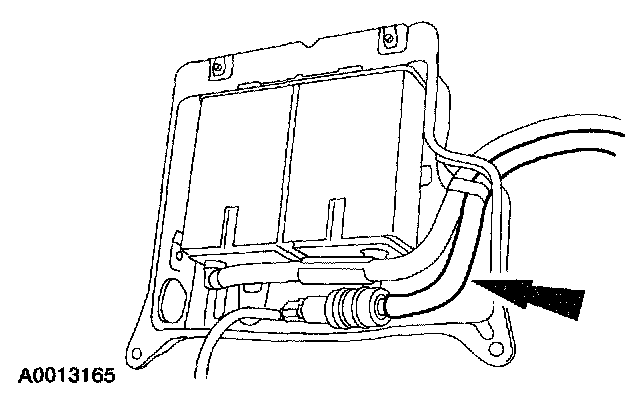

2. Disconnect the canister vent solenoid vent hose.

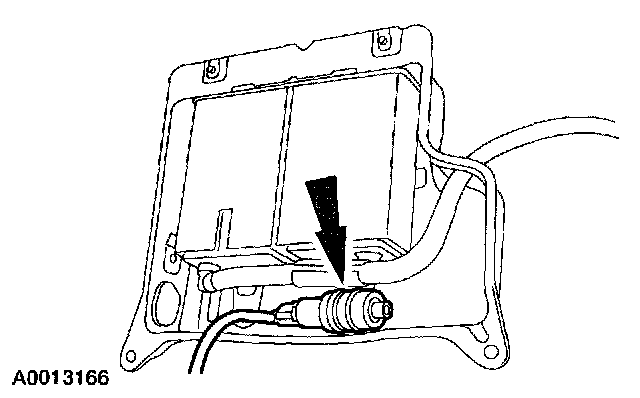

3. Remove the canister vent solenoid.

INSTALLATION

1. NOTE: Lubricate the O-ring seal with MERPOL(R) O-Ring Seal Lubricant or equivalent meeting Ford specification ESE-M99B144B.

To install, reverse the removal procedure.
- Carry out the Leak Test. Evaporative Emission System Leak Test
- Carry out the Evaporative Emission Repair Verification Drive Cycle. Evaporative Emission Repair Verification Drive Cycle
