Sunroof / Moonroof Module: Service and Repair
ROOF OPENING PANEL MODULEREMOVAL AND INSTALLATION 1.
Remove the headliner.
2.

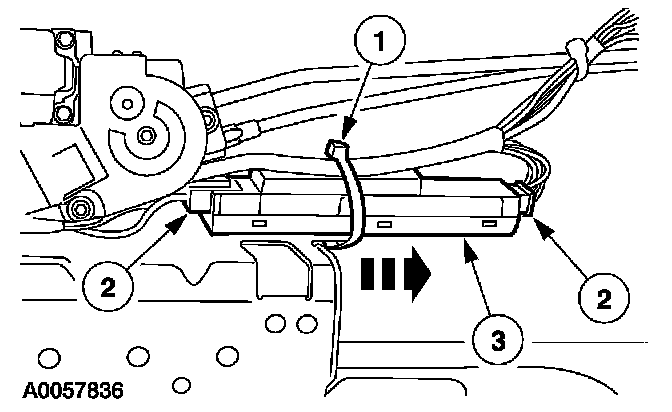

Remove the roof opening panel control module.
1
Remove the tie-strap.
2
Disconnect the electrical connectors.
3
Slide the module from the bracket.
