Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

Removal and Installation
1. Remove the air cleaner.
2. Disconnect the battery.

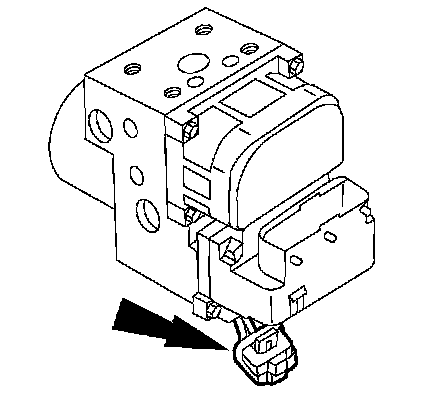

3. Disconnect the anti-lock brake system (ABS) module electrical connectors.
^ Disconnect the control module electrical connector.
^ Disconnect the pump motor electrical connector.

4. NOTE: Do not pry the module from the hydraulic control unit (HCU).





Remove the ABS module.
^ Remove the screws in the sequence shown.
^ Remove the module.

5. NOTE: Be sure the ABS module-to-HCU gasket is clean and installed correctly.

To install, reverse the removal procedure.
