Rear Door Window Regulator: Service and Repair

REAR DOOR WINDOW REGULATOR

Heavy Duty Riveter:

SPECIAL TOOL(S)

REMOVAL
1. Remove the rear door window glass.

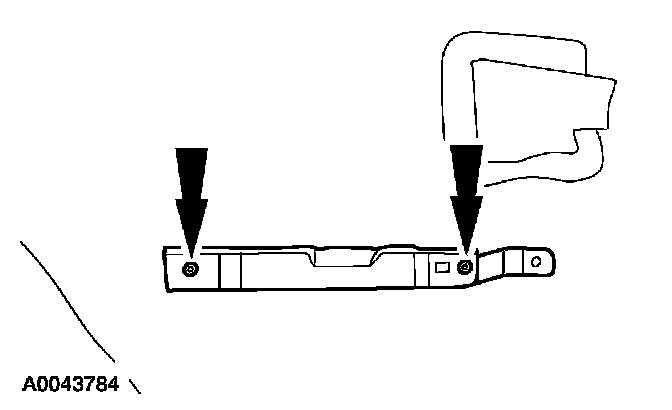

2. Remove the rivets and the pull handle bracket.

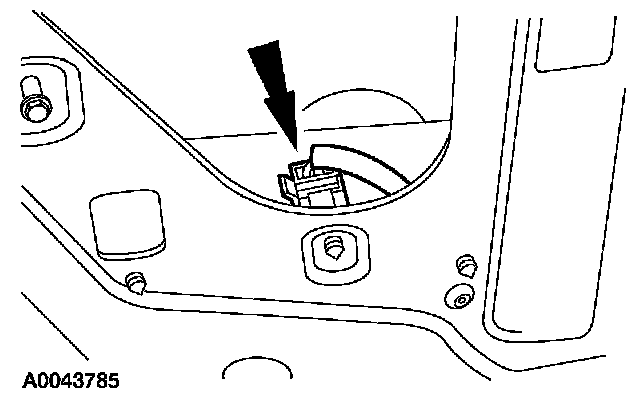

3. Disconnect the window motor electrical connector.

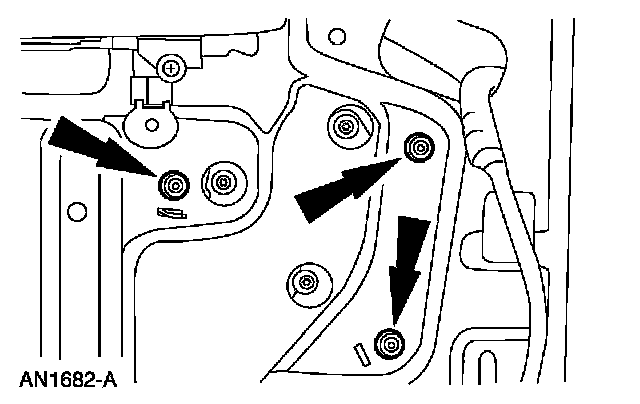

4. Remove the rear door window regulator rivets.

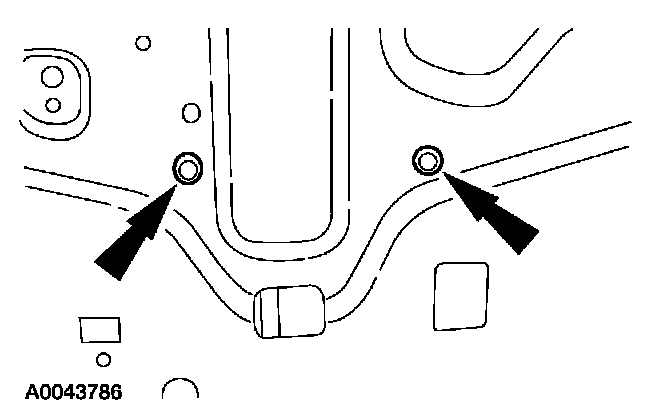

5. Remove the rear door window regulator nuts.







6. Remove the rear door window regulator.

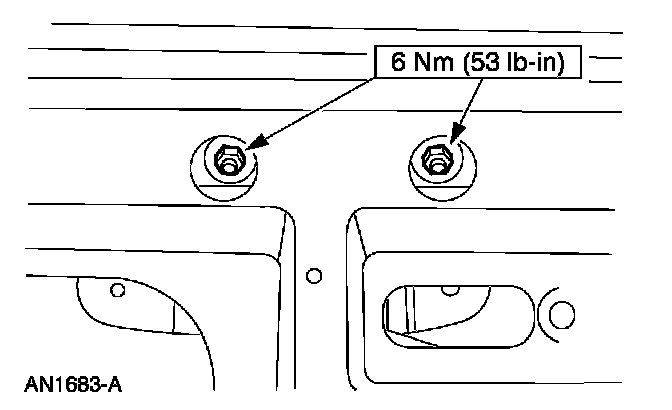

- Remove the screws.

INSTALLATION
1. To install, reverse the removal procedure.
- Use the special tool to install the rivets.
- Transfer parts as necessary.
