Oil Pan, Engine

Oil pan drain plug 13 Nm (10 ft. lbs.)





Oil pan bolts
Tighten the bolts in three stages.

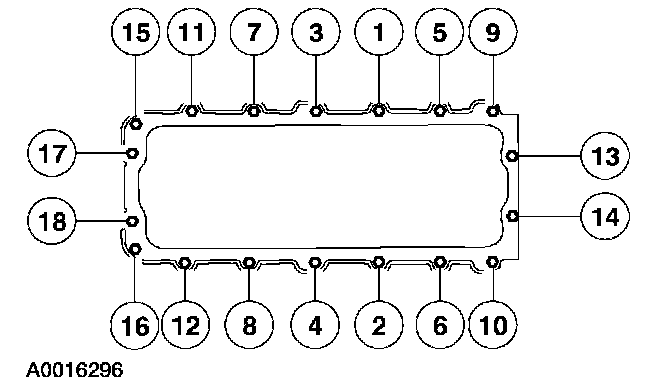

Tighten the bolts in the sequence shown.
Tighten to 2 Nm (18 inch lbs.).
Tighten to 20 Nm (15 ft. lbs.).
Tighten additional 90 degrees.
