Camshaft, Engine

Theoretical valve lift @ 0 lash-intake 9.254 mm (0.3643 inch)
Theoretical valve lift @ 0 lash-exhaust 8.6 mm (0.33858 inch)
Lobe lift-intake 8.9 mm (0.3504 inch)
Lobe lift-exhaust 8.7 mm (0.3425 inch)
Allowable lobe lift loss -
Journal diameter 25.960-25.980 mm (1.0221-1.0227 inch)
Camshaft journal bore inside diameter -
Camshaft journal-to-bearing clearance -
Runout -
End play 0.080-0.220 mm (0.00315-0.00866 inch)

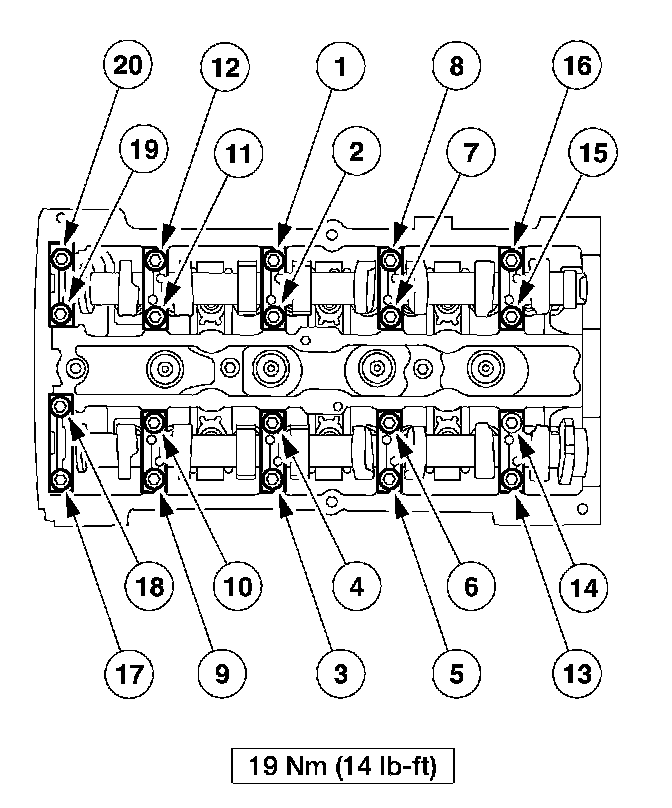

Camshaft cap bolts 19 Nm (14 ft. lbs.)
Camshaft sprocket bolts 68 Nm (50 ft. lbs.)
