Test B

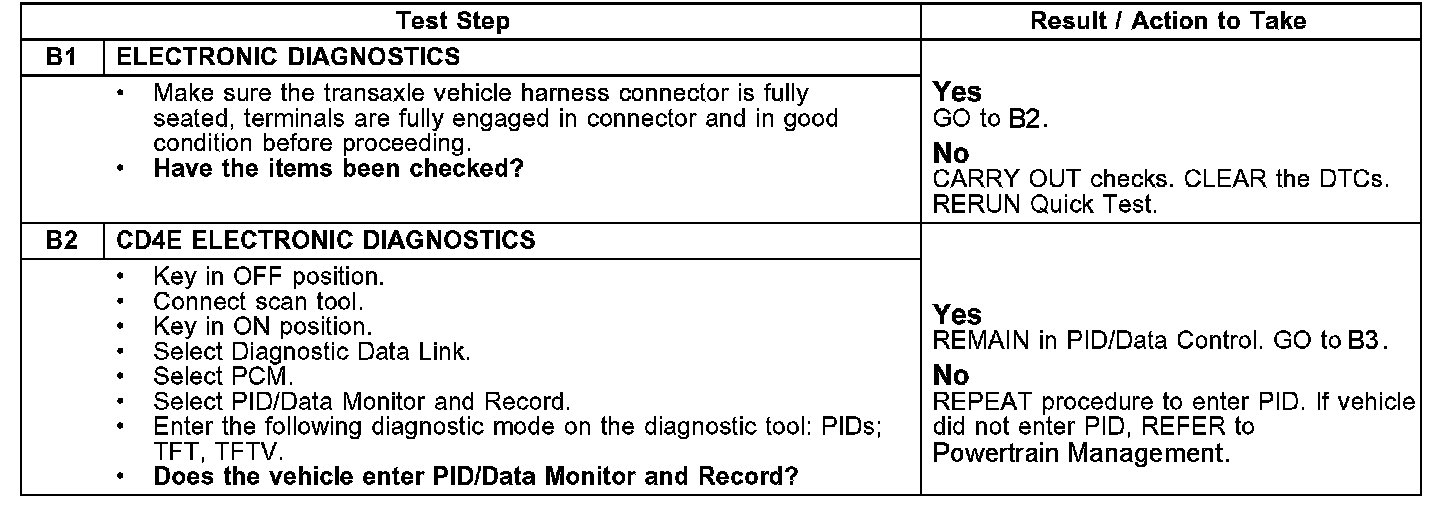

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSORSteps B1 - B2:

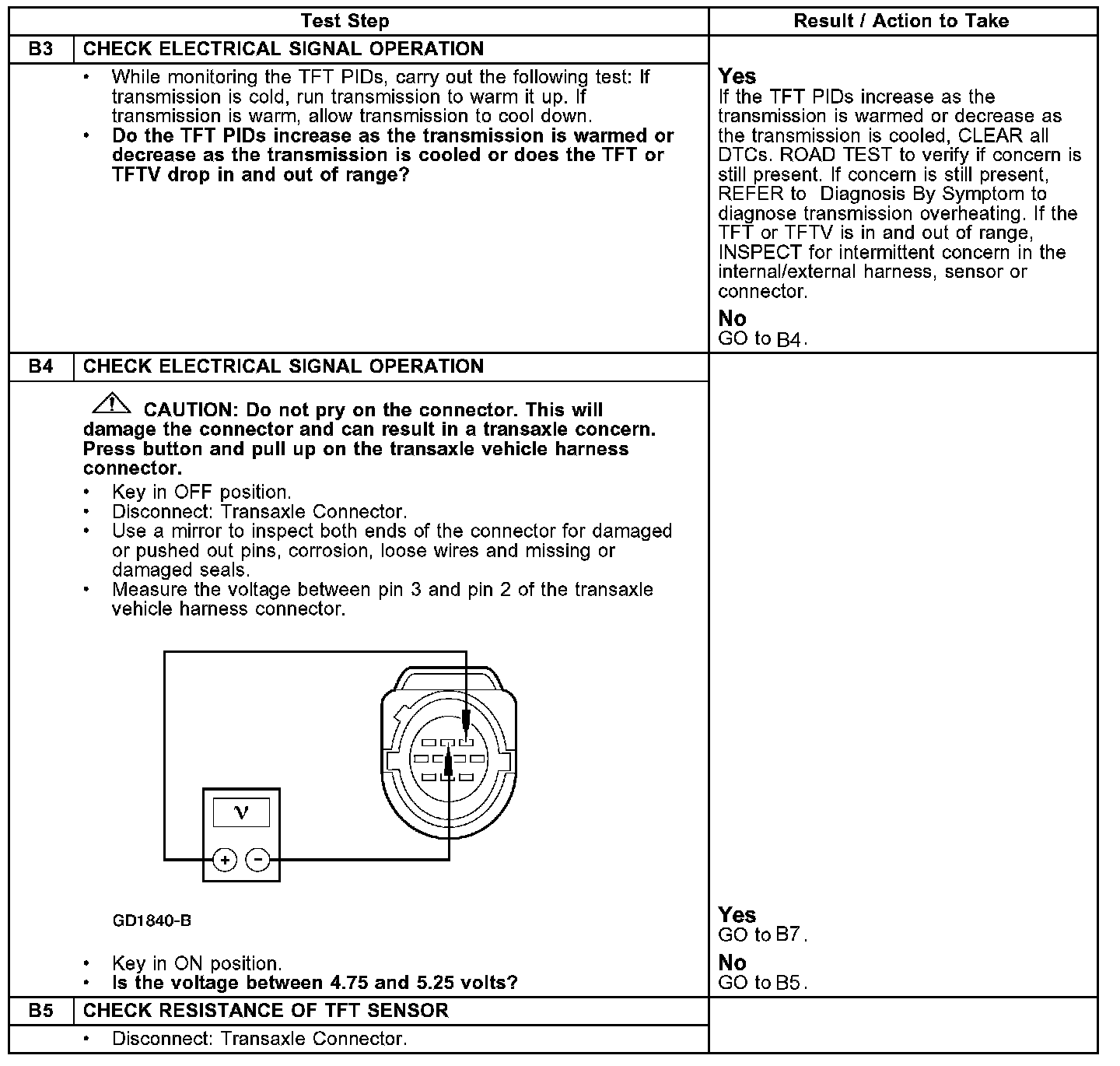

Steps B3 - B5:

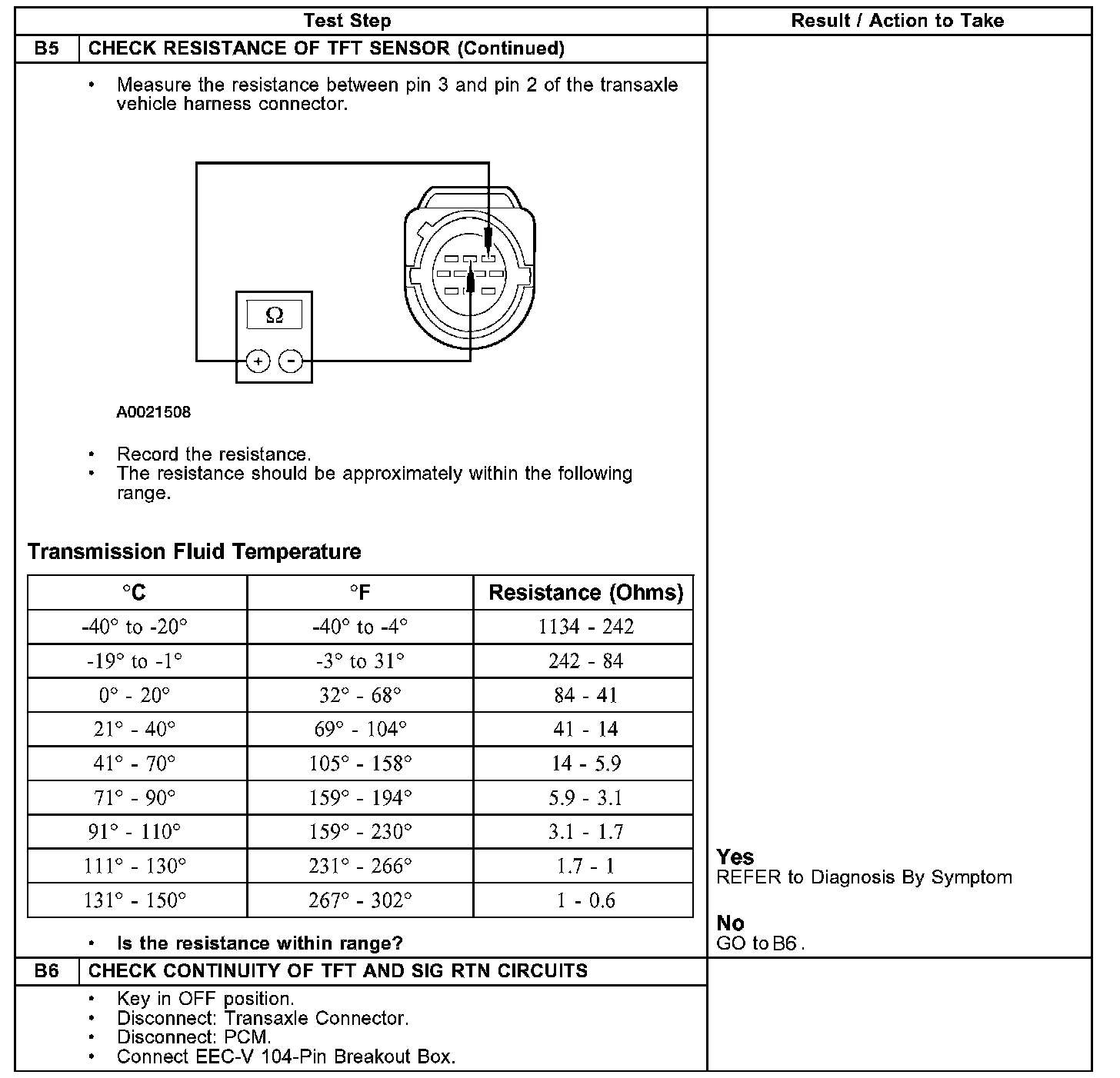

Steps B5 Continued - B6:

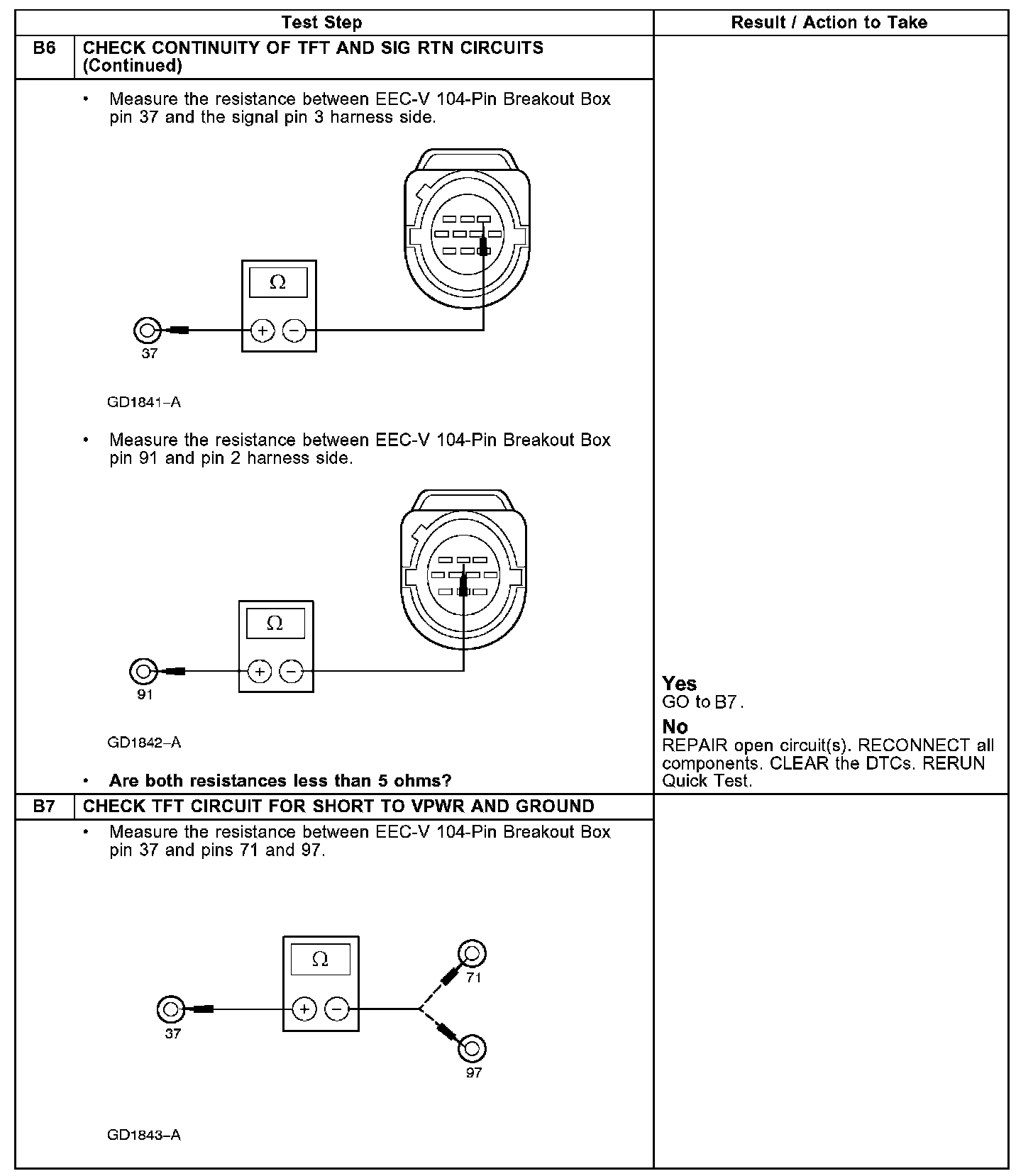

Steps B6 Continued - B7:

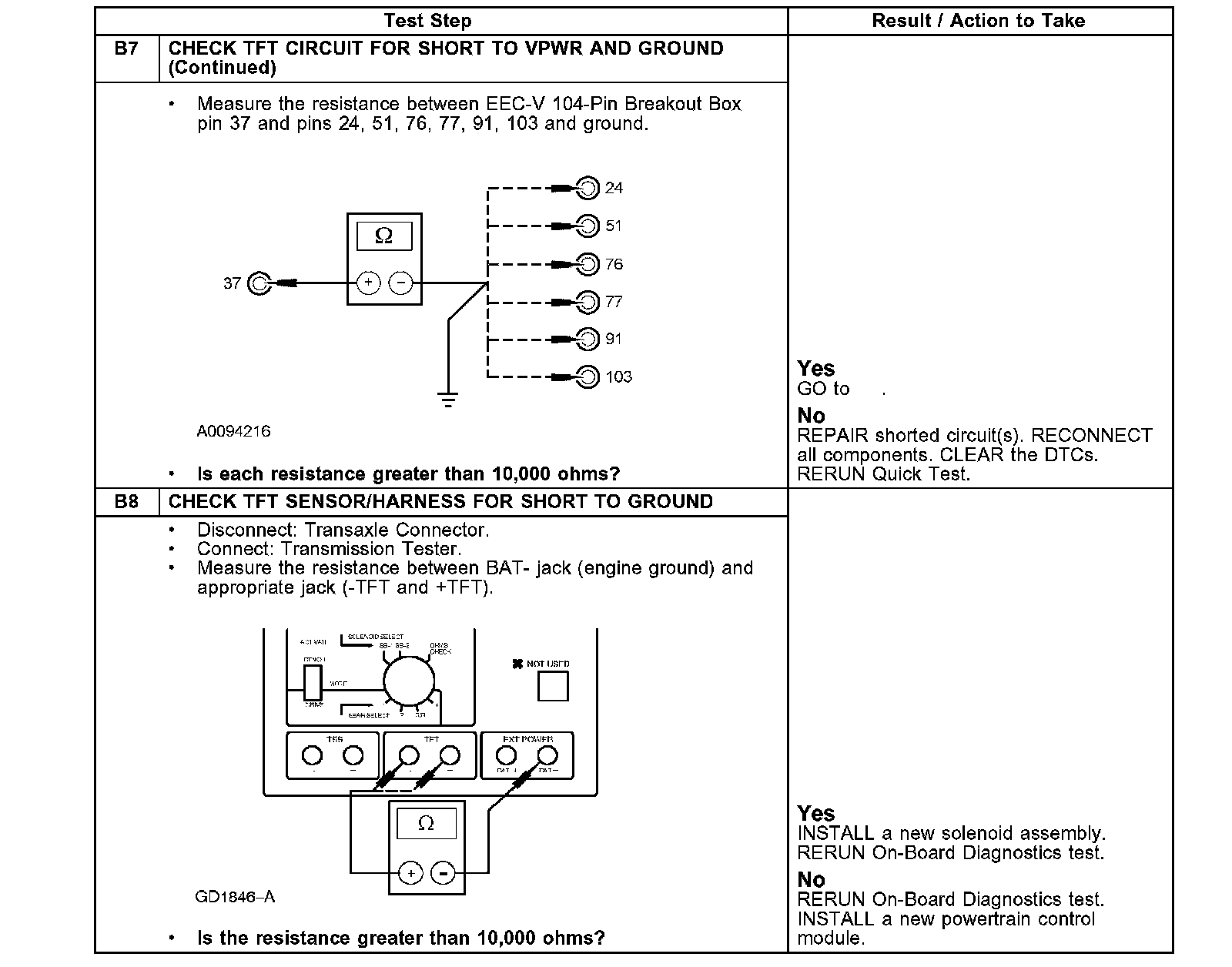

Steps B7 Continued - B8:
NOTE: Refer to the Transaxle Vehicle Harness Connector illustration preceding these pinpoint
