Test F
PINPOINT TEST F: TURBINE SHAFT SPEED (TSS) SENSOR AND OUTPUT SHAFT SPEED (OSS) SENSORStep F1:

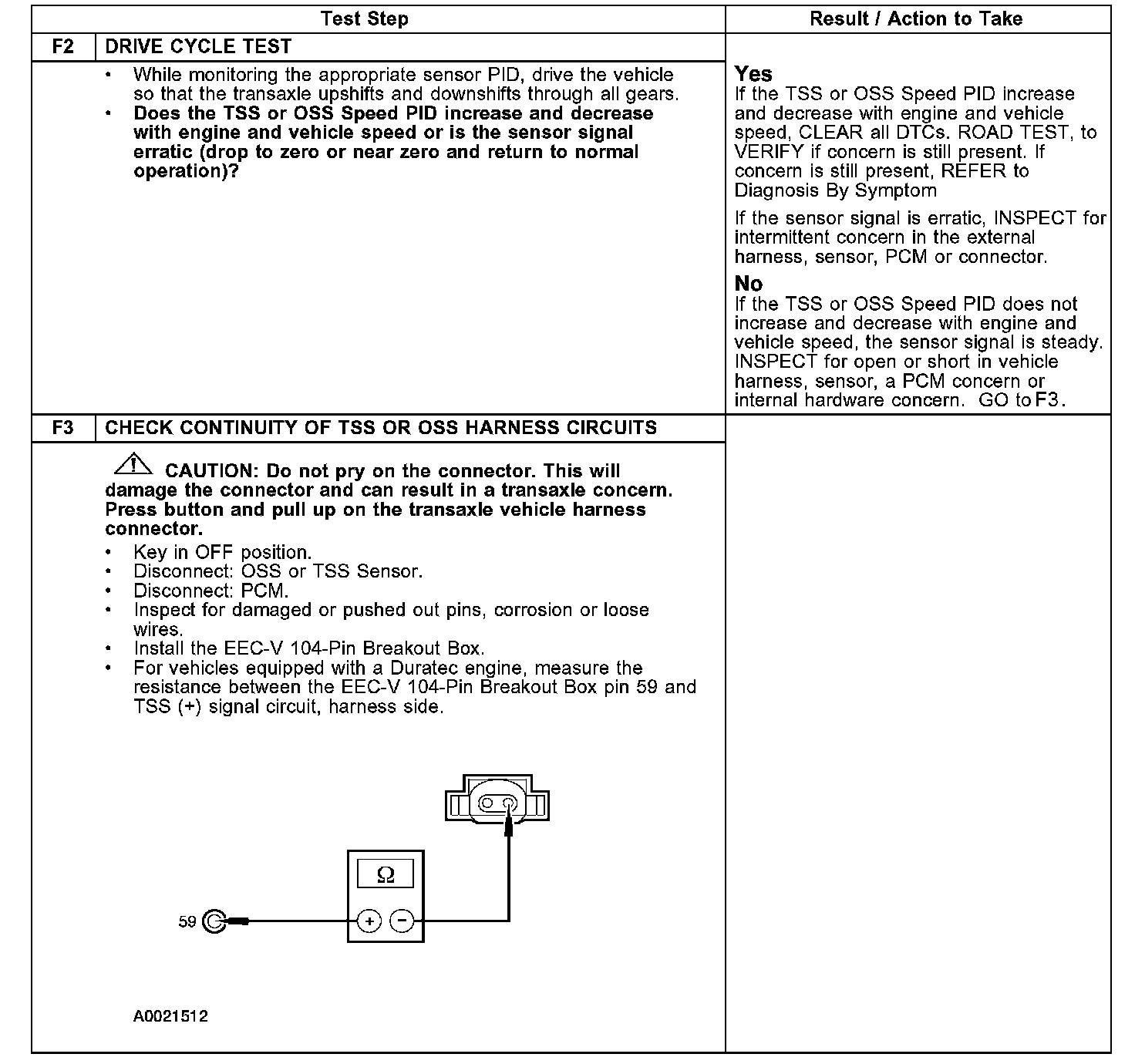

Steps F2 - F3:

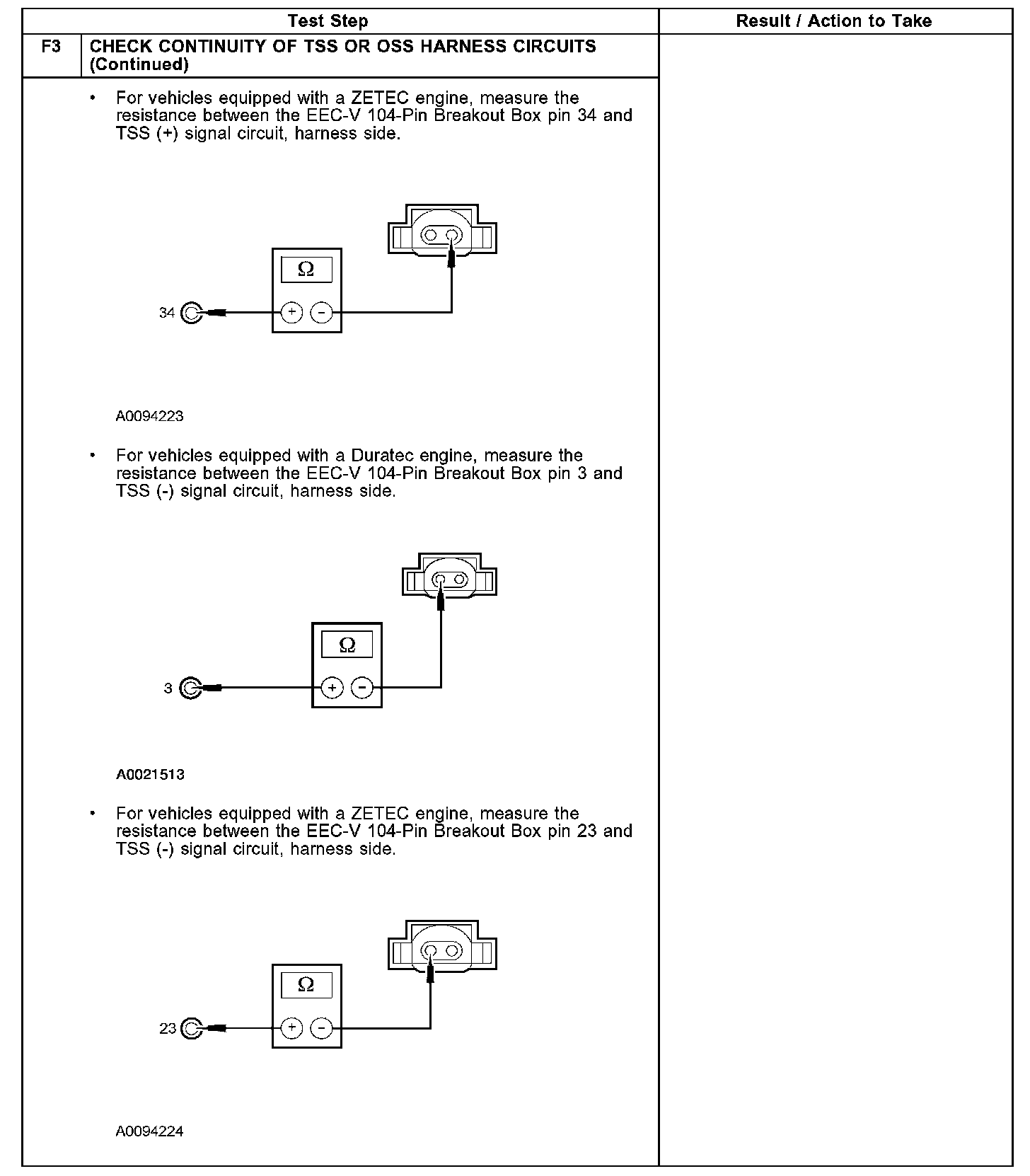

Step F3 Continued:

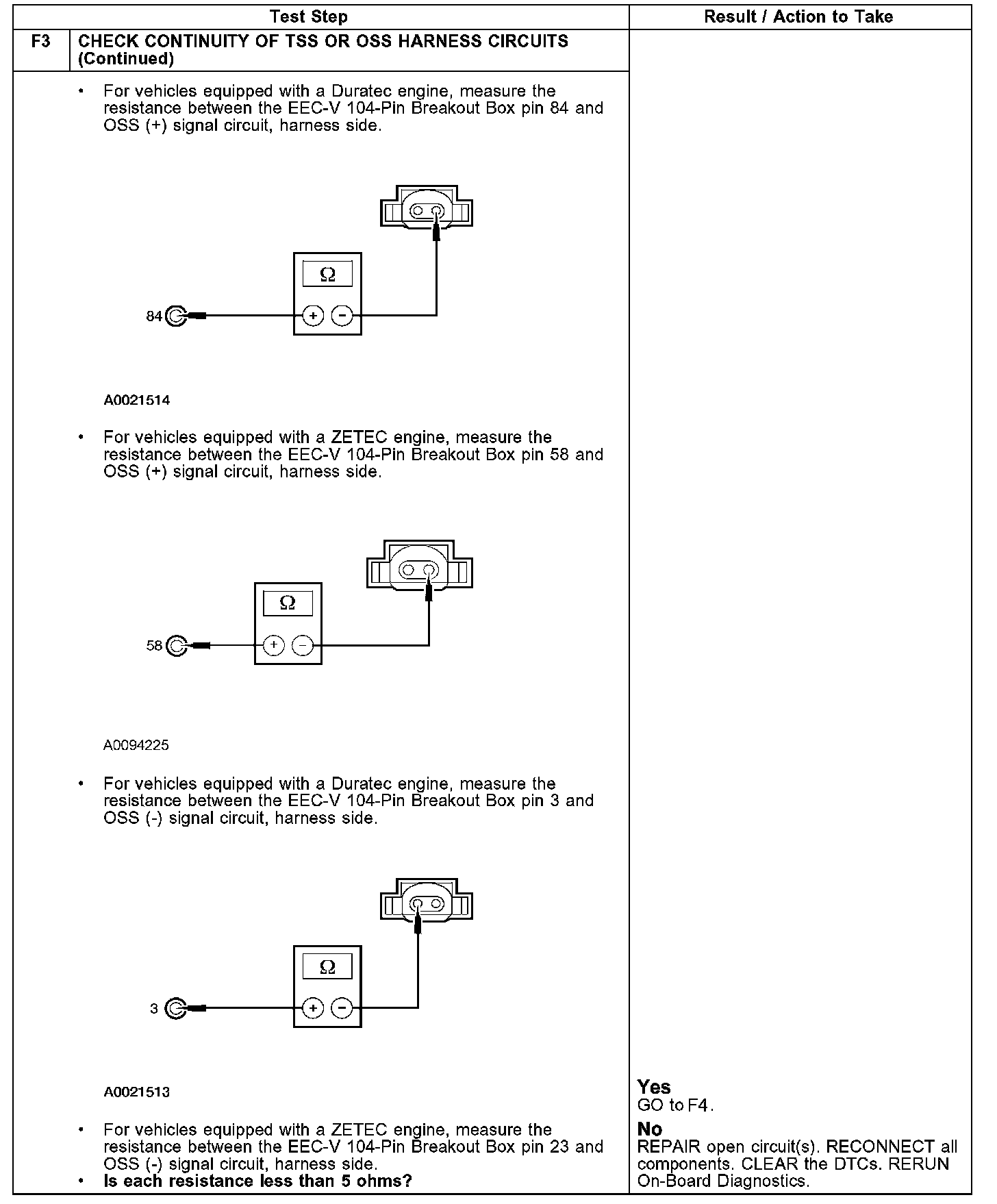

Step F3 Continued:

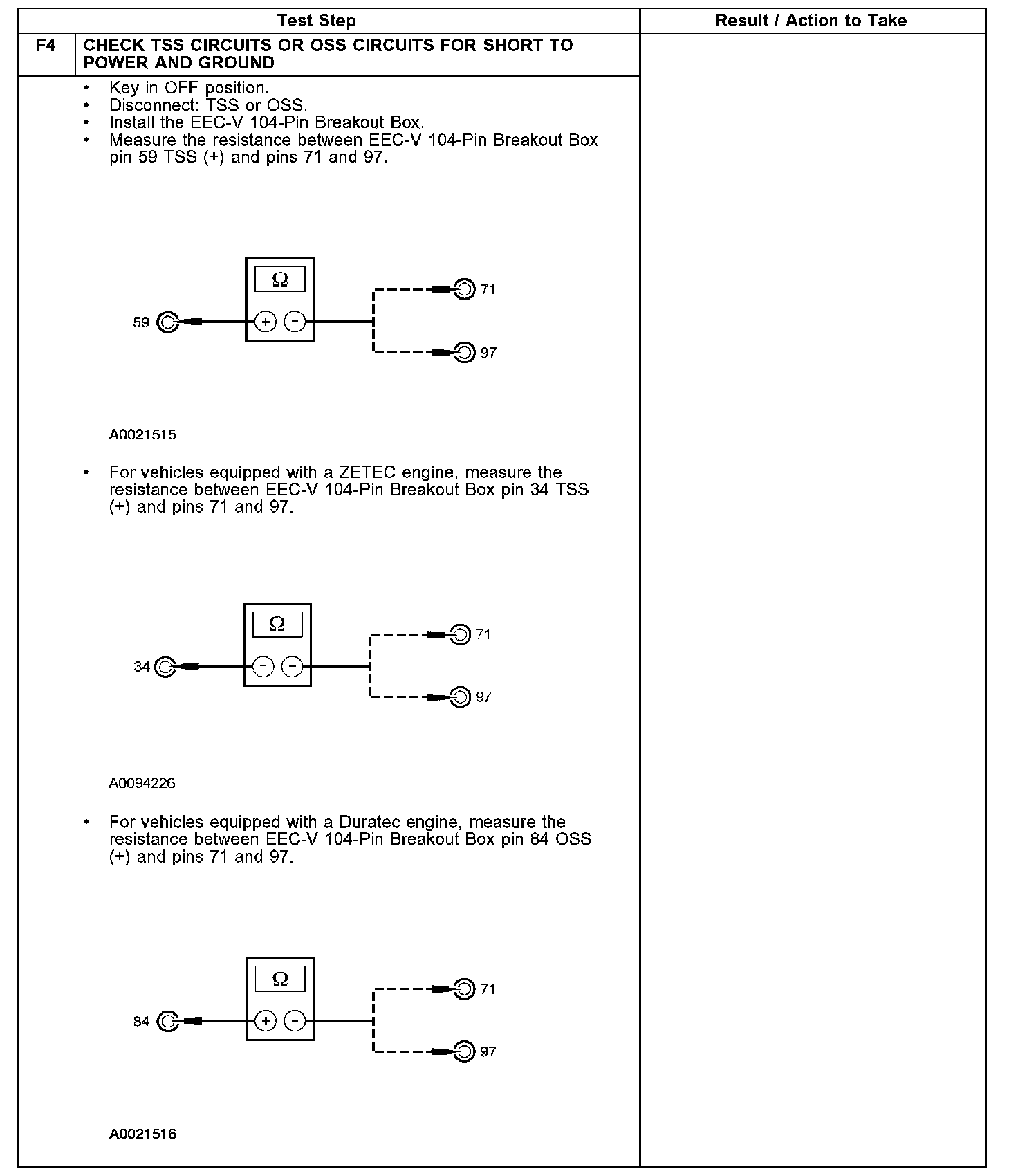

Step F4:

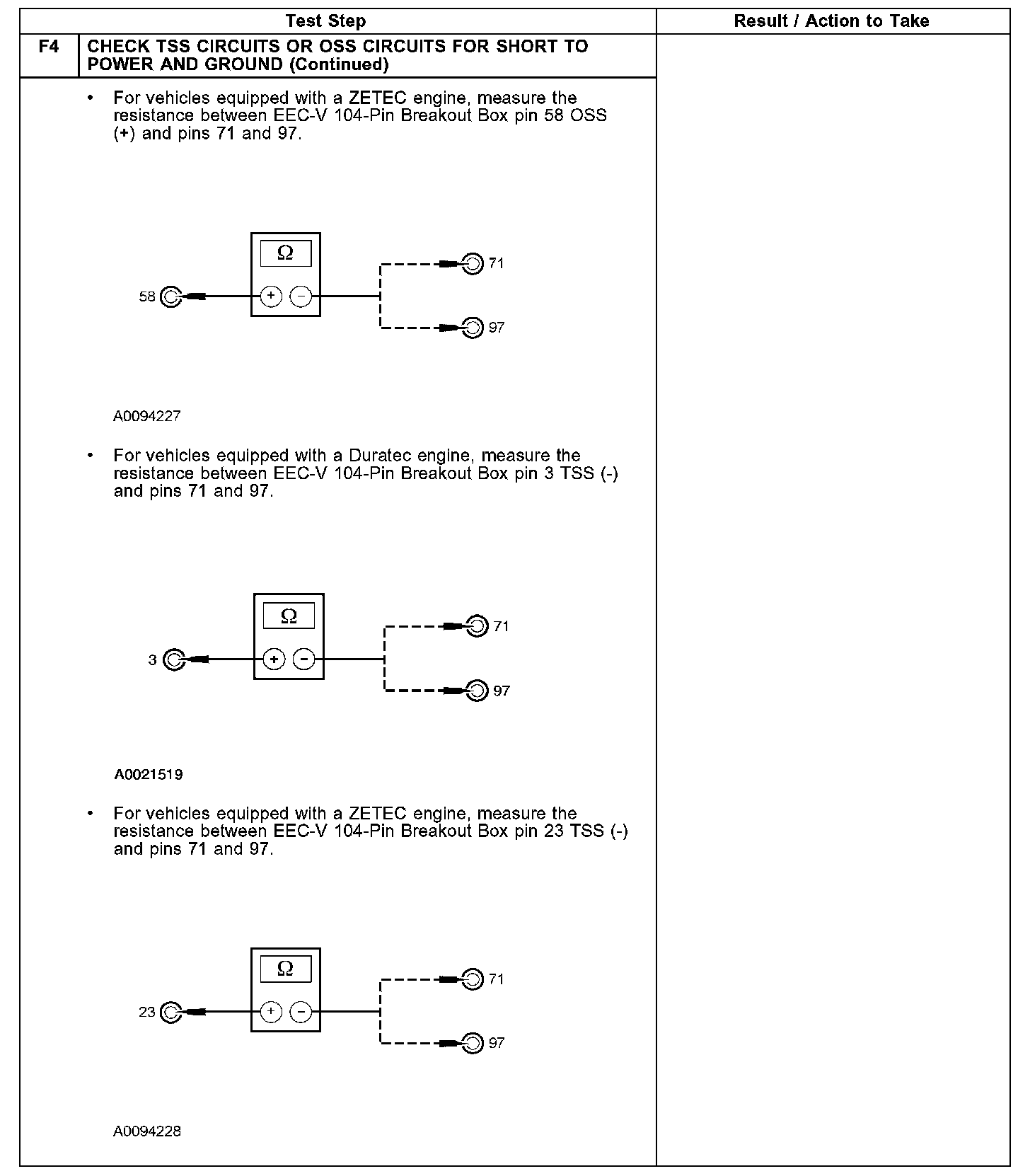

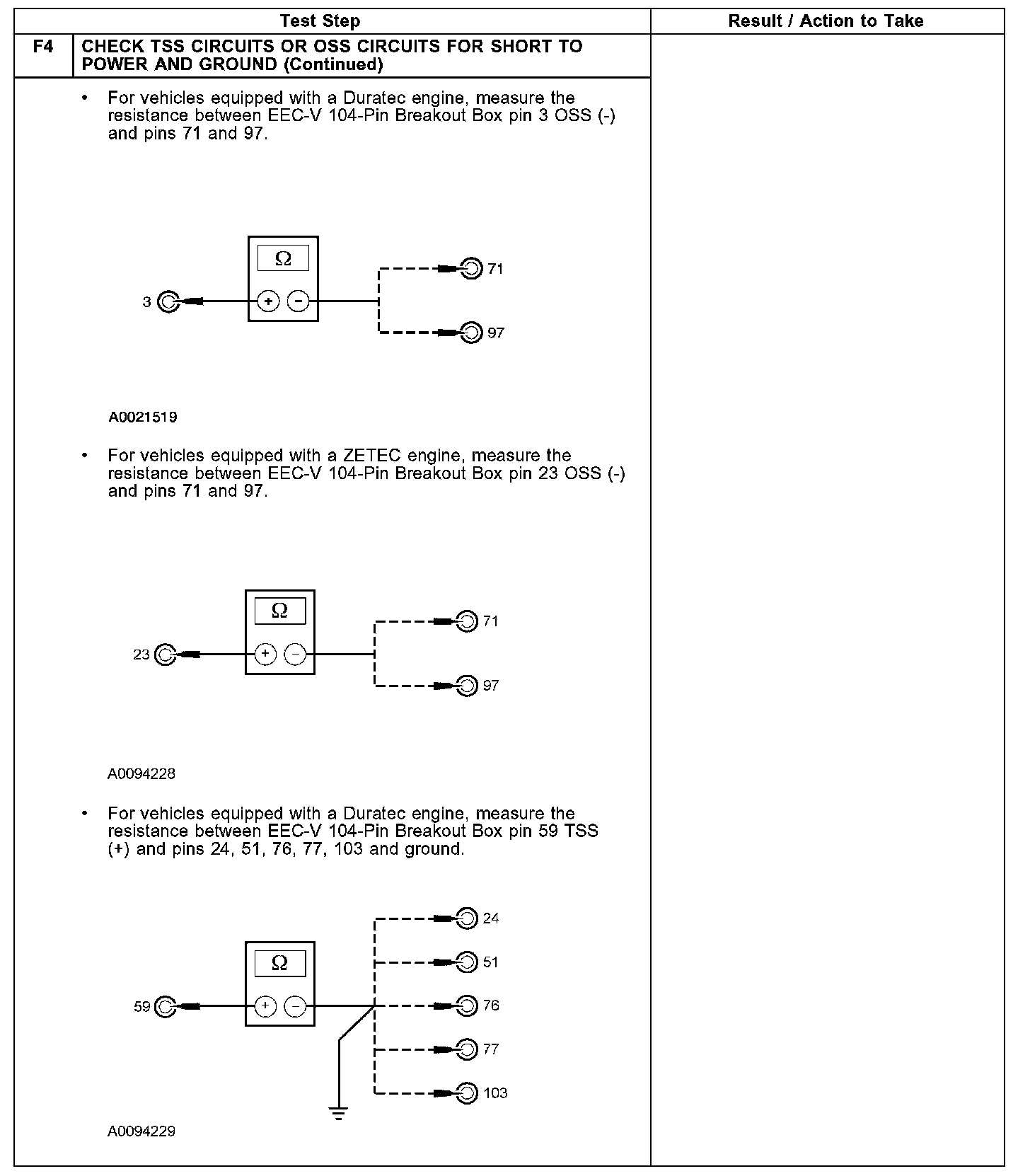

Step F4 Continued:

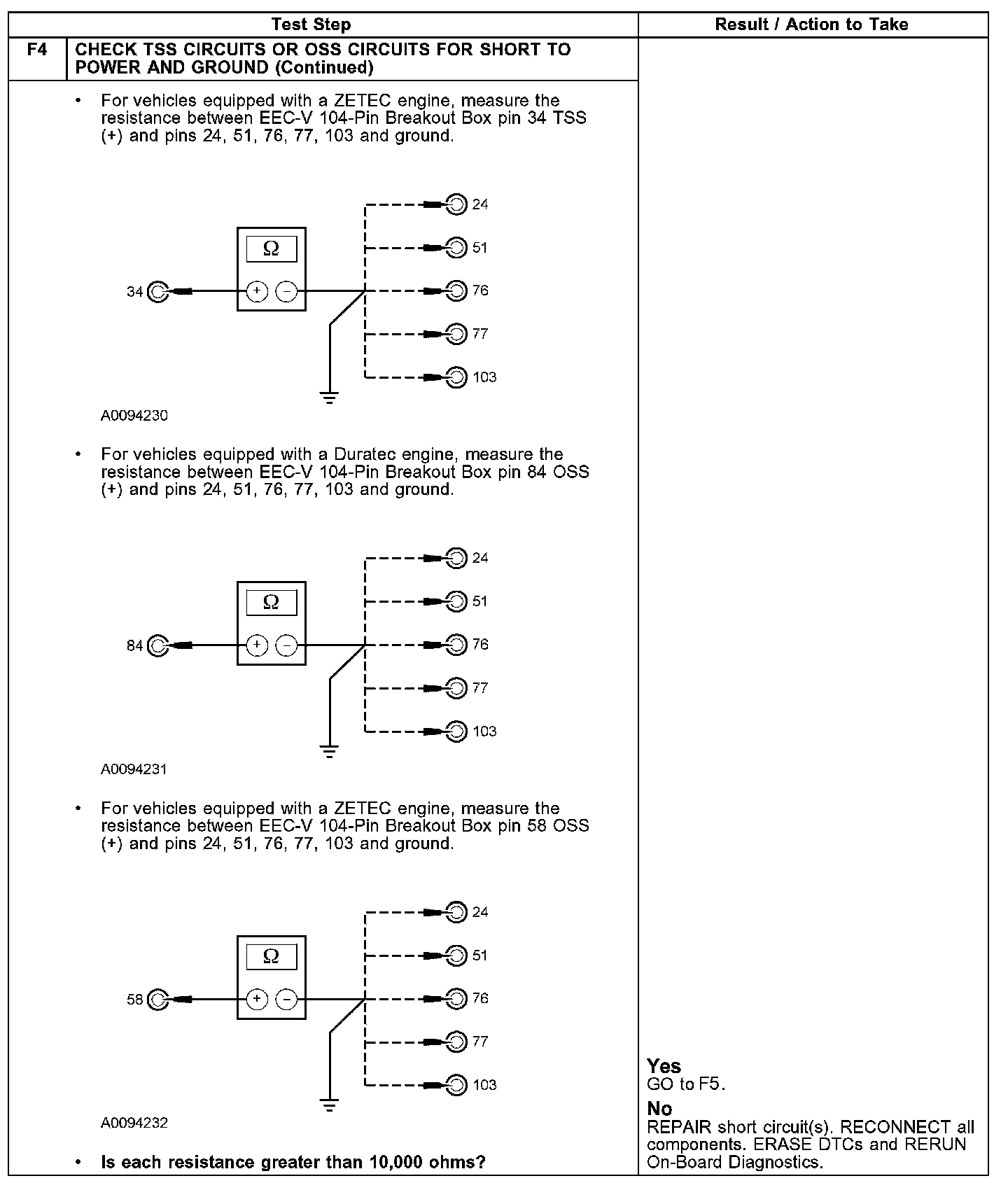

Step F4 Continued:
Step F4 Continued:

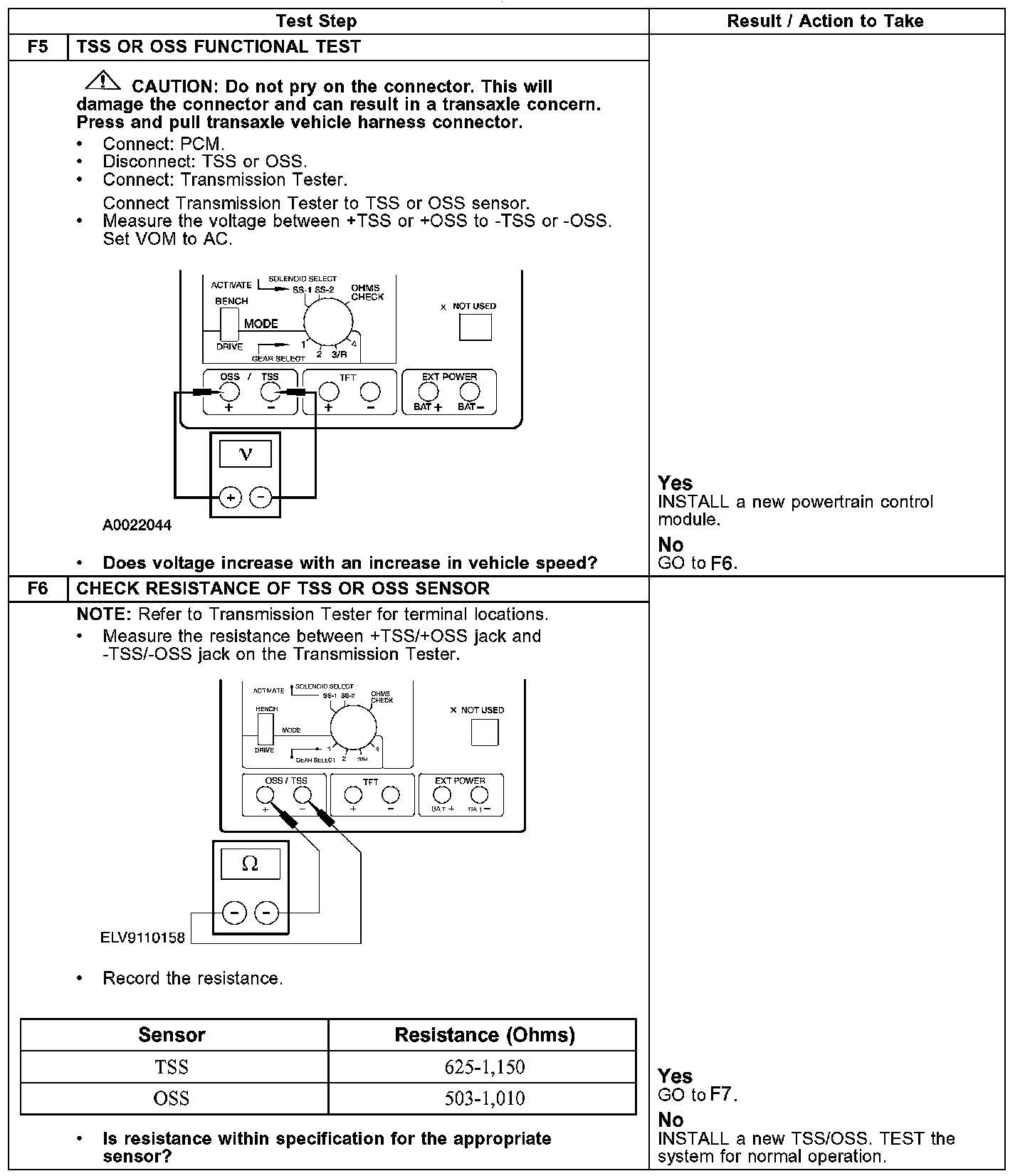

Steps F5 - F6:

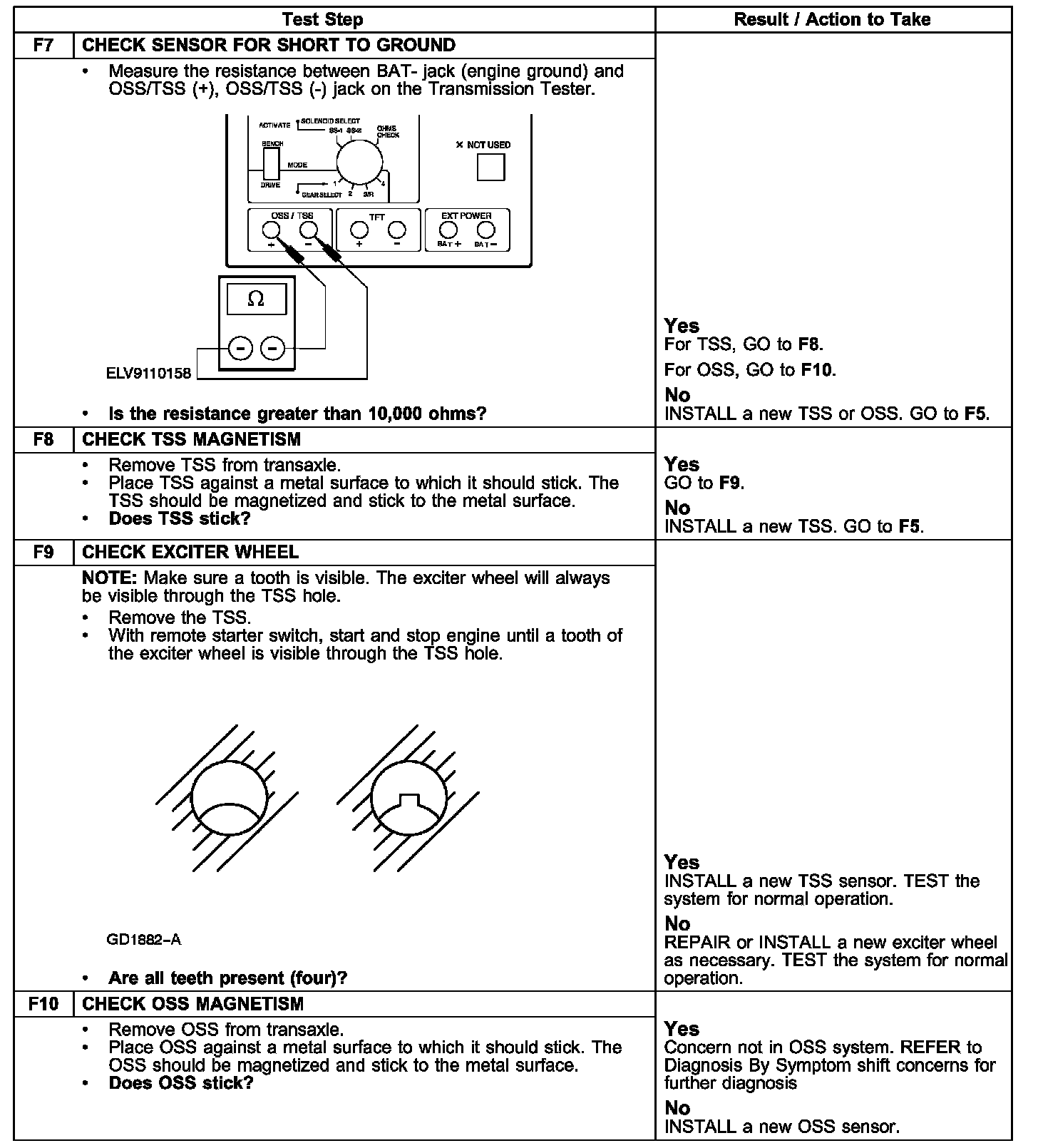

Steps F7 - F10:
NOTE: Refer to the OSS-Sensor or TSS-Sensor Connector illustration preceding these pinpoint tests.
