Backing Plate: Service and Repair
Brake Backing Plate Removal and Installation 1.
Remove the rear
wheel cylinder.
2.
Remove the rear wheel hub.
3.

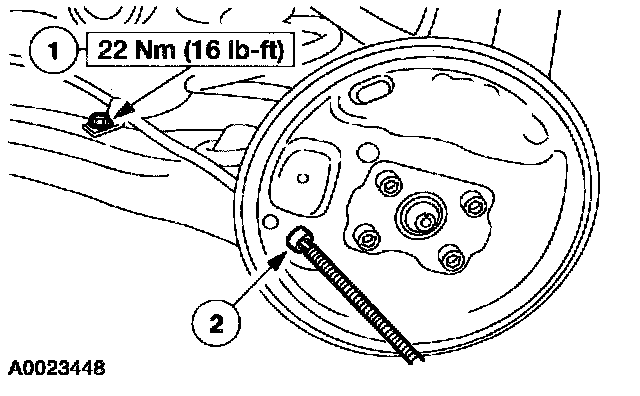

Remove the
parking brake cable from the brake
backing plate.
1
Remove the bolt.
2
Remove the
parking brake cable.
4.

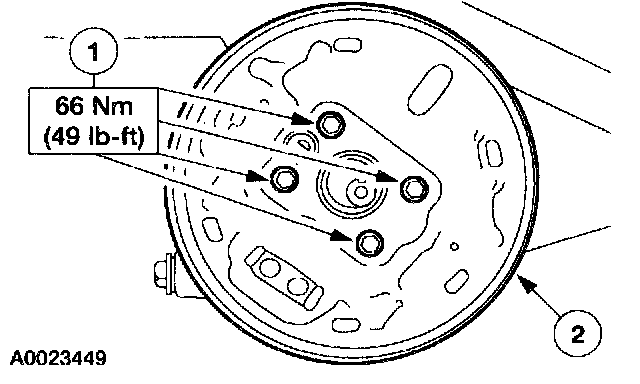

Remove the brake
backing plate.
1
Remove the bolts.
2
Remove the brake
backing plate.
5.
To install, reverse the removal procedure.
