Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL AND SHAFT

REMOVAL

2.0L Zetec







1. Disconnect the accelerator cable from the throttle lever and bracket.

3.0L (4V)







2. Disconnect the crankcase ventilation hose.

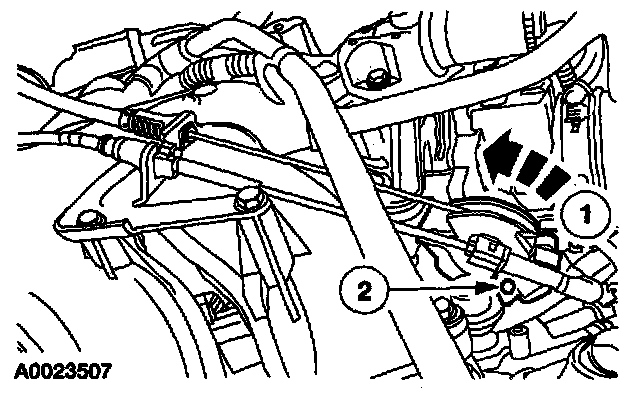

3. Disconnect the accelerator cable from the throttle lever.
1 Rotate the throttle lever.
2 Slide the accelerator cable end out of the throttle lever.

All vehicles







4. Remove the accelerator pedal and shaft assembly.
1 Disconnect the accelerator cable.
2 Remove the bolts.

INSTALLATION

1. NOTE: To ease installation, remove the grommet from the throttle lever and install it onto the accelerator cable end.

To install, reverse the removal procedure.
