Forward Planet Assembly

Forward Planet Assembly

Disassembly and Assembly

NOTE: Individual parts of the planet assemblies are not repairable.





1. Remove the lube slinger.





2. Remove the No. 12 forward clutch thrust bearing.





3. Remove the No. 11 thrust bearing.

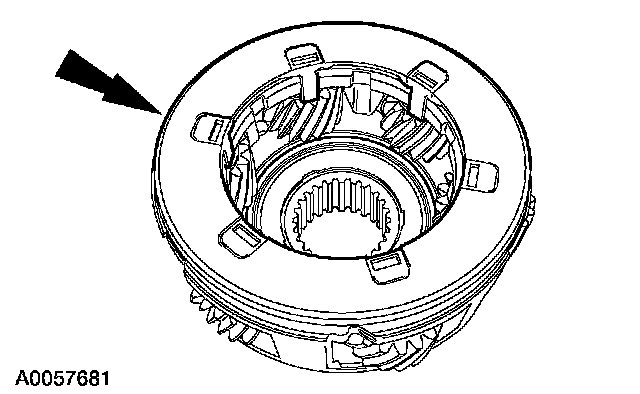

4. Inspect the forward planet assembly.
^ The pins and shafts in the plant assemblies should be checked for loose fit or damage. Use a new planet assembly if either condition exists.
^ Inspect the pinion gears for damaged or excessively worn teeth.
^ Check for free rotation of the pinion gears.
5. To assemble, reverse the disassembly procedure.
^ Lightly lubricate the thrust bearings with petroleum jelly to hold them place during assembly.
^ The No. 12 thrust bearing must be installed with the notched inner race facing outward.
